STS IP54 Prepaid Electricity Meter with 80 A Max Current and IEC 62052-11 Compliance

  • Product Details
  • Company Profile

STS IP54 Prepaid Electricity Meter with 80 A Max Current and IEC 62052-11 Compliance

Factory Priced STS IP54 AMR AMI System Current Loop Communication Prepaid Electricity Meter with CIU

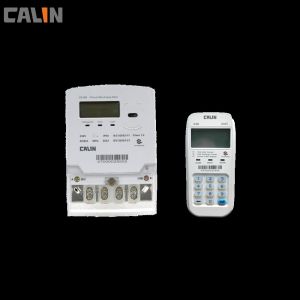

STS prepaid electricity meter front view STS prepaid electricity meter side view
Calin designs and produces cost-efficient prepaid electric meters ideal for AMR/AMI solutions in both residential and industrial applications. Our meters feature robust anti-tamper protection and are available in single-phase configurations, including off-grid solar power compatibility.
Key Benefits
  • Extendable to split type configuration with CIU
  • Current loop communication capability with AMR/AMI server
  • Time of Use (TOU) based consumption recording
  • Supports prepayment, credit mode, and hot swap functionality
Technical Parameters
ParameterSpecification
Nominal voltage Un220V/230V/240V
Limited voltage70%~120%Un
Nominal frequency fn50-60Hz
Basic current(Ib)5A
Maximum current(Imax)80A
Starting current(Ist)0.4% Ib
Active energy constant1000imp/kWh
Accuracy as Active energy to IEC62053‐21Class1.0
Power consumption in Voltage circuit<1W <8VA
Power consumption in current circuit<1VA
Operating temperature-25℃ to +70℃
Storage temperature-40℃ to +85℃
Main Features
  • SRE detection
  • 20 digit STS encryption
  • Tamper detection and record
  • IEC 62052-11 IEC 62053-21 compliant optical port
  • Double CT for Phase and Neutral line
Meter internal components Meter installation diagram Product catalog link Meter display close-up Meter packaging Meter testing process Meter production line Quality control inspection Meter certification documents Meter installation example Meter communication interface Meter technical specifications
Frequently Asked Questions
Q: Are you a trade company or a manufacturer?
A: We are an original meter manufacturer and solution provider, offering comprehensive support.
Q: Do you provide samples for testing, free or extra?
A: Samples are available for a reasonable cost.
Q: What payment terms do you accept?
A: We accept Paypal, West Union, T/T, and L/C. For payments ≤USD2000, 100% in advance. For payments >USD2000, 30% in advance by T/T with balance before shipment.
Q: How long is your delivery time?
A: Typically 5-10 days for stock items, or 15-30 days based on order quantity.
