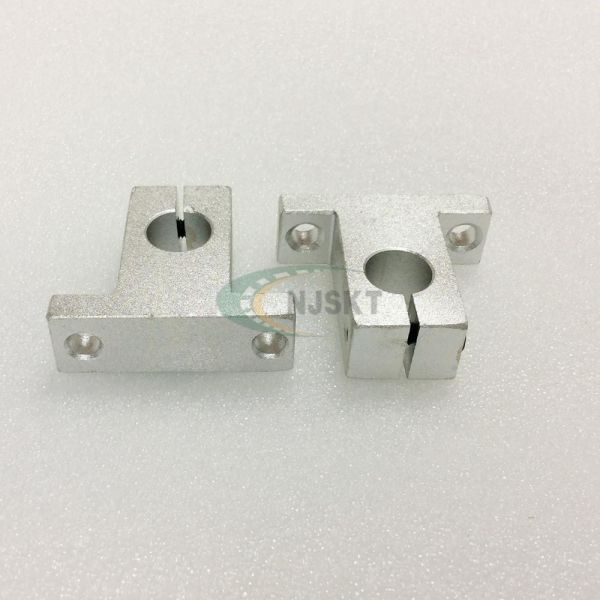

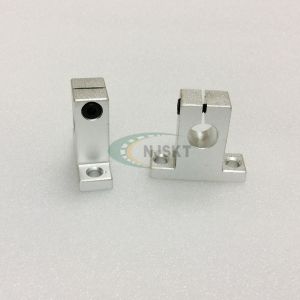

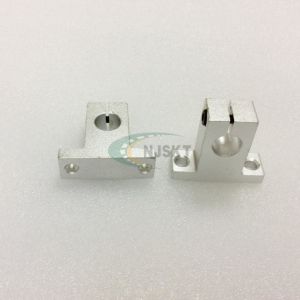

Through Hole SK8 Linear Shaft Supports 8mm Slit LM Shafts

The SK8 Through Hole Linear Shaft Support introduces an innovative T-shaped design that revolutionizes mounting solutions for 8mm motion systems, combining exceptional stability with unparalleled installation flexibility. This unique T-profile creates a versatile support structure that excels in space-constrained applications while maintaining robust load-bearing capabilities. The horizontal crossbar of the T-configuration features a strategically positioned through hole that enables multiple mounting orientations, allowing engineers to adapt the support to various system layouts without compromising structural integrity. The vertical stem of the T-shape provides precise shaft alignment while the slit design ensures secure clamping force distribution along the entire bore length. This distinctive geometry proves particularly valuable in complex automation systems where traditional supports limit design possibilities, offering engineers new configuration options for 8mm linear motion components. The T-shaped through hole design maintains perfect perpendicularity between mounting surface and shaft axis while accommodating different fastening approaches. The balanced proportions of the T-profile effectively resist torsional forces that could affect motion accuracy in precision equipment. This support solution demonstrates how thoughtful geometric design can enhance both the mechanical performance and installation versatility of linear motion components, providing system designers with creative mounting possibilities for 8mm shafts in robotics, optical systems, and compact automation applications where space optimization matters.

② Features of linear shaft supports

Feature 1: Tool-Free Slit Design
The innovative slit design of the shaft supports enables quick, tool-free installation and secure connection to shafts without causing surface damage or compromising structural integrity, ensuring hassle-free assembly and disassembly.

Feature 2: Cost-Efficient Aluminum Extrusion Manufacturing
The economy series shaft supports utilize advanced aluminum extrusion technology, offering a lightweight yet durable solution at a significantly reduced cost. While precision is marginally lower compared to fully machined alternatives, this series maintains sufficient accuracy to meet the functional requirements of most applications, delivering exceptional value for budget-conscious projects.

Feature 3: Fine-Adjustment Through-Hole Tolerance
The precision-engineered clearance in the installation through-hole allows for on-site micro-adjustments, enabling users to achieve optimal shaft alignment and positioning during final assembly. This feature eliminates the need for additional components, streamlining setup in dynamic operational environments.

Feature 4: Standardized Stock Availability
Available in inner diameters ranging from 6mm to 60mm (exact specifications provided in the product catalog), the economy series shaft supports are maintained as standardized stock items. This ensures rapid order fulfillment with same-day shipping capabilities, minimizing downtime and accelerating project timelines for time-sensitive applications.This combination of user-centric design, affordability, adaptability, and rapid availability positions these shaft supports as a versatile solution for both industrial and commercial linear motion systems.
