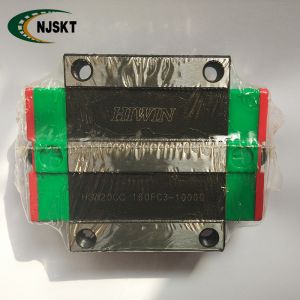

①HIWIN HGW20CC Linear Guideway 20mm Heavy Linear Guide Rail 3000mm
Representing HIWIN’s legacy of precision engineering from Taiwan,
the HGW20CC 20mm Linear Guideway redefines reliability for
heavy-duty industrial applications requiring extended travel
lengths up to 3000mm. This robust linear rail system integrates
HIWIN’s innovative motion technology to deliver seamless
performance in large-scale automation, CNC systems, and precision
manufacturing equipment.
The HGW20CC incorporates HIWIN’s advanced dynamic load optimization
technology, ensuring consistent smoothness and accuracy across its
entire length—critical for long-span positioning tasks. Its
reinforced architecture features HIWIN’s proprietary
anti-deflection design, maintaining rigidity and alignment even
under substantial loads. The guideway’s precision-machined
components and integrated sealing solutions exemplify HIWIN’s
commitment to durability in challenging industrial environments.
Ideal for gantry systems, large-format machining, and automated
production lines, this guideway reflects HIWIN’s expertise in
balancing scale with precision. The thermal-stable construction and
maintenance-friendly design ensure uninterrupted operation, while
the corrosion-resistant treatment extends service life—qualities
synonymous with the HIWIN brand.
Backed by HIWIN’s global technical network, the HGW20CC offers
engineers a trusted solution for applications where extended reach
and unwavering precision converge.
②Drawing of HGW20CC
③Model Number of HG Series
④Construction of HG Series
1.Rolling circulation system: Block, rail, end cap and retainer
2.Lubrication system: Grease nipple and piping joint
3.Dust protection system: End seal, bottom seal,bolt cap, double seals and scraper.
