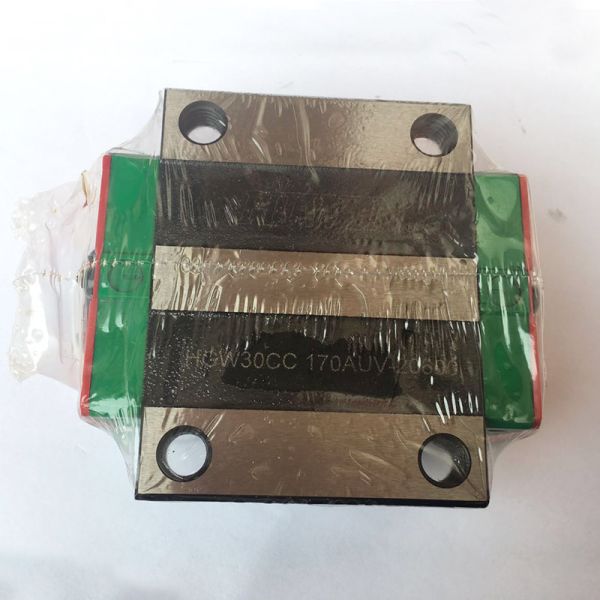

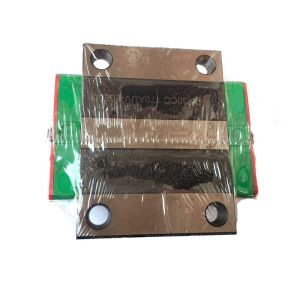

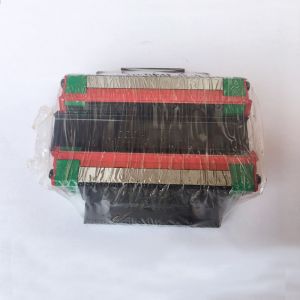

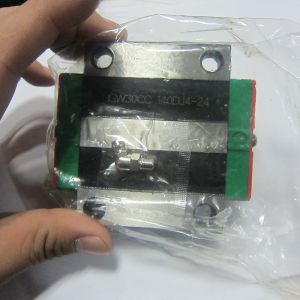

①HIWIN HGW30HC Linear Guideway Block ZA Preload Guide Bearing
Engineered to excel in the dynamic world of precision turning, the
HIWIN HGW30HC Linear Guideway with ZA Preload redefines motion
control for next-generation lathes. This advanced guide bearing
system incorporates HIWIN's specialized knowledge of rotational
machining to deliver unmatched stability for complex turning
operations, from delicate finishing to heavy interrupted cuts.
The HGW30HC features HIWIN's innovative rotational harmonics
dampening technology, specifically developed to neutralize the
unique vibration patterns generated in lathe applications. Its
precision preload system maintains consistent bearing contact
pressure, eliminating play while adapting to varying radial forces
during facing and taper turning operations.
Designed for sliding bed and precision tool-room lathes, this
guideway incorporates HIWIN's swarf-deflecting labyrinth seals,
which actively redirect chips away from critical surfaces while
maintaining optimal lubrication. The hardened contact surfaces
utilize a directional wear-resistant matrix that outperforms in the
abrasive environment of continuous turning.
Trusted by premium lathe manufacturers, the HGW30HC with ZA preload
represents HIWIN's dedication to turning technology – where
circular precision meets linear motion excellence for superior
surface finishes and dimensional accuracy.
②Drawing of HGW30HC
③Model Number of HG Series
④Construction of HG Series
1.Rolling circulation system: Block, rail, end cap and retainer
2.Lubrication system: Grease nipple and piping joint
3.Dust protection system: End seal, bottom seal,bolt cap, double seals and scraper.
