Automatic Pneumatic Conveying Bin Pump – Silo-Type Pneumatic Conveying Pumphigh Solids-Gas Ratio Powder Transfer

    Buy cheap Automatic Pneumatic Conveying Bin Pump – Silo-Type Pneumatic Conveying Pumphigh Solids-Gas Ratio Powder Transfer from wholesalers

    Buy cheap Automatic Pneumatic Conveying Bin Pump – Silo-Type Pneumatic Conveying Pumphigh Solids-Gas Ratio Powder Transfer from wholesalers
    • Buy cheap Automatic Pneumatic Conveying Bin Pump – Silo-Type Pneumatic Conveying Pumphigh Solids-Gas Ratio Powder Transfer from wholesalers

    Automatic Pneumatic Conveying Bin Pump – Silo-Type Pneumatic Conveying Pumphigh Solids-Gas Ratio Powder Transfer

    Ask Lasest Price
    Brand Name : Hengcheng
    Model Number : PCD08/M, PCD10/M, PCD12/M, PCD14/M,PCD18/N,PCD20/N,PCD22/N,PCD24/H PCD26/H PCD28/H PCD30/H
    Certification : ISO CE
    Price : Negotiable
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram
    Supply Ability : 5 sets\month
    Delivery Time : 120 days
    • Product Details
    • Company Profile

    Automatic Pneumatic Conveying Bin Pump – Silo-Type Pneumatic Conveying Pumphigh Solids-Gas Ratio Powder Transfer

    Product Overview
    Industry-Specific Conveying Solutions
    We engineer our dense phase pneumatic conveying systems to address the unique material handling challenges in your industry:
    • Power Generation: Solve abrasive fly ash handling with our low-velocity systems that dramatically reduce pipeline wear and maintenance costs in coal-fired plants.
    • Cement Production: Transport raw meal, finished cement, and mineral powders without particle degradation, ensuring optimal product quality from kiln to silo.
    • Chemical Processing: Safely convey diverse materials – from fertilizers to polymer resins – in completely enclosed systems that prevent contamination and ensure operator safety.
    • Food & Grain Processing: Preserve product integrity when handling delicate food products like flour, starch, and whole grains through our gentle, low-impact conveying technology.
    • Building Materials: Efficiently move gypsum powder, silica sand, and lime with minimal dust generation and material separation, creating cleaner and more consistent production processes.

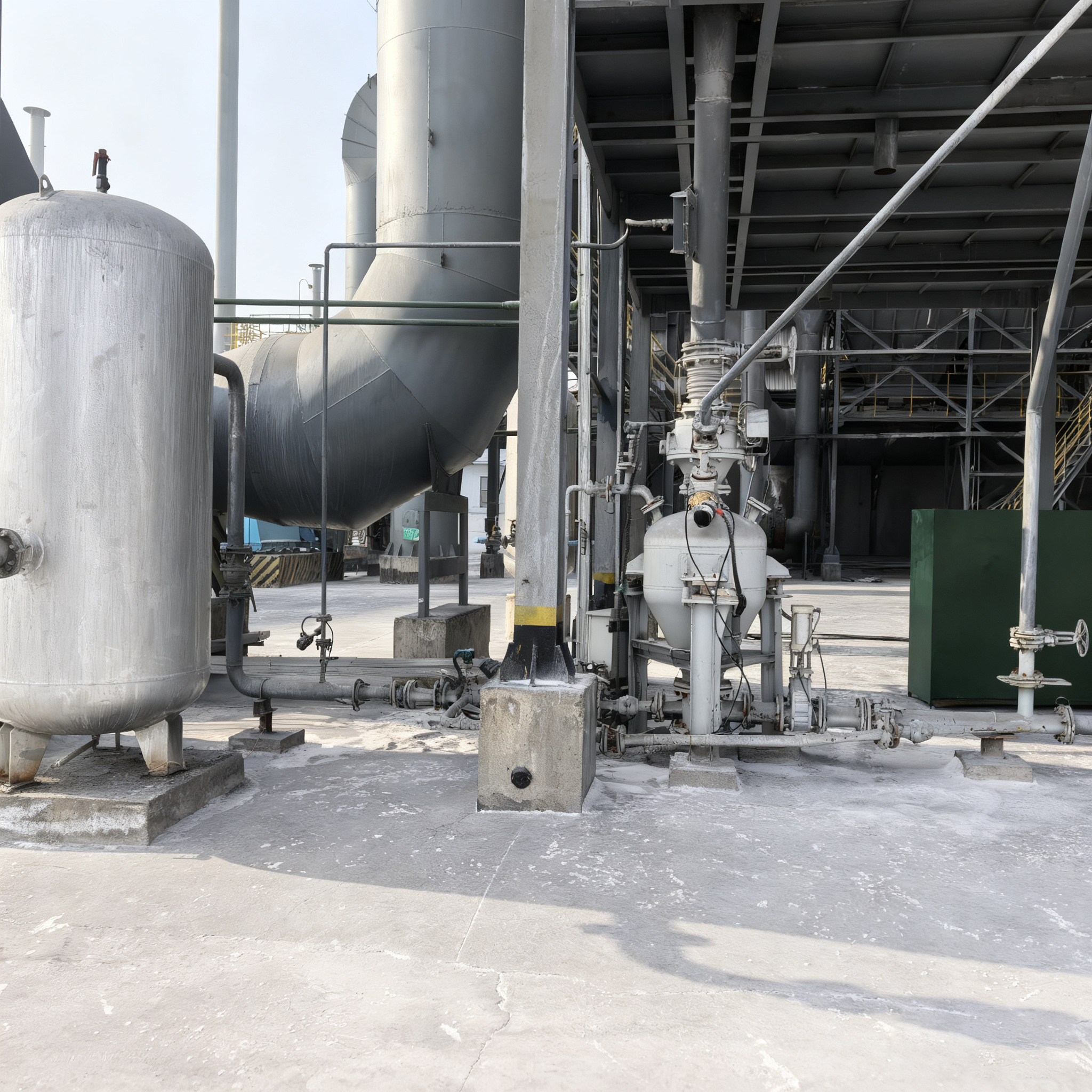

    Industrial dense phase conveying pump system in operation

    Designed for Lower TCO and Operational Excellence

    Our dense phase conveying systems are engineered to deliver measurable financial and operational returns:

    Directly Reduce Operating Costs: Achieve 20-40% lower energy consumption compared to mechanical conveyors, translating into significantly lower utility bills and a reduced carbon footprint.
    Eliminate Dust and Ensure Compliance: A hermetically sealed system contains material entirely, creating a safer, cleaner work environment and guaranteeing adherence to the strictest international environmental standards.
    Slash Maintenance and Downtime: With no internal mechanical moving parts subject to wear, we drastically reduce the need for spare parts, maintenance labor, and unplanned production stops.
    Conquer Space and Layout Challenges: The flexible pipeline can be routed over, under, and around existing equipment, eliminating the need for costly structural modifications and maximizing space utilization in brownfield projects.

    Large Capacity Pneumatic Conveying Bin Pump Parameter Table

    Conveying MaterialBulk Density (t/m³)ModelPCD24/HPCD26/HPCD28/HPCD30/HConveying Distance
    Specification16~20m318~22m320~27m326~32m3Level (m)Level (m)
    Pulverized Coal0.5Delivery Volume (t/h)50~8060~9065~11080~13020020
    Fly Ash0.7575~12585~13095~160125~19020020
    Limestone Powder/Mineral Powder0.880~13090~140100~170130~20020020
    Cement/Raw Meal1100~150115~175130~215165~26020020


    Long-distance Pneumatic Conveying Bin Pump Parameter Table

    Conveying MaterialBulk Density (t/m3)ModelPCD24/LPCD26/LPCD28/LPCD30/LConveying Distance
    Specification16~20m318~22m320~27m326~32m3Level (m)Level (m)
    Pulverized Coal0.5Delivery Volume (t/h)20~4025~4530~5545~65100025
    Fly Ash0.7535~6045~6545~8065~95100025
    Limestone Powder/Mineral Powder0.840~6545~7050~8570~100100025
    Cement/Raw Meal150~8055~9065~11090~120100025

    Conventional Grid Pneumatic Conveying Bin Pump Parameter Table

    Conveying MaterialBulk Density(t/)ModelPCD18/NPCD20/NPCD20/NReference Conveying Distance
    Specification5.0~6.7m³7.0~10.0m³10.0~15.0m³Level (m)Vertical (m)
    Pulverized Coal0.5Delivery Volume (t/h)12~2016~3225~5050030
    Fly Ash0.7518~3225~4835~7050
    Limestone Powder/Mineral Powder0.820~3526~5138~7550030
    Cement/Raw Meal1.024~4232~6548~9550030
    Silicon Powder1.228~5040~7555~11550030

    Parameter Table Of Small Size Pneumatic Conveying Bunker Pump

    MaterialBulk Density(t/)ModelPCD08/MPCD10/MPCD12/MPCD14/MReference Conveying Distance
    Specification0.2~0.5m³0.6~1.6m³1.5~2.5m³2.5~5.0m³Level (m)Vertical (m)
    Pulverized Coal0.5Delivery Volume (t/h)0.5~1.81.5~5.55.0~9.08.0~18.010020
    Fly Ash0.750.9~2.82.5~8.57.0~14.012.0~27.010020
    Limestone Powder/Mineral Powder0.81.0~3.03.0~9.08.0~15.012.0~28.010020
    Cement/Raw Meal1.01.2~3.53.5~11.510.0~18.016.0~36.010020
    Silicon Powder1.21.5~4.04.5~13.512.0~20.019.0~43.010020

    Compact pneumatic conveying pump unit

    Comprehensive Global Support Network

    Our commitment to your operation extends long after installation. We provide a complete suite of services to ensure maximum uptime and performance, wherever you are located.

    • 24/7 Remote Support & Monitoring
      Get instant assistance with real-time fault diagnosis via phone, email, or video call. We also offer remote monitoring of your system's operational data for proactive support and on-demand online training modules for your team.

    • Expert On-Site Assistance
      From professional supervision during installation and commissioning to scheduled preventive maintenance visits, we ensure optimal system performance. Our 24/7 emergency response team is on standby to resolve critical issues and minimize production downtime.

    • Global Spare Parts & Performance Upgrades
      Benefit from our worldwide network of spare parts depots for fast delivery. We also provide wear parts customized to your specific material and offer system upgrades to enhance throughput or expand capacity.

    • Hands-On Operational Training
      We conduct extensive on-site training for your operators and maintenance personnel, covering everything from daily procedures and safety protocols to advanced troubleshooting techniques.

    Technicians performing maintenance on pneumatic conveying system
