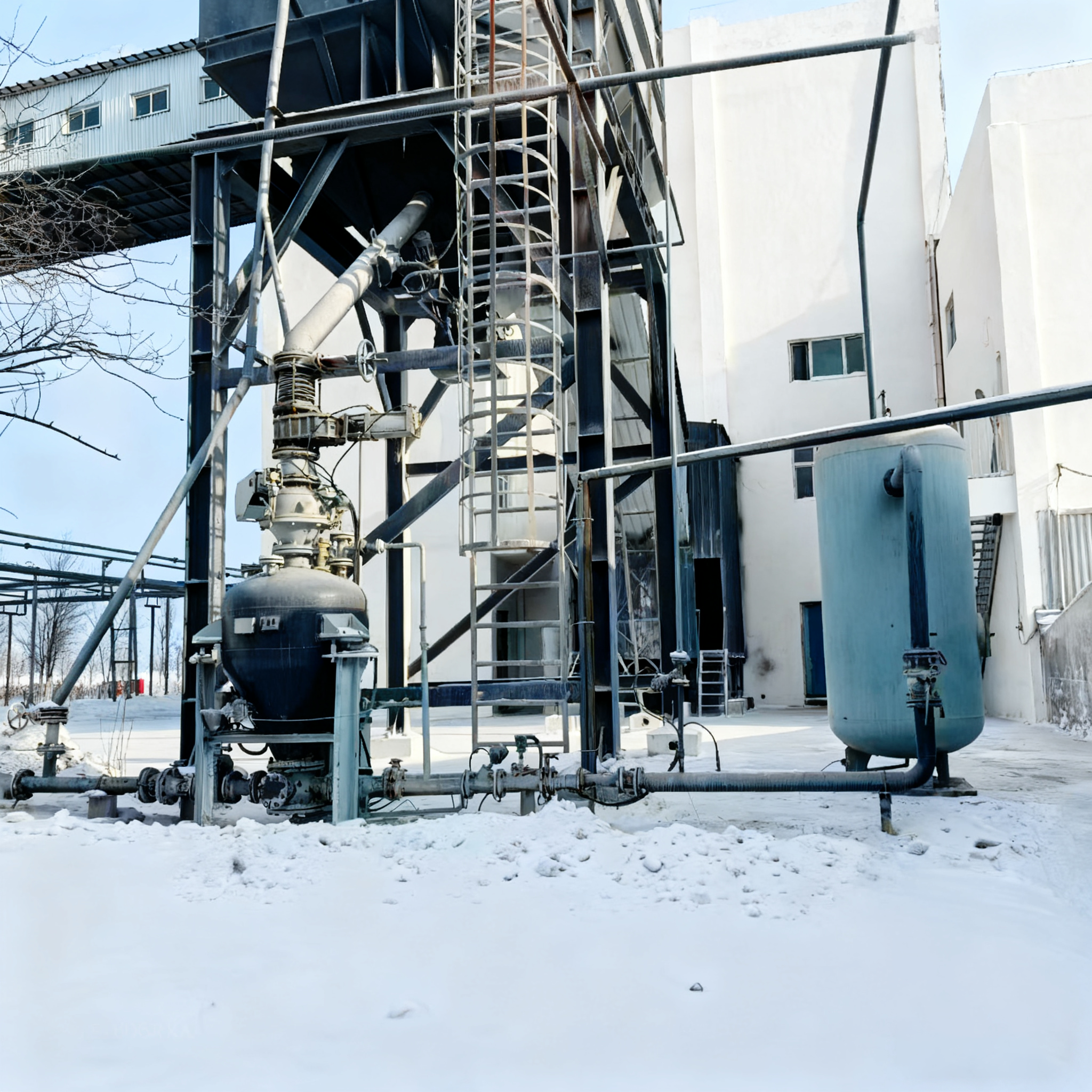

Industrial Silo Pump for Pneumatic Conveying – Pneumatic Conveying Bin Pump Dust-Free Powder Handling

    Buy cheap Industrial Silo Pump for Pneumatic Conveying – Pneumatic Conveying Bin Pump Dust-Free Powder Handling from wholesalers

    Buy cheap Industrial Silo Pump for Pneumatic Conveying – Pneumatic Conveying Bin Pump Dust-Free Powder Handling from wholesalers
    • Buy cheap Industrial Silo Pump for Pneumatic Conveying – Pneumatic Conveying Bin Pump Dust-Free Powder Handling from wholesalers

    Industrial Silo Pump for Pneumatic Conveying – Pneumatic Conveying Bin Pump Dust-Free Powder Handling

    Ask Lasest Price
    Brand Name : Hengcheng
    Model Number : PCD24/H PCD26/H PCD28/H PCD30/H
    Certification : ISO CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5 sets\month
    Delivery Time : 120 days
    • Product Details
    • Company Profile

    Industrial Silo Pump for Pneumatic Conveying – Pneumatic Conveying Bin Pump Dust-Free Powder Handling

    Structural Configuration & Design
    The core component is a pressure vessel, predominantly of vertical cylindrical configuration. Material compatibility is ensured through the use of Q235 carbon steel or 304/316 stainless steel. Larger designs incorporate segregated upper and lower chambers, interconnected by a flow guide cone or distribution plate to facilitate material flow. The vessel is designed for operating pressures up to 1.0 MPa, with integrated ports for pressure gauges and safety valves on the top or side.


    Large Capacity Pneumatic Conveying Bin Pump Parameter Table

    Conveying MaterialBulk Density (t/)ModelPCD24/HPCD26/HPCD28/HPCD30/HConveying Distance
    Specification16~20m318~22m320~27m326~32m3Level (m)Level (m)
    Pulverized Coal0.5Delivery Volume (t/h)50~8060~9065~11080~13020020
    Fly Ash0.7575~12585~13095~160125~19020020
    Limestone Powder/Mineral Powder0.880~13090~140100~170130~20020020
    Cement/Raw Meal1100~150115~175130~215165~26020020


    Long-distance Pneumatic Conveying Bin Pump Parameter Table

    Conveying MaterialBulk Density (t/m3)ModelPCD24/LPCD26/LPCD28/LPCD30/LConveying Distance
    Specification16~20m318~22m320~27m326~32m3Level (m)Level (m)
    Pulverized Coal0.5Delivery Volume (t/h)20~4025~4530~5545~65100025
    Fly Ash0.7535~6045~6545~8065~95100025
    Limestone Powder/Mineral Powder0.840~6545~7050~8570~100100025
    Cement/Raw Meal150~8055~9065~11090~120100025

    Conventional Grid Pneumatic Conveying Bin Pump Parameter Table

    Conveying MaterialBulk Density(t/)ModelPCD18/NPCD20/NPCD20/NReference Conveying Distance
    Specification5.0~6.77.0~10.010.0~15.0m³Level (m)Vertical (m)
    Pulverized Coal0.5Delivery Volume (t/h)12~2016~3225~5050030
    Fly Ash0.7518~3225~4835~7050
    Limestone Powder/Mineral Powder0.820~3526~5138~7550030
    Cement/Raw Meal1.024~4232~6548~9550030
    Silicon Powder1.228~5040~7555~11550030

    Parameter Table Of Small Size Pneumatic Conveying Bunker Pump

    MaterialBulk Density(t/)ModelPCD08/MPCD10/MPCD12/MPCD14/MReference Conveying Distance
    Specification0.2~0.50.6~1.61.5~2.52.5~5.0Level (m)Vertical (m)
    Pulverized Coal0.5Delivery Volume (t/h)0.5~1.81.5~5.55.0~9.08.0~18.010020
    Fly Ash0.750.9~2.82.5~8.57.0~14.012.0~27.010020
    Limestone Powder/Mineral Powder0.81.0~3.03.0~9.08.0~15.012.0~28.010020
    Cement/Raw Meal1.01.2~3.53.5~11.510.0~18.016.0~36.010020
    Silicon Powder1.21.5~4.04.5~13.512.0~20.019.0~43.010020

    System Components & Specifications

    • Feed & Discharge System:

      • Feed Inlet: Top-mounted; connects to upstream silos/feeders.

      • Feed Valves: Pneumatic gate valves or wear-resistant butterfly valves.

      • Discharge Outlet: Bottom or side-of-lower-vessel location; connects to conveying pipeline.

      • Discharge Valves: Pneumatic ceramic ball valves or double-gate slide plate valves.

      • Fluidization: Dense phase vessels include bottom-mounted fluidization discs/pipes.

    • Pneumatic Control System:

      • Composition: Compressed air inlet with regulators, pneumatic valve groups, pressure sensors/controllers, vent/pressure relief devices.

      • Function: Supplies and directs air to actuate all process valves; provides real-time pressure monitoring and overpressure protection.

    • Auxiliary Equipment:

      • Monitoring: Level detection devices (e.g., level gauges).

      • Maintenance: Blowdown valve for contaminant removal; access ladders/platforms on large vessels.


    Working Principle

    The conveying process of a pressure vessel (blow tank) operates in a cyclic manner. Initially, all valves are closed. The cycle begins with the opening of the feed and vent valves, allowing the vessel to fill with material at atmospheric pressure. Once the level detector signals that the vessel is full, the feed and vent valves close. The high-pressure air valve then opens to pressurize the vessel.

    After reaching the operational pressure, the conveying air valve and discharge valve open, initiating material transport. Upon completion of conveying, the high-pressure air valve and discharge valve close. The conveying line is purged with compressed air, while the vent valve opens to depressurize the vessel back to atmospheric pressure, thus completing one full working cycle.


    Core Advantages

    • Exceptional Energy Efficiency: Advanced fluidization design guarantees optimal material movement with significantly reduced air consumption.

    • Industry-Leading Material-to-Air Ratio: Achieves ratios surpassing 30:1, drastically cutting compressed air usage and operational costs.

    • Minimized System Wear: The patented low-velocity 'dune flow' conveyance nearly eliminates abrasion on pipelines and valves, slashing maintenance and downtime.

    • Precise Process Control: Adjustable primary and secondary air inlets allow for fine-tuning to match specific materials, ensuring peak efficiency and superior fluidization.


    Application Fields

    Pressure vessels (blow tanks) for pneumatic conveying are widely used in industries such as metallurgy, building materials, grain processing, and food. They are suitable for powder conveying, environmental dust collection, and granular material transport. These systems enable fully sealed, contamination-free conveying, complying with environmental protection standards.


    Why Choose Our System?
    Superior Reliability Backed by Innovation
    • Patented pressure vessel structure – delivers 20% longer service life than industry counterparts
    • Intelligent auto pressure regulation – ensures consistent material flow without pulsation or blockages
    Intuitive & Connected Smart Operation
    • PLC + touchscreen control panel – pre-storable recipes for quick switching between different materials
    • 24/7 remote monitoring – real-time performance tracking and data analysis via mobile app or PC platform
    Compliant & Trusted for ASEAN Markets
    • CE & ATEX dual certification – fully meets regional safety and environmental standards
    • Localized technical support – tailored to ASEAN industrial requirements and regulations
