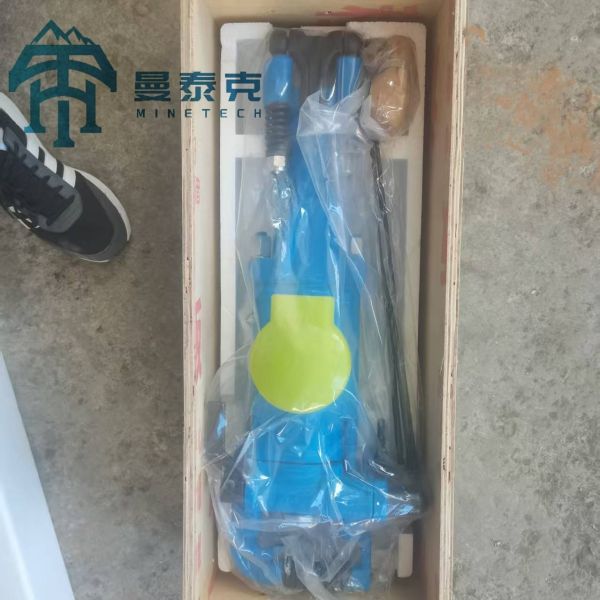

Petrol Stone Drilling Machine Quarry Granite Drill Hand-held
Pneumatic Rock Drill Y26 Machine Hand Operated
Product Introduction
The Y26 Hand-held Pneumatic Rock Drill is designed for efficient
drilling in quarrying and mining operations. It supports wet or dry
drilling in various rock types, offering a lightweight design for
convenient operation and high drilling velocity. With a drilling
depth of up to 5 meters and a bore diameter range of 34-42mm, it
ensures versatility and precision. The product requires no minimum
order quantity for testing and trial orders, making it accessible for
small-scale projects.
Parameters and Specifications
型号Type
Y19A
重量Weight
19 (Kg)
长度Length
600(mm)
缸径Cylinder dia
65(mm)
工作气压Working air pressure
0.4兆帕(Mpa)
冲击能量lmpact energy
≥30焦耳(J)
凿岩冲击频率lmpact frequency
≥23赫兹(Hz)
凿岩耗气量Air consumption
≤47升/秒(L/s)
空转转速Idle speed
≥200转/分(r/min)
噪声Noise
≤124分贝dBA
工作水压 Working waterpressure
0.3-0.35兆帕(Mpa)
气管内径 Air pipe inner dia
19毫米(mm)
水管内径 Water pipe inner dia
13毫米(mm)
凿孔直径Rock drill hole dia
34-42毫米(mm)
凿孔深度 Rock drill holedepth
5米(m)
钎尾尺寸Shank size
25x108毫米(mm)
FY200注油器
质量Weight
1.2公斤(kg)
容油量Oil capacity
1.2升(L)
