PT100 Temperature Sensing Wire Harness Ntc Temperature Probe Sensor

Add to Cart

NTC TEMPERATURE SENSOR

Specification Name	Scope	Detection Condition
R25(nominal resistance value)	5K,8K,10K,15K to 100K	Constant temperature 25ºC±0.05ºC
R25 Permissible variance(%)	±1,±2, ±3, ±5, ±10	Constant temperature 25ºC±0.05ºC
B25/50 or B25/85(material coefficient)(thermal-sensitivity index)	2500~5000K	Constant temperature 25ºC±0.05ºC Constant temperature 85ºC±0.05ºC
B25/50 Value permissible variance(%)	±1,±2	Constant temperature 25ºC±0.05ºC Constant temperature 50ºC±0.05ºC
∫(dissipation coefficient)	≥0.8mw/ºC	Static in the air
T(thermal time constant)	≤25S	Static in the air
Ta(Working temperature)	-40ºC~+250ºC
Pn (rated power)	50mw	within working temperature

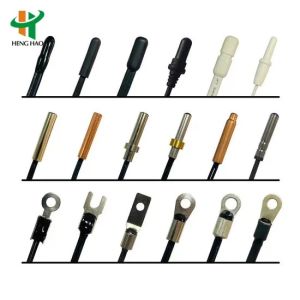

Case and head		Fork head, O ring head,drops of water head, Metal case, Thread copper case, injection head, or according to client's drawing
Lead wire		#24 30# 2651, UL4411 28#, double wired conductor and so on, or according to client's request.
Terminal		Can be riveted according to the requirements of various terminals

PT100/PT500/PT1000 Temperature sensor

Product name	PT100 temperature sensor (Thermocouples, hot resistance)
Graduation number	PT100, CU50,PT1000,K,E,J,T etc.
Temperature range	-50 to 500ºC
Chip imported from	Heraeus - Germany
Temperature probe	304 stainless steel, plastic or other according to client's request
Accuracy Grade	A Grade (0.1),B Grade(0.3),2B Grade (0.5),1/3 B Grade(0.1)
Temperature probe	4*30mm, or according to client's request to design.
Thermal time constant	0.5S
Lead wire	Three core sliver tetrafluoride shielded wire (-50~200ºC) Silicone wire(-200~200ºC) Three core high temperature wire(-40~450ºC) Four fluorine wire (-50~150ºC)
Dia	3mm~16mm
terminal	Y type, Pin,XH2.54 or according to client's request.
Level of protection	IP68

Product Tags:

PT100 temperature sensor wire harness
