Preforms - AI Vision Inspection Machine
AI Deep Learning | Full Automatic | Offline Inspection | Could
Service

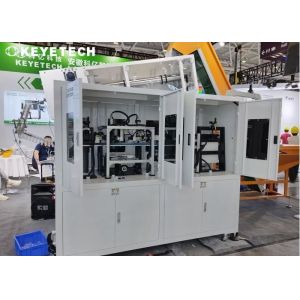

Product Description - Preforms AI Vision Inspection Machine
The Preform AI Inspection Machine conducts visual defect detection
for water, beverage, oil and other preforms via image capture,
processing, annotation, AI algorithm analysis and software
coordination—automatically rejecting defective items while counting
and sorting qualified products into boxes.
Product Parameters- Preforms Vision Inspection Machine
Preforms AI Vision Inspection Machine |
Inspection Defects | Material shortage, body speck, bubble, black spot, scratch, crack,
flow mark, color, foreign item,screw thread, hole, burr, flash,
deformation, etc. |
Detection Area | 360°, including embryo mouth, support ring, embryo body, bottom defect... |
Voltage and current | Adapt to national standard |
Compressed air | 0.5Mpa - 0.8Mpa |
Speed | 600pcs/min |
Precision | 0.1 mm |
Size (including cap feeder) | 1955*720*1877mm |
Power | 3000 - 6000w |
Accuracy | 99.9% |
Weight | 260kg |
What product can be inspected? Preform Vision Inspection Machine
PET Preform - water preform, beverage preform, oil preform, etc.
Defects Detection- Bottles Vision Inspection Machine
Core Technologies
AI Edge Computing Unit: The self-developed AI edge computing unit is a high-performance
embedded computing platform for edge computing in industrial
scenarios. The size is 70mm*65mm*40mm, including gigabit network
port and USB parallel serial port.
Self-Developed Camera: Keye core doctoral team members are all from USTC (University of
Science and Technology of China), independently developing cameras and lenses.
Self-Developed LED imaging lighting unit: based on product characteristics, deploying camera layout to
provide
a good lighting environment for visual inspection.
Self-Developed KVIS-CLOUD Platform: KEYE is the core developer of AI visual edge computing power and imaging hardware platform, and AI visual human-machine interaction
and control system software.
AI Deep Learning Algorithms: For the first time, Keye attempted to apply the semi-supervised
learning model to industrial
scenarios, effectively solving the problems of small number of
defect samples, multiple types, significant morphological differences, and difficulty in
annotation.
SelfDeveloped Software & Control: Customized human-computer interaction, adaptive operation habits; Embedded software control: Stable, efficient, convenient; FPGA control platform: Stability, flexibility, real-time.
After-Sale Service
l Equipment installation and adjustment service: Within 7 days after machine is delivered, engineer is dispatched according to the customer's
requested date for on-site commissioning, including installation, adjustment and training.
l Free daily maintenance services: Keye Tech provides free remote operation and maintenance online services in KVIS AI COULD platform(self-developed), particularly for the system updating, algorithm setting, software
adjustment, etc.
l Offline Training Class: Keye Tech has regular offline training classes every year including mechanics and software & algorithms, customers can send their engineers to participate.
About US | Keye Tech
Anhui Keye Intelligent Technology Co., Ltd. is a Chinese national high-tech enterprise specializing in the
application of AI technology in vision inspection industry. As a
leading manufacturer & solution provider with over 15 years experiences, we provide the most advanced AI vision inspection machine and customized solutions of AI visual inspection system. We have 60+ R&D researchers
from top domestic optical research institutes and a core doctoral
team from the USTC, covering the entire technology chain of optics,
electrics, mechanics, algorithm and software. Our products can be
applied in beverage, pharmacy, dairy, wine, textile, new energy,
agriculture and other packaging industries.
Application: caps, bottles, cups, preforms, label & IML and customized
products...
Keye Machine in Customers' Factory
Our Factory
Cooperated Brands
Trusted by 2,000+ brands worldwide, including Coca-Cola, P&G,
Unilever, ALPLA, MENSHEN, Shriji Polymer, Berry Global, Aptar,
LAMIPAK, TPAC, PACT Group, etc. From the U.S., France, Japan, and South Korea to tropical Thailand,
India, Turkey, Vietnam, and even Russia, Pakistan, Algeria, Keye
Tech’s equipment has now reached over 30 countries.
Customiziable Solution based on request
Keye has a mature standardized new product R&D system, strong
research and development capabilities, and follows the principle of
"everything can be inspected". We have provided highly customized
personalized products for industry-leading clients, such as CATL
lithium battery, Maotai wine bottle, Chemi-con capacitors, etc.
