Product Overview

The ABB CA5X-31M is a highly efficient and reliable thermal overload relay, specifically designed to protect small and medium-sized three-phase asynchronous motors from overload and phase loss faults. This model supports 1 normally open auxiliary contact and 1 normally closed auxiliary contact. It features a compact design and high reliability, and is widely used in industrial automation, building automation and infrastructure projects. It can be used in conjunction with contactors to provide a comprehensive motor protection solution.

Key features

High reliability and long service life
It can withstand up to one million operation cycles under the AC-3 usage category.
The mechanical life exceeds 15 million cycles, meeting the demands of various harsh environments.
Safety and Environmental Protection
Vacuum arc extinguishing technology is adopted to ensure no pollution emissions and meet environmental protection requirements.
It offers outstanding electrical isolation performance to ensure operational safety.
Modular design, flexible expansion
It can be assembled with various accessories: auxiliary contact modules, surge suppressors, mechanical interlock devices, etc.
It is easy to build complex control logic without the need for additional relays.
Safety and compliance
Passed the major global certification systems, including IEC, UL, CSA, CE, etc.
It complies with international and national standards such as IEC/EN 62271-102 and GB/T 11022.
Easy to install
Supports in-cabinet installation to save space.
Supports screw crimping or spring clamping terminal blocks, and is compatible with various wire specifications

Basic parameters
Model: CA5X-31M
Series: ABB CA series thermal overload relays
Number of poles: 3P (main contact), 1NO + 1NC (auxiliary contact)
Rated working current range: 0.1-32 A
Rated insulation voltage Ui: 690 V AC
Rated working voltage Ue: 230/400/690 V AC (50/60 Hz)

Typical application scenarios
Industrial automation
It is used for the starting, stopping and protection of medium-voltage motors, such as water pumps, fans, compressors and other equipment.
Power transmission and distribution
Load switching and protection in scenarios such as medium-voltage switch cabinets and substations.
Energy and infrastructure
Auxiliary control of photovoltaic inverters, pumping stations of water treatment plants, and backup power switching systems.
OEM equipment integration
As a standard component embedded in the OEM control cabinet, it enhances the reliability of the entire machine.

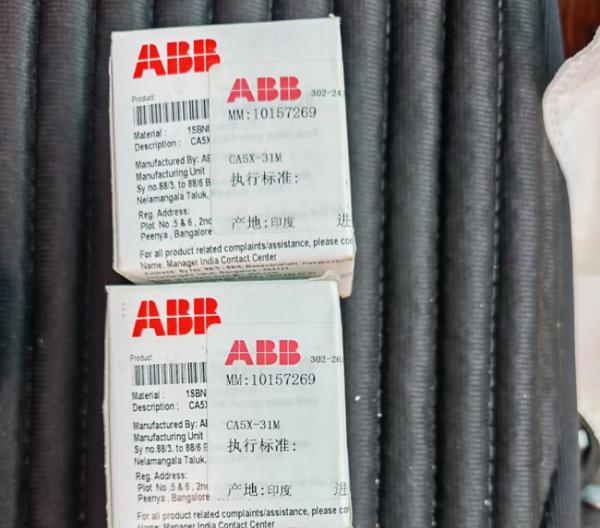

Product Images
