CBB8-18GS75-E2-V1 Pepperl+Fuchs Capacitive Proximity Switch 10-30V
DC
Product Overview
This sensor features an M18 threaded brass nickel-plated housing,
an 8mm detection distance, and a normally open PNP output. It is
designed for high-precision, non-contact detection in IIoT
(Industrial Internet of Things) environments. Supporting the
IO-Link V1.1 communication protocol, it retains traditional switch
outputs while enabling real-time uploading of process data,
equipment status, and diagnostic information. It is a core sensing
element for predictive maintenance and digital factories, widely
used in automotive parts, food and beverage, pharmaceutical
machinery, and intelligent logistics systems.
Core Technical Parameters and Specifications
Basic Electrical Characteristics
| Parameter Item | Technical Specifications | Remarks |
| **Product Model** | CBB8-18GS75-E2-V1 | M18 Flush Mount, V1 Smart
Version |
| **Detection Principle** | Capacitive + ASIC Chip | Compatible
with IO-Link V1.1/1.0 |
| **Rated Detection Distance** | 8mm (Adjustable 4-12mm) | Suitable
for Metallic and Non-metallic Media |
| **Power Supply Voltage** | 10-30V DC | With Reverse Polarity and
Overvoltage Protection |
| **Output Type** | PNP Normally Open (NO) + IO-Link |
3-Wire/4-Wire Switchable |
| **Switching Current** | Maximum 200mA (≤50°C) | Derating Curve:
100mA@70°C |
| **IO-Link Interface** | Class A Port, COM3 (230.4kbps) | Supports
SIO Mode |
| **No-load Current** | ≤15mA (IO-Link mode ≤25mA) | Energy-saving
design |
**Response Time** | 2ms (switching) / 1ms (IO-Link) | High-speed
detection mode selectable |
V1 Enhanced Features
1. IO-Link Intelligent Communication Capability
The CBB8-18GS75-E2-V1 achieves the following digital functions
through the V1 firmware:
- **Process Data Visualization**: Real-time upload of detection
distance (0.1mm resolution), echo amplitude, and temperature value
- **Remote Parameter Configuration**: Online adjustment of
detection distance, hysteresis, and response time via PLC/HMI,
without physical contact
- **Equipment Identification and Traceability**: Automatic upload
of manufacturer, model, serial number, and firmware version to the
MES system
- **Predictive Maintenance**: Monitoring sensor health status
(runtime, switching count, temperature alarm), providing early
warning of end-of-life
2. Intelligent Diagnosis and Event Logging
- **Diagnostic Data**: Low power supply voltage, overload, short
circuit, overheating, and sensor surface contamination
- **Event Timestamp:** Records the last 100 state change events
with an accuracy of 1ms.
**Quality Indicators:** Provides signal quality percentage,
quantifying detection reliability.
**Teach-Lock:** Prevents unauthorized parameter modification,
meeting GMP verification requirements.
3. Multi-Mode Operation
**SIO Mode:** Compatible with traditional PNP switch signals,
operates without an IO-Link master station.
**IO-Link Mode:** Full-featured digital communication, supports
periodic data exchange (1ms cycle).
**Combined Mode:** Switch output + IO-Link diagnostics in parallel,
balancing real-time performance and intelligence.
Typical Application Scenarios
Intelligent Assembly Line Workpiece Inspection
**Application:** New energy vehicle battery module assembly,
detecting whether the insulation film is in place.
**Solution:** The CBB8-18GS75-E2-V1 is installed on the robot
fixture, and the IO-Link uploads the film thickness data to the
PLC. When the detected value deviates from the standard range of
±0.2mm, the system automatically stops and prompts for fixture
replacement. Compared to traditional switch-type solutions, this
increases the defect detection rate from 95% to 99.8%, reducing
rework costs by over 500,000 RMB annually.
Intelligent Filling Line Level Monitoring
**Application**: Infant formula bottling production line,
non-contact detection of liquid levels inside glass jars.
**Solution**: Sensors penetrate 8mm glass walls, and IO-Link
outputs real-time liquid level values. AI algorithms analyze liquid
level fluctuation trends to predict the wear cycle of filling
valves. When three consecutive instances of exceeding the filling
tolerance are detected, a maintenance work order is automatically
triggered, improving overall equipment efficiency (OEE) by 12%.

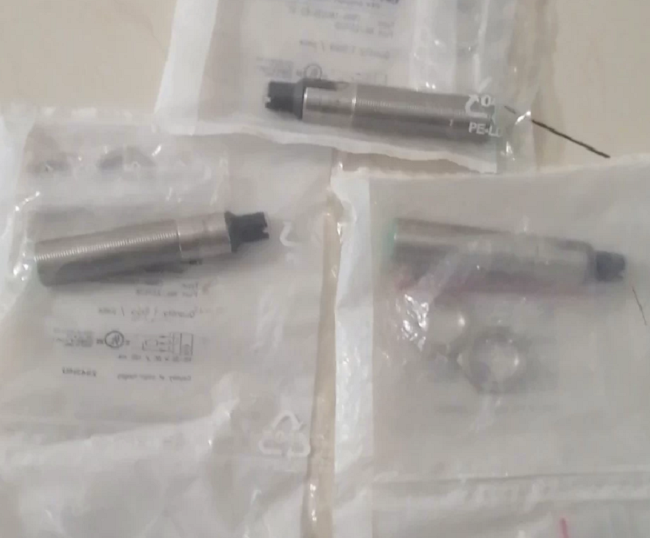

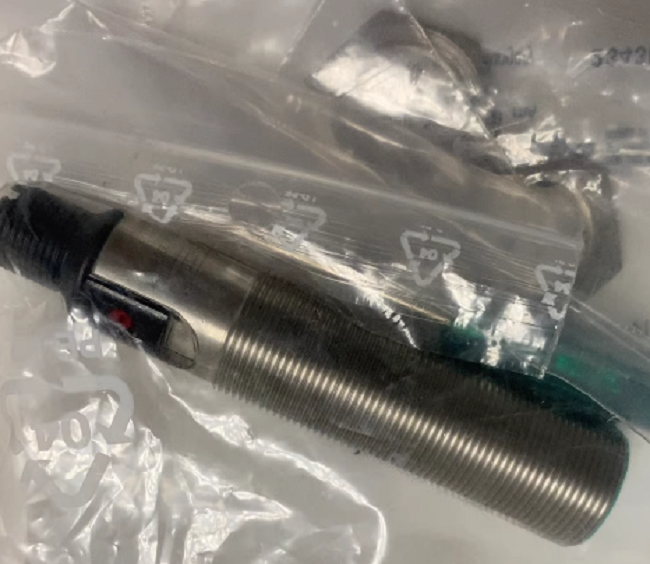

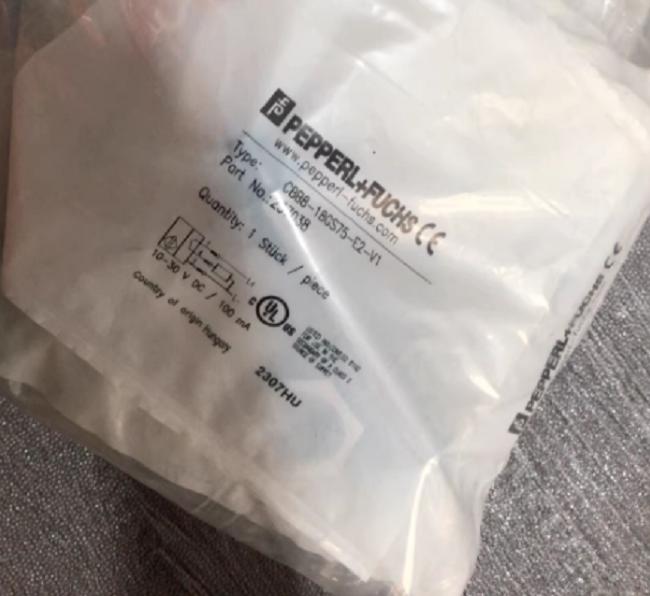

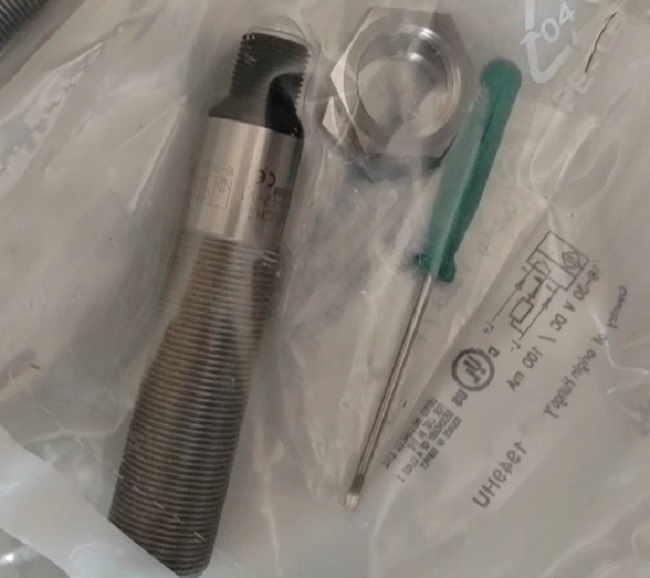

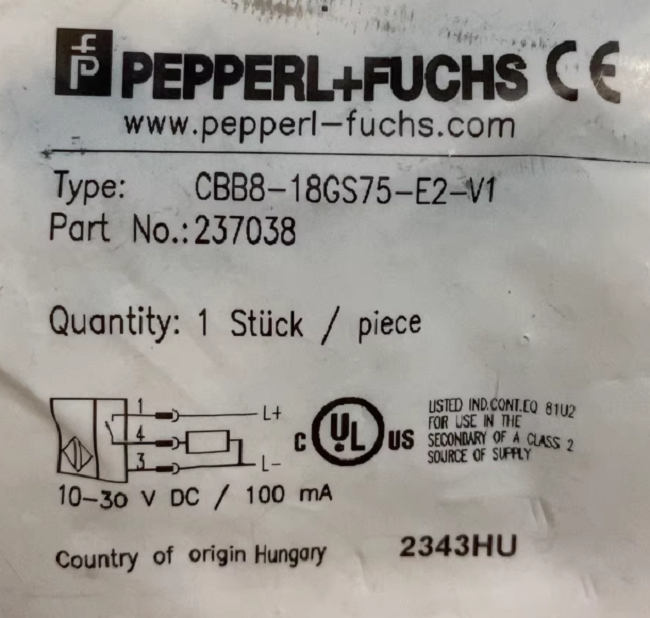

Product Images
