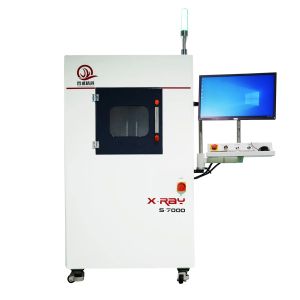

DS-7000 microfocus Xray inspection equipment for large-scale PCB
board testing
∑Main Description :
Function:
1. The stage can move along the X and Y directions, the detector
and the light pipe can move along the Z direction, and the speed
can be divided into slow, medium and fast.
2. The image detector can be tilted 45° left and right to observe
sample defects from a unique perspective without disturbing the
sample.
3. The light pipe has a long service life and is maintenance-free
for life
4. It can detect defects below 2.5 microns, and the detection
repeatability is high
5. Editable detection program to realize CNC automatic detection
6. The detection space is large, which can accommodate various
large-sized samples, and the stage can carry 10KG items
7. Super large automatic navigation window, the stage can be moved
to the pointed position by clicking the mouse
Advantage:
1. The effective detection range is larger, and the magnification
and detection efficiency of the product are improved.
2. It is easy to identify the defects of the product's side tilting
surface, and realize the detection without dead angle
3. Adopt the world's top Japanese Hamamatsu (HAMAMATSU) X-ray
source
4. It is easy to distinguish the bending and breaking of gold wires
in semiconductor packaging
5. Suitable for mass detection, improve detection efficiency, and
automatically judge NG products
6. The super-large stage can place super-large industrial control
motherboards, super-long LED light bars, and electronic products
suitable for various fields
7. The operation is very convenient, and the defect of the item can
be found quickly, which improves the detection efficiency
∑ DS7000 IC IGBT xray machine for welding soldering
inspection Main Application:
BGA
Semiconductor IC
Electronics
Food
Battery Inspection
Microwwave devices
LEDs
Connectors
FAQ:
1. How about the package ? Is it safe during the delivery ?
All PCB X-ray inspection machine is packed by standard strong
wooden carton.
It is safe during shipping.
2. What is the delivery way ? How many days will the machine
arrrive us ?
We will ship the machine by DHL,Fedex, UPS,etc (Door to
Door Service), around 5 days to arrive.
Or by Air to your airport (Door to Airport Service ),
around 3 days to arrive.
Or by Sea to the seaport, Minium CBM
requirement : 1 CBM, around 30days to arrive.
3. Do you provide the Warranty ? How about the after sales
service ?
1 year warranty free for spare parts, Whole life technicial
support.
We have professional after sales team, if any question, assistant
videos are also provided in after-sale service.
4, If we come to your factory, if you will provide the free
training ?
Yes, warmly welcome you to visit our factory, we will arrange the
free training for you.
5. What is the payment way ?
We accept the payment terms: Bank transfer, WesterUnion, Moneygram,
etc.
we solve the chip's problem!
