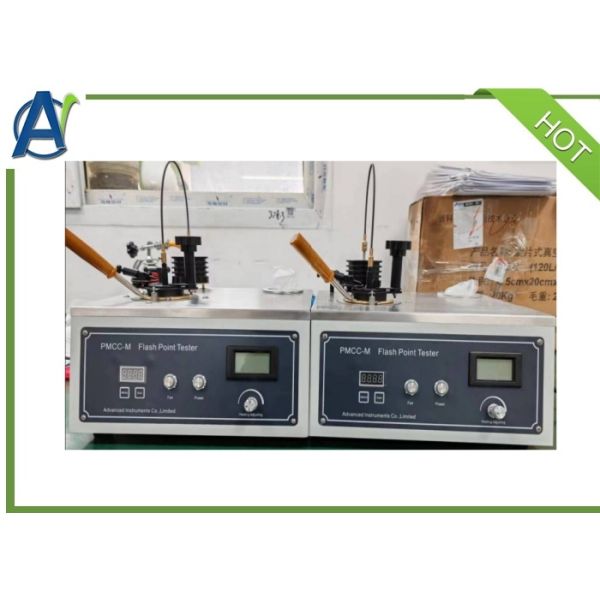

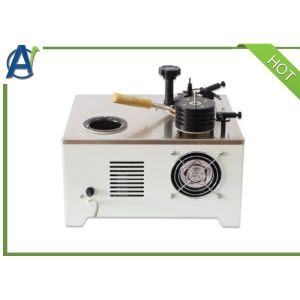

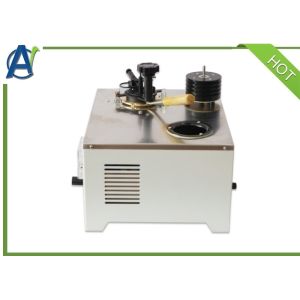

    ASTM D93 Closed Cup Flash Point Test Equipment

    Ask Lasest Price
    Brand Name : Advanced Instruments
    Model Number : PMCC-M
    Certification : ISO 2719; ASTM D93
    Price : US$500-1000/set
    Payment Terms : T/T
    Supply Ability : 100Sets Per Month
    Delivery Time : 15days
    • Product Details
    • Company Profile

    ASTM D93 Closed Cup Flash Point Test Equipment


    Product Description
    ASTM D93 Closed Cup Flash Point Tester is designed and made as per the National Standard of People's Republic of China GB/T261-2008 "Test Methods for Flash Point of Petroleum Products by Pensky-Martens Closed Cup Method". ASTM D93 Closed Cup Flash Point Tester is suitable to determine closed cup flash point of petroleum products in the range of higher than 40 ℃ as per GB/T261-2008.
    Technical Specification and Parameters
    Power supply
    AC(220±10%)V,50Hz
    Heating device
    (1) The furnace is made of SiC materials; its power is 600 W
    (2) Heating power is adjustable in the range of 0 W~600W
    Sample temperature rising rate
    1℃~12℃ per minute, manually controlled
    Electric stirring device
    (1) Stirring motor: 45TYZ Motor
    (2) Driving device: by a soft shaft
    (3) Stirring blade specification: 8 mm×40 mm
    Stirring speed
    As per the requirement of GB/T261-2008
    (1) 90 RPM~120 RPM for procedure A
    (2) 250±10 RPM for procedure B
    Standard oil cup
    As per the requirement of GB/T261-2008;
    (1) Inner diameter: 50.7 mm~50.8 mm
    (2) Depth: 55.7 mm~56.0 mm
    (3) Depth of marked line in the oil cup: 33.9 mm~34.3 mm
    (4) Oil sample cubage: about 70 ml
    Flame application device
    (1) Gas source: Coal gas (or other civilian combustible gas)
    (2) Aperture of flame application device: 0.8 mm
    Thermometer
    Rod type Mercury Thermometer, as per GB/T261-2008;
    (1) Temperature range: -5℃~110℃, Each scale division is 0.5 ℃
    (2) Temperature range: 20℃~150℃, Each scale division is 1.0 ℃
    (3) Temperature range: 90℃~370℃, Each scale division is 2 ℃
    Ambient temperature
    ≤35℃
    Relative humidity
    ≤85%
    Total power consumption
    not more than 650 W

    Full set and technical documents
    Full set of instrument
    No.
    Name
    Unit
    Quantity
    Remark
    1
    Main unit
    Set
    1
    2
    Thermometer -5℃~110℃, each scale division is 0.5℃;
    Piece
    1
    As per GB/T 261-2008
    3
    Thermometer 20℃~150℃, each scale division is 1.0℃;
    Piece
    1
    4
    Thermometer 90℃~370℃, each scale division is 2℃;
    Piece
    1
    5
    Soft shaft
    Piece
    1
    6
    Silica gel tube φ3 0.5 m
    Piece
    3
    1 is spare
    7
    Thermometer adapter
    Set
    1
    8
    Thermometer liner band (cut suitable length of liner band to wrap the lower end of the thermometer, so that the thermometer is just inserted into the thermometer adaptor)
    Piece
    5
    Technical documents
    (1) Operation Manual 1 piece
    (2) Quality Certificate 1 piece
    (3) Repair Guarantee 1 piece

    Package Photos



    FAQ
    1.What's the delivery time?
    About 15 days.
    2.What's your payment terms?
    30% paid by T/T in advance,70% paid by by T/T before shipping.
    3.What's your guarantee terms?
    The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
    4.Can you supply training?
    We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
