    1000M Gigabit Ethernet Signal Slip Ring with Electric Power for Industry

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN000-02P3-01EG
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 500pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    1000M Gigabit Ethernet Signal Slip Ring with Electric Power for Industry

    1000M Gigabit Ethernet Signal Slip Ring with Electric Power for Industry


    ECN000-02P3-01EG is CENO Ethernet signal slip ring with flange structure for easier installation. Ethernet slip rings adopt local area network transmission technology based on fiber optic communication. They achieve high-speed, stable and reliable data transmission by combine optical fibers and cables, and Ethernet slip ring enable seamless connections between wire and forjs, ensuring the stability and reliability of data transmission. For special application please contact us.


    Features

    • 100M/ 1000M Ethernet signa & Comply with EMC requirements
    • Stable transmitting, no string code, can be integrate various signal /data
    • Install easy & Free maintenance

    Applications

    • Automatic machine
    • Security & Protection system
    • Data centers
    • Smart home system
    • Medical equipment

    Optional

    • Circuit, Voltage, Current
    • Signals and data
    • Contact / Housing Materials
    • Protection grade
    • Working speed & temperature


    Specification

    ECN000-02P3-01EG Specification
    Current & Circuits2 circuits * 13A; 1 circuits *1000M Ethernet
    Rating Voltage0 ~ 220 VAC/VDC
    Dielectric strength≥500VAC@50Hz; ≥300VAC@50Hz
    Isolation resistance≥500MΩ@500VDC; ≥100MΩ@300VDC
    Contact resistance wave≤ 30mΩ
    Working temperature-20°C~+60°C
    Working humidity60 %RH
    IP protection gradeIP51
    Operating speed0~10rpm
    Outer diameterØ35mm
    Contact materialPrecious Metal / Gold to gold
    Housing materialAluminium Alloy
    Rotation wayFlange installation
    Lead wire lengthAs customized

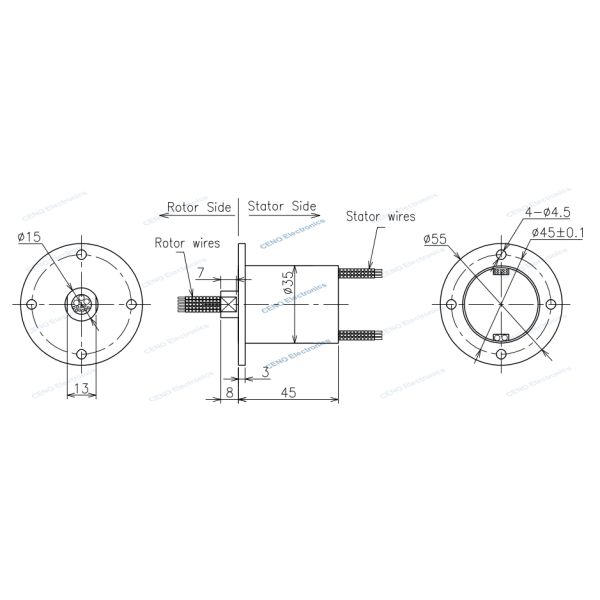

    Outline drawing



    Application


    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

    10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
