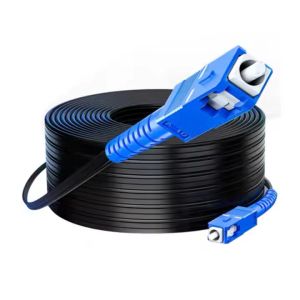

Optical Fiber Patch Cord 3mm LSZH SC APC to SC UPC 1m 2m 3m Single Mode High Performance Patch Cable

    Buy cheap Optical Fiber Patch Cord 3mm LSZH SC APC to SC UPC 1m 2m 3m Single Mode High Performance Patch Cable from wholesalers

    Buy cheap Optical Fiber Patch Cord 3mm LSZH SC APC to SC UPC 1m 2m 3m Single Mode High Performance Patch Cable from wholesalers
    • Buy cheap Optical Fiber Patch Cord 3mm LSZH SC APC to SC UPC 1m 2m 3m Single Mode High Performance Patch Cable from wholesalers
    • Buy cheap Optical Fiber Patch Cord 3mm LSZH SC APC to SC UPC 1m 2m 3m Single Mode High Performance Patch Cable from wholesalers
    • Buy cheap Optical Fiber Patch Cord 3mm LSZH SC APC to SC UPC 1m 2m 3m Single Mode High Performance Patch Cable from wholesalers

    Optical Fiber Patch Cord 3mm LSZH SC APC to SC UPC 1m 2m 3m Single Mode High Performance Patch Cable

    Ask Lasest Price
    Brand Name : JQ/OEM/Customize
    Model Number : SM-SX Patch Cord
    Certification : ISO 9001,ROHS CE-EMC FCC SDOC
    Payment Terms : Western Union, T/T, L/C,Alipay
    Supply Ability : 5000pcs per day
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    Optical Fiber Patch Cord 3mm LSZH SC APC to SC UPC 1m 2m 3m Single Mode High Performance Patch Cable

    SC/APC a SC/UPC 1m 2m 3m Fiber Patch Cord


    Product Description
    9/125µm simplex 900µm buffered fiber patch cord, UPC polished and factory terminated. Fully tested for insertion and return loss with data recorded for each cord. Complies with TIA/EIA-568-B.3 and Telcordia GR-326-CORE standards. High-quality tight-buffered fiber with lifetime traceable QC.


    Feature


    Low Insertion loss

    High return loss

    Good Repeatability

    Good Interchange

    Excellent Environmental Adaptability


    Optical Characteristics



    Parameter


    PC


    UPC


    APC


    Multi-mode


    Insertion loss


    ≤0.3dB


    ≤0.3dB


    ≤0.3dB


    ≤0.3dB


    Return loss


    ≥40dB


    ≥50dB


    ≥60dB


    ≥35dB


    Exchange


    ≤0.2dB


    Repeatability


    ≤0.2dB


    Servicelife


    >1000times


    Tensile strength


    >10kg


    Temperature range


    -40°C to +85°C



    Technical Data


    Type

    Standard,Master


    Style

    LC,SC,ST,FC.MU,DIN,MPO,SC/APC,

    FC/APC,LC/APC.MU/APC


    Fiber

    Singlemode/Multimode

    50/125,62.5/125(Multi mode) OM2&OM1

    50/125,10G(Multi mode)OM3


    Cable

    Simplex,Duplex

    outer diameter:3.0mm,20mm,0.9mm

    PVC or LSZH


    Polishing Manner

    UPC,SPC,APC(8°&6°)


    Insertion Loss

    ≤0.1dB (For Single mode Master)

    ≤0.25dB (For Single mode Standard)

    ≤0.25dB (ForMultimode)

    Tested by JDSRM3750

    Return Loss

    (Single mode)

    UPC≥50dB

    SPC≥55dB

    APC≥60dB (typ.65dB)

    Tested by JDSRM3750


    Repeat ability

    ≤0.1dB


    Operating temperature

    -400 C° to 850 C°


    Geometry Requirement

    (Single mode)

    Ferrule Endface Radius

    7mm≤R≤12mm (For APC)

    10mm≤R≤25mm (For Standard)

    Apex Offset≤30μm (For Master)

    Apex Offset≤50μm (For Standard)

    Under cut-50nm SU≤50nm

    Tested by DORCZX-1


    Application

    Communication rooms

    FTTH (Fiber to The Home)

    LAN (Local Area Network)

    FOS(fiber optic sensor)

    Fiber Optic Communication System

    Optical fiber connected and transmitted equipment


    Connector Type



    Recommed Products



    Packing & Delivery


    Packing:100/Pcs in one Carton box or OEM.

    Shipment:by Sea,by Air,by Express:DHL/UPS/Fedex/EMS/TNT etc

    Deliverty: 3-5 days after payment dowm,According to ur order quantity.



    Factory Pictures

    Product Tags:

    SC APC to SC UPC fiber patch cord



    single mode optical fiber cable



    LSZH fiber optic patch cord
