LPR series is a group of Pin Slip Rings designed and manufactured
by JINPAT Electronics. The unit enjoys an exquisite design and
replaces wire with a pin to make connections, which is in line with
the RoHS Compliance. Convenient to install, it’s suitable perfectly
for system where electricity and power transmission is done in a
small space and plug and play is required in the application.

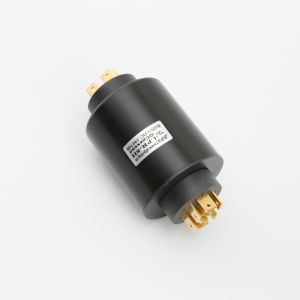

The LPR-8H pin connection slip ring can be used in any electromechanical system that requires
unrestrained, continuous rotation while transferring power or data
from a stationary part to a rotating part.
The LPR-8H unit is a standard, off-the-shelf unit that uses gold
contacts at the rotary interface. Color-coded lead wires are used
on both the stator and rotor for simplifying electrical
connections.
Rotary joint Slip Ring Features
Mercury-free unit in purely environment-friendly design
Load standard module in 360° rotating transmission
Large current-carrying capacity
No interference or data package loss
Extremely low electrical noise, low friction force
Quick connection with spade terminal
Rotary joint Slip RingAdvantages
Optional circuit number
Long service life
Maintenance free
Specification
Circuits
8
Current Rating
2ckt*5A, 6ckt*20A
Voltage
240 VAC
Dielectric Strength
500V@50Hz between circuits
Insulation
100MΩ@500VDC
Electrical Noise
≤15mΩ
Working Speed
0~300 RPM
Contact
Precious metal
Housing
Engineering plastic
Wire Size
Silver plated pin
Working Temperature
-20~+60℃
Protection Grade
IP54
Rotary joint Slip Ring Main Application
Electric devices
CT machine
Mini robots
LED industry
Mini-type devices
Outline Drawing
Rotary joint Slip Ring Product Display
