Bare ACSR conductor Linnet 336.4 MCM Bare Aluminum conductor Steel reinforced ASTM B232/232M
Bare ACSR conductor Linnet 336.4 MCM Bare Aluminum conductor Steel reinforced ASTM B232/232M is a kind of uninsulated aluminum conductor with core reinforced by galvanized steel. It is a type of high-capacity, high-strength stranded conductor typically used in overhead power lines.
The ACSR conductor can, against any given resistance, be manufactured to different tensile strengths, so a high tensile strength combined with its lightweight properties means it can cover longer distances with fewer supports.
Bare ACSR conductor Linnet 336.4 MCM Bare Aluminum conductor Steel reinforced ASTM B232/232M general applications
Bare ACSR conductor Linnet 336.4 MCM Bare Aluminum conductor Steel reinforced ASTM B232/232M technical data
| Code name | Area | Stranding and diameter | Approximate overall diameter | Linear mass | Rated strength | Maximum D.C. Resistance at 20°C Ω/km | |||||
| Aluminum | Steel | Total | Aluminum | Steel | Aluminum | Steel | Total. | ||||
| AWG or MCM | mm2 | mm2 | mm | mm | mm | kg/km | kg/km | kg/km | kn | ||
| Linnet | 336.4 | 27.83 | 198.4 | 26/2.89 | 7/2.25 | 18.31 | 473 | 217.0 | 690.0 | 62.76 | 0.1699 |

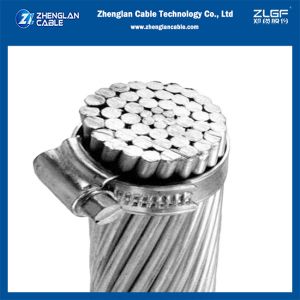

Bare ACSR conductor Linnet 336.4 MCM Bare Aluminum conductor Steel reinforced ASTM B232/232M reference images


Bare ACSR conductor Linnet 336.4 MCM Bare Aluminum conductor Steel reinforced ASTM B232/232M Packing images
