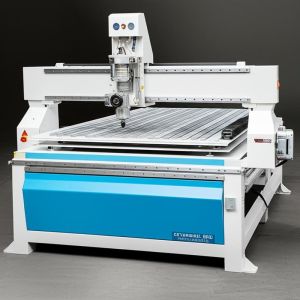

1325 Woodworking Machinery Nesting and Drilling CNC Routers
Product Overview
Our CNC router is built for reliable performance, featuring a
durable construction seamlessly integrated with a stable,
high-precision controller. Renowned for its cost-effectiveness and
backed by excellent after-sales service, this professional PC-based
system delivers both power and accuracy.
Technical Specifications
| Component | Specification |
|---|
| Fuselage structure | Square tube welded bed body, detachable |
| Longmen structure | Thickened square steel gantry, cast iron columns |
| Mesa structure | Aluminum profiles+PVC, vertical laying of profiles |
| Body size | 3100*2000*1750mm |
| Table size | 1300*2500mm |
| Effective work schedule | 1.3mX2.5m (standard board size) |
| Machining accuracy | 0.05mm |
| Transmission structure | Three axis 20 square track and slider |
| Rack | 1.25m high-precision gear rack |
| Z-axis component | Drive belt+gear transmission |
| Motor set | Chuangwei 450B stepper motor |
| Driver | Skyworth 860 Drive |
| Spindle power | 6.0KW air-cooled spindle, speed 24000 RPM |
| Frequency converter | Zhuzhou 7.5KW frequency converter |
| Operating system | JM Weihong |
| Cabinet | Independent chassis control cabinet |
| Machine color | Grayish green |
| Working voltage | 380/220V 50Hz |
Special reminder: Different customers can customize models and configurations
according to their needs. Due to product variety, orders require
prepayment. We provide quotations based on customer requirements.
Please confirm actual pricing with our staff according to product
model configuration. Contact us immediately for more product
information!
Key Features
MACHINE PARTS
Brand: BH
Origin: China Features: long lifespan, low noise, free maintenance |
|
MAIN FEATURES
Three-axis 20 square rail and slider
Brand: BH
Origin: China
Features: fast running speed and strong bearing capacity |
|
MACHINE PARTS
Name: T-slot Table Brand:BH Origin: China Features: much more economic |  |
MAIN FEATURES
Origin: China
Name: independent control cabinet Features: easy to operate and simple to control |  |
- Aluminum profile with PVC countertop: Large aluminum profile surface provides stable load-bearing
capacity, with PVC base protecting the aluminum profile.
- Stepping motor: High-quality spindle and cutting head enable long operation time,
reduced losses, fast bearing speed, and low noise.
- Square steel gantry frame: 1cm thick heat-treated square steel gantry frame ensures good
rigidity, smooth operation, and high machine accuracy.
- Drag chain: New wear-resistant drag chain with separated signal and power
lines prevents signal interference and eliminates cable distortion
during operation.
Applications
Core Applications:
Woodworking: Panel processing, door/window making, furniture engraving, and
custom carpentry.
Advertising: Signage, logo cutting, and acrylic display fabrication.
Model & Prototype: Architectural models, wood patterns, foam molds, and prop making.
Creative Arts: Musical instrument carving, decorative engravings, and craft
gifts.
Frequently Asked Questions
Q1: Can customized services be supported?
A1: Yes, we can customize the color, size and logo you need.
Q2: Where is your factory located?
A2: We are a Chinese manufacturer in Qingdao city, Shandong
province.
Q3: Can you make the machine according to my design or prototype?
A3: Yes. We have professional designers to create the most suitable
design and production plan for your requirements.
Q4: This is the first time I use this kind of machine, is it easy
to operate?
A4: We provide guide videos and English instruction manuals with
the machine. Our team offers free professional guidance until you
can operate the machine proficiently.
Q5: What's your MOQ and delivery?
A5: Minimum order quantity is 1 set. We ship directly to your
country's port - please provide your port name for the best
shipping rates and machine pricing.
Q6: How is your after sales service?
A6: Our sales team is available 24/7. We also provide overseas
installation services.
Q7: If my machine is broken, can you repair it for me?
A7: Yes. We offer free online training. For major issues during
warranty period, we provide repair services.
