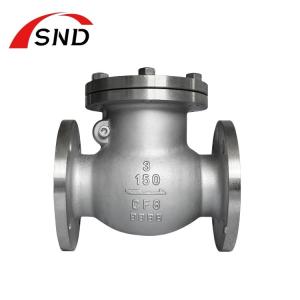

Flange Stainless Steel DN150 Check Valve OEM 2500LB Pressure
Flanged Check Valves Introduction
Flange check valve is a valve that automatically opens and closes
the valve disc by the flow of the medium itself to prevent the
medium from flowing back. It is also called a non-return valve, a
one-way valve, a reverse flow valve, and a back pressure valve. A
check valve is an automatic valve. Its main function is to prevent
the medium from flowing back, to prevent the pump and the drive
motor from reversing, and to release the container medium. The
check valve can also be used on the pipeline that provides supply
to the auxiliary system where the pressure may rise to exceed the
system pressure. Check valves can be mainly divided into swing
check valves (rotating according to the center of gravity) and lift
check valves (moving along the axis).
Check Valve Materials of main parts
| Size | DN25-DN2000 |
| Face to Face | API609, BS5155, DIN3202, ISO5752, JIS F7480, API594 and so on |
| Connection Flange | PN6/PN10/PN16/PN25/JIS5K/10K/16K/150LB/AS2129 Table D/E |
| Mounting Flange | ISO5211 |
| Working Pressure | PN10/PN16/PN25 |
| Application | Fresh Water, Sea Water, Oil, Gas, Acid, Food, Steam |
| Application Temperature | -210~250 ºC |
| Test Pressure | 1.1 Mpa, 1.8 Mpa, 27.5 Mpa |
| Seat Type | Soft Back/Hard Back/Vulcanized |
| Connection Holes No. | 2/4 Holes |
| Body Type | 1/2 Piece |
Structural features of the check valve
1. Short structure length, its structure length is only 1/4~1/8 of
the traditional flange check valve
2. Small size and light weight, its weight is only 1/4~1/20 of the
traditional flange check valve
3. The valve disc closes quickly and the water hammer pressure is
small
4. It can be used in horizontal or vertical pipelines and is easy
to install
5. The flow channel is unobstructed and the fluid resistance is
small
6. Sensitive action and good sealing performance
7. The valve disc has a short stroke and a small closing impact
force
8. The overall structure is simple and compact, and the shape is
beautiful
9. Long service life and reliable performance
Who we are
SND has been producing and selling metal goods for about 20
years.By using manufacturing techniques including sand casting,
lost wax casting, lost foam casting, and precision machining, the
company has been supplying goods made of materials like cast iron,
steel, stainless steel, aluminum, etc. Additionally offered are
surface finishing and assembly services.
Our company has successfully created products in a variety of
industries, including automotive, rail transportation, agricultural
machinery, chemical, energy, electricity, water, air compressor,
and construction, thanks to our consistent efforts over the past
few years.
Our factories' ISO9001-accredited quality control systems guarantee
a consistent and dependable quality for each and every component.
Spectrometer, ultrasonic, magnetic, permeability, elongation,
tensile/yield strength, and other inspections are carried out as
part of routine production procedures.
