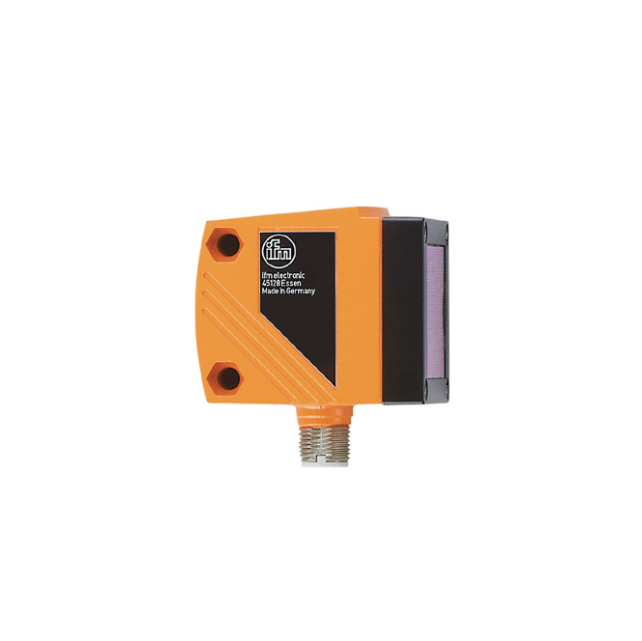

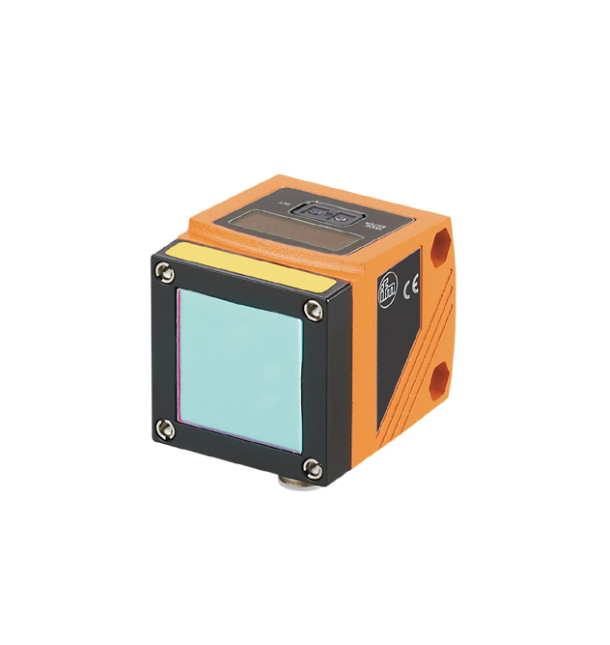

    IFM O1D108 Photoelectric Distance Sensor O1DLF3KG/IO-LINK 01D108 Photoelectric sensors

    Ask Lasest Price
    Brand Name : IFM
    Model Number : O1D108
    Certification : /
    Price : USD $220/PC
    Payment Terms : T/T
    Supply Ability : 1000pc/month
    Delivery Time : 1-3 working days
    • Product Details
    • Company Profile

    IFM O1D108 Photoelectric Distance Sensor O1DLF3KG/IO-LINK 01D108 Photoelectric sensors

    Product characteristics

    Laser protection class2
    Housingrectangular

    Application

    Application[m]0.2...100

    Electrical data

    Operating voltage[V]18...30 DC; (cULus - Class 2 source required)
    Current consumption[mA]< 150
    Protection classIII
    Reverse polarity protectionyes
    Typ. lifetime[h]50000

    Inputs / outputs

    Number of inputs and outputsNumber of digital outputs: 2; Number of analog outputs: 1

    Outputs

    Total number of outputs2
    Electrical designPNP
    Number of digital outputs2
    Output functionnormally open / closed; (programmable)
    Max. current load per output[mA]200
    Number of analog outputs1
    Analog current output[mA]4...20; (IEC 61131-2)
    Max. load[Ω]250
    Analog voltage output[V]0...10; (IEC 61131-2)
    Min. load resistance[Ω]5000
    Short-circuit protectionyes
    Type of short-circuit protectionyes (non-latching)
    Overload protectionyes

    Monitoring range

    Max. light spot width[mm]25
    Max. light spot height[mm]25
    Light spot dimensions refer to18 m
    Background suppression[m]< 100

    Measuring/setting range

    Measuring range[m]0.2...18; (white paper 200 x 200 mm 90 % remission)
    Sampling rate[Hz]

    1...33
