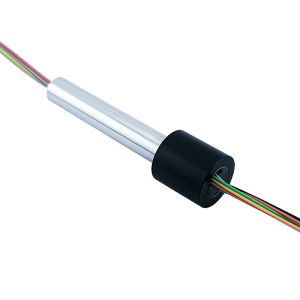

This 8-channel 1A low-power slip ring is specifically designed for
miniature devices. It features an extremely compact structure with
an outer diameter of only 11mm and is equipped with a 6mm aluminum
alloy bushing. Utilizing gold-to-gold contact materials and AWG30#
Teflon wire, it supports 48V operating voltage and 100RPM speed,
and has an IP40 protection rating, providing a reliable rotary
connection solution for space-constrained, low-power devices.
8-channel 1A low-power slip ring Key Features
Ultra-compact design: An ultra-small 11mm outer diameter paired
with a 6mm bushing meets the extreme installation requirements of
miniature devices.
Gold-to-gold contact guarantee: Utilizing gold-to-gold contact
materials ensures stability in low-signal transmission and an
ultra-long service life.
Premium cable configuration: AWG30# Teflon wire provides excellent
insulation performance and high-temperature resistance.
Precise voltage matching: 48V operating voltage optimized for
low-power devices, resulting in lower energy consumption and higher
safety.
8-channel 1A low-power slip ring Technical Specifications
| Parameter | Value |
|---|
| Dielectric strength | 100VCA@50Hz,60s |
| Insulation resistance | ≥100MΩ/100VDC |
| Dynamic resistance change value | ＜0.01Ω |
| Rated voltage | 0～48VDC/VAC |
| Wire Specifications | AWG30#Teflon wire |
| Wire length | Rotor 100mm; stator 200mm (reference value) |
| Operating temperature | -30℃～+70℃ |
| Operating humidity | 0～85%RH |
| Protection level | IP40 |
| Shell material | Engineering Plastics |
| Rotational torque | 0.05N.m,+0.01N.m/6-way |
| Service life | 2 million rpm |
8-channel 1A low-power slip ring Product Dimensions
8-channel 1A low-power slip ring Applications
Miniature robots: Signal and power transmission in rotating joints.
Precision instruments: Rotating connection parts in medical
equipment and testing instruments.
Security monitoring: Signal transmission for miniature pan-tilt
cameras.
Smart wearables: Power supply for specialized rotating structures.
8-channel 1A low-power slip ring Frequently Asked Questions
Q1: What is the maximum load current of AWG 30# wire?
A: AWG 30# wire can stably carry 1A of current under normal
operating conditions, meeting the power requirements of most
low-power equipment.
Q2: What is the specific installation method for the 6mm bushing?
A: The bushing is designed to directly mate with miniature
bearings. Detailed installation dimension diagrams are provided to
ensure quick and accurate assembly.
Q3: What environments is the IP40 protection rating suitable for?
A: IP40 protection effectively prevents the intrusion of solid
foreign objects larger than 1mm in diameter, making it suitable for
indoor environments with basic dust protection requirements.
