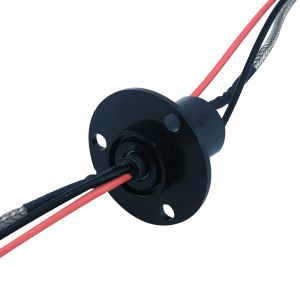

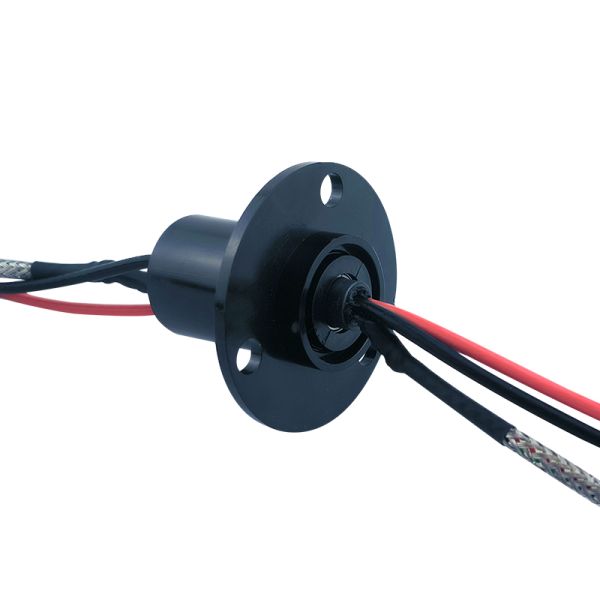

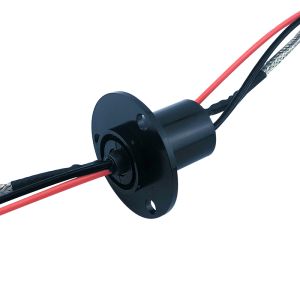

This high-performance 4-channel cap-type combination slip ring
innovatively integrates two 15A high-current channels and two 485
signal channels into an ultra-compact cap-type structure. With an
outer diameter of only 22mm, it supports 220V operating voltage and
150RPM speed, and has an IP40 protection rating. It is specifically
designed for rotating equipment with limited space that requires
simultaneous transmission of power and data.
cap-type combination slip ring Key Features
Intelligent Channel Configuration: Integrates two 15A high-current
channels and two 485 signal channels, balancing power transmission
and data communication.
Ultra-Compact Cap-Style Design: Only 22mm outer diameter, suitable
for the installation needs of highly integrated miniature devices.
Industrial-Grade Electrical Performance: Supports 220V operating
voltage, 150RPM speed meets most rotating application scenarios.
Reliable Protection: IP40 protection rating effectively prevents
solid foreign object intrusion, ensuring basic operational safety.
cap-type combination slip ring Technical Specifications
| Parameter | Value |
|---|
| Dielectric strength | 300VCA@50Hz,60s |
| Insulation resistance | ≥500MΩ/300VDC |
| Dynamic resistance change value | ＜0.01Ω |
| Rated voltage | 0～220VDC/VAC |
| Wire Specifications | AWG14#/26#Teflon wire |
| Wire length | Rotor 250mm; stator 250mm (reference value) |
| Operating temperature | -30℃～+70℃ |
| Operating humidity | 0～85%RH |
| Protection level | IP40 |
| Shell material | Engineering Plastics |
| Rotational torque | 0.05N.m,+0.01N.m/6-way |
| Service life | 2 million rpm |
cap-type combination slip ring Product Dimensions
cap-type combination slip ring Applications
Miniature automation equipment: Power and signal transmission for
small robotic arms and precision instruments.
Intelligent security systems: Synchronous data and power
transmission for PTZ cameras.
Industrial control systems: Signal acquisition and power supply for
rotating sensor platforms.
Instrumentation and equipment: Rotating connection parts of testing
and measurement devices.
cap-type combination slip ring Frequently Asked Questions
Q1: How effective is the interference immunity of the 485 signal
channel?
A: The product employs a professional signal isolation and
shielding design to ensure the stability and reliability of 485
communication during synchronous operation of the power circuit.
Q2: What are the advantages of the cap-style installation method?
A: The cap-style design allows for compact axial installation,
significantly saving radial space, making it particularly suitable
for applications with strict limitations on installation
dimensions.
Q3: Does the product support higher protection levels?
A: The standard version of this product has an IP40 protection
rating. For higher levels of protection, we can provide customized
solutions.
