Product Overview

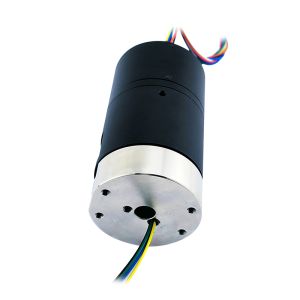

This is a highly integrated pneumatic-electric hybrid slip ring,
featuring an innovative combination of one pneumatic channel and
six signal circuits. The casing is made of black aluminum alloy,
and the internal wiring uses AWG26# Teflon wire, supporting 220V
operating voltage and 200RPM operating speed. It provides a
reliable rotary connection solution for equipment requiring
simultaneous transmission of pneumatic power and electrical
signals.
Key Features
Synchronous Pneumatic-Electric Transmission: Integrates 1 pneumatic
circuit and 6 signal circuits, achieving integrated transmission of
power and signals.
Superior Material Guarantee: The black aluminum alloy casing
provides excellent heat dissipation and mechanical protection; AWG
26# Teflon wire ensures stable signal transmission.
Industrial-Grade Performance: 200 RPM speed combined with 220V
operating voltage meets the needs of most industrial applications.
Compact Structural Design: The ingenious structural design achieves
hybrid pneumatic-electric function within a limited space.
pneumatic and signal combination slip ring Technical Parameters
| Electrical Parameters | Gas Parameters |
|---|
| Dielectric strength | 200VCA@50Hz,60s | Number of trachea | 1 in 1 out |
| Insulation resistance | ≥100MΩ/200VDC | Pressure | -99KPa-0.8MPa or vacuum |
| Dynamic resistance change value | ＜10mΩ | Rotational torque | <0.3N.m |
| Rated voltage | 0～220VDC/VAC | Rotation speed | 200rpm |
| Wire Specifications | Teflon wire (current-dependent) | Shell material | Aluminum Alloy |
| Wire length | Default 300mm (Customizable) | Temperature | -30℃～+80℃ |
| Contact material | Precious metal contacts | Operating humidity | 0～85%RH |
| Protection level | IP51 |
|
|
Technical Drawings
Application Scenarios
Automated assembly equipment: Power supply for pneumatic grippers
and sensors on rotary worktables.
Industrial robots: Hybrid pneumatic-electric transmission for robot
end effectors.
Packaging machinery: Pneumatic control and electrical testing for
rotary workstations.
Testing and measuring equipment: Pneumatic actuation and signal
acquisition for rotary testing tables.
Frequently Asked Questions
Q1: What is the maximum operating pressure supported by the air
passage?
A: The air passage of this product adopts an industrial standard
design. Please refer to the product specification sheet or consult
our technical support for the specific maximum operating pressure.
Q2: Does the 6-channel circuit support high current transmission?
A: The standard version of this product focuses on signal
transmission. If high current transmission capability is required,
we can provide customized solutions.
Q3: Does the product support higher speed operation?
A: The standard version of this product is optimized for 200 RPM.
If higher speed requirements are needed, we can provide customized
design solutions.
