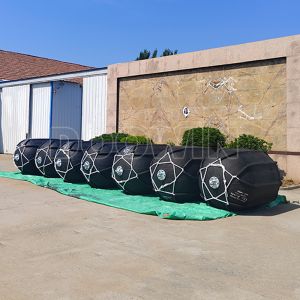

Floating Fender For Boat With Fabric Net And Fastening Ropes
Yokohama Fender Price
ISO 17357 Certificated Yokohama Type Floating Pneumatic Rubber
Fenders
Floating Ship Yokohama Type Marine Pneumatic Rubber Fenders are
made of synthetic-cord-reinforced rubber sheets with compressed air
inside to enable them to float on water and function as shock
absorbers between ships (ship-to-ship) or between ships and
berthing structures.
Note: The floating ship pneumatic rubber fenders have sometimes
been colloquially referred to as "Yokohama Fenders" or "Yokohama
type fenders" - ISO 17357:2014 Ships and marine technology --
Floating Pneumatic Rubber Fenders
Advantages of Yokohama Pneumatic Rubber Fenders
- Lightweight design allows for easy handling and installation with
guy-ropes or guy-chains
- Resists shearing force and maintains energy absorption under
inclined compression up to 15 degrees
- Provides low and comparatively even hull pressure
- Constructed with multiple synthetic-cord layers and tough
abrasion-resistant rubber for consistent performance in rough
conditions
- Minimizes maintenance costs and damage risk
- Self-buoyant design ensures extremely long service life
Yokohama Type Pneumatic Rubber Fenders Construction
Pneumatic rubber marine fenders consist of outer rubber,
reinforcement synthetic-tire-cord layer, and inner rubber,
vulcanized firmly. Fenders of diameter 2500mm and larger are
equipped with safety valves to release excess internal pressure
when over-compressed. The properties requirements of outer and
inner rubber material comply with ISO 17357:2002.
Outer Rubber
The out rubber are used to protect the cord layers and inner
rubber. This rubber compound have sufficient tensile and tear
resistance strength to withstand anticipated weather conditions and
severe usage.
Tire Cord Layers
The reinforcement synthetic-tire-cord layer is strong enough to
maintain the internal air pressure of the fender.
Inner Rubber
The inner rubber layer seals the pressurized air inside the fender.
Pneumatic Rubber Marine Fenders Classification
Initial Internal Pressure:
- Pneumatic fender 50 (initial internal pressure 50 KPa)
- Pneumatic fender 80 (initial internal pressure 80 KPa)
Pneumatic Rubber Fenders Application
Floating pneumatic marine ship rubber fenders serve as protective
medium for:
- Ship-to-ship operations (STS)
- Ship-to-quay (STQ)
- Ship-to-berthing (STB)
Suitable for various vessels including:
- Tankers, Gas Carriers and Bulk Cargo Ships
- Fast ferries and aluminum hulled vessels
- Temporary or permanent installations
- Rapid response and emergency rendering
- Stand-off fenders to realign ships with shore facilities
Floating Pneumatic Rubber Fender Performance
Performance is specified in terms of Guaranteed Energy Absorption
(GEA), Reaction Force at GEA deflection, and Hull Pressure at GEA
deflection.
| D x L (mm) | P50 GEA (kNm) | P50 Reaction Force (kN) | P50 Hull Pressure (kN/m²) | P80 GEA (kNm) | P80 Reaction Force (kN) | P80 Hull Pressure (kN/m²) |
|---|
| 500x1000 | 6 | 64 | 132 | 8 | 85 | 174 |
| 600x1000 | 8 | 74 | 126 | 11 | 98 | 166 |
| 1000x1500 | 32 | 182 | 122 | 45 | 239 | 160 |
| 1000x2000 | 45 | 257 | 132 | 63 | 338 | 174 |
| 1200x2000 | 63 | 297 | 126 | 88 | 390 | 166 |
| 1350x2500 | 102 | 427 | 130 | 142 | 561 | 170 |
| 1500x3000 | 153 | 579 | 132 | 214 | 761 | 174 |
| 1700x3000 | 191 | 639 | 128 | 267 | 840 | 168 |
| 2000x3500 | 208 | 875 | 128 | 430 | 1150 | 168 |
| 2500x5000 | 663 | 1381 | 137 | 925 | 1815 | 180 |
| 3000x6000 | 943 | 2019 | 148 | 1317 | 2653 | 195 |
| 3300x4500 | 1175 | 1884 | 130 | 1640 | 2476 | 171 |
| 3300x6500 | 1814 | 3015 | 146 | 2532 | 3961 | 179 |
Comprehensive Service Support
Beyond supplying premium fenders, comprehensive services are
available globally:
- Professional inspection and maintenance by certified technicians
- Performance monitoring to ensure ongoing safety standards
- Technical support and consultation services
Why Choose Yokohama Pneumatic Fenders?
Yokohama Pneumatic Fenders represent the optimal balance of safety,
performance and cost-efficiency:
- Certified to exceed international standards (ISO 17357-1:2014)
- Manufactured using rigorously tested premium materials
- Proven track record protecting high-value marine assets
- Backed by decades of engineering expertise
For marine operations where safety and reliability cannot be
compromised, Yokohama Pneumatic Fenders provide the ultimate
protection solution. Contact our experts today to discuss your
specific fendering requirements and discover how these premium
products can enhance your marine operations.
