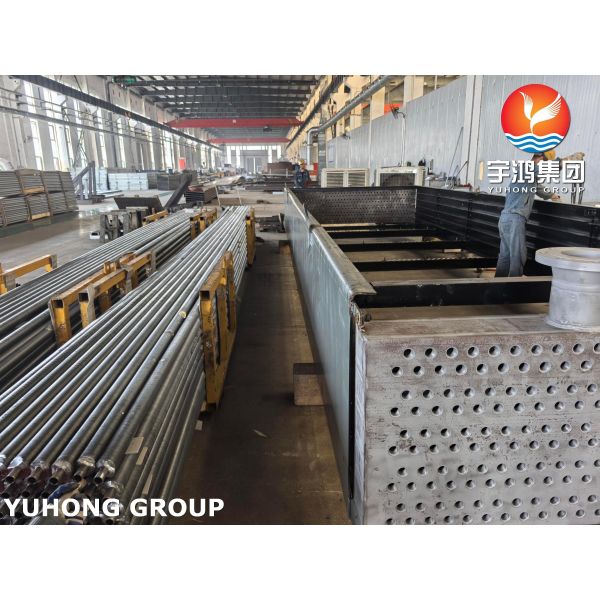

Custom Finned Tube Air Coolers For Oil Gas And Chemical Industries

Air cooler with finned tubes is a device that cools down a hot fluid (liquid or gas) by blowing ambient air over a bundle of tubes. The key component is the finned tube, which is a base tube with fins attached to its external surface. These fins dramatically increase the surface area for heat transfer, making the cooling process much more efficient than using bare pipes.

The basic principle is sensible heat transfer: the hot process fluid inside the tubes loses heat to the cooler air passing over the fins, causing the fluid's temperature to drop.

Key Components

1. Finned Tubes (The Heart of the System):

Base Tube: The inner tube that carries the process fluid (e.g., water, oil, chemical, steam).

Fins: Extended surfaces attached to the outside of the base tube. They are the primary interface for heat transfer to the air.

Common Fin Types:

"L" Fins: A strip of fin material wound around the tube with an "L" shaped base. Common for moderate temperatures.

"G" Fins: Similar to L-footed but with a tighter lock, better for higher temperatures and thermal cycling.

Embedded Fins: The fin is wound into a groove machined into the tube and then tension-wound for a very strong, integral bond. Excellent for high temperature and pressure.

Extruded Fins: A fin is created by extruding aluminum from a bi-metallic tube (e.g., an aluminum sleeve on a steel core). This provides a seamless, highly efficient bond and is very robust.

2. Fans and Drivers:

Axial Fans: Large, propeller-like fans that move a high volume of air across the tube bundle.

Fan Drivers: Typically electric motors, sometimes with variable frequency drives (VFDs) for precise temperature control.

3. Structure and Plenum:

A sturdy steel frame that supports the tube bundle and the fan assembly.

A plenum is an enclosed chamber that ensures air is directed evenly through the tube bundle and doesn't escape around the sides.

4. Headers:

Boxes or pipes at each end of the tube bundle where the process fluid is distributed to the individual tubes (inlet header) and collected after cooling (outlet header).

The Process

1. Hot Fluid In: The hot process fluid enters the inlet header.

2. Distribution: The header distributes the fluid evenly into the multiple finned tubes.

3. Heat Transfer: As the fluid flows through the tubes, its heat is conducted through the tube wall and into the fins.

4. Air Flow: The axial fan(s) force a large stream of ambient air across the outside of the finned tubes. This air picks up the heat from the fins and tube surfaces.

5. Cooled Fluid Out: The now-cooled fluid is collected in the outlet header and sent back into the process system.

6. Hot Air Out: The heated air is discharged to the atmosphere.

This entire process is a closed circuit for the process fluid, meaning it does not come into contact with the cooling air, preventing contamination and loss.

Types of Air Coolers

Forced Draft: The fan is located on the inlet side, pushing air through the tube bundle. The tube bundle is easier to access for maintenance, but the fan is exposed to the cold, ambient air.

Induced Draft: The fan is located on the outlet side, pulling hot air through the tube bundle. This provides more even air distribution and protects the fan from weather, but the fan motor operates in a hot environment.

Common Applications

Air coolers are ubiquitous in industries where water is scarce, expensive, or where process fluid purity is critical.

1. Refineries & Petrochemical Plants: Cooling hydrocarbon streams, overhead condensers for distillation columns, cooling reactor effluent.

2. Power Plants: Cooling the turbine lube oil, closed-loop cooling water systems.

3. Compressor Stations: Aftercoolers and intercoolers for compressed air or gas.

4. HVAC & Refrigeration: As condensers (rejecting heat from the refrigerant to the air).

5. Industrial Processes: Cooling hydraulic oil, quenching, and process cooling in manufacturing.

Advantages vs. Other Coolers (like Cooling Towers)
