1.33 Inch IPS TFT LCD Display 12 Pins with 240x240 Resolution

1.33 Inch IPS TFT LCD Display 240x240 Driver Ic ST7789V 350cd/m²

This TFT LCD Display is a color-active matrix thin-film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. If your product requires a size 1.33 inch then our LCD is just what you need. Improve your product design by adding our 240*240 resolution product. QC department measured the luminance is 350 nits under normal operating conditions.

Specification	Value
Size (inch)	1.33
Resolution	240*240
Active Area (mm)	23.40*23.40
Pixel pitch (um)	97.5*97.5
Outline Dimension (mm)	26.1629.221.5
Pixel arrangement	RGB Vertical Stripe
Display Mode	Normally Black
Viewing Angle	ALL
Display colors	262K
Brightness (cd/m²)	350
Contrast Ratio	600:1
Interface	4 Wire SPI
Back-light	LED Side-light type
Driver Ic	ST7789V
Operation Temperature (°C)	-20~70
Storage Temperature (°C)	-30~80
Response time (ms)	35
Pin Number	12

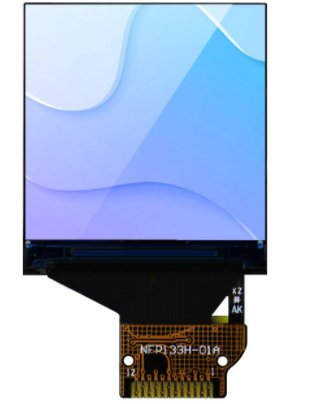

1.33 Inch IPS TFT LCD Display front view

Application Scenarios

This display is ideal for applications requiring small size, high brightness, and low power consumption. Its core applications include:

Wearable Device Field

Smart watches/bracelets: Displays time, heart rate, exercise data, and notifications with 350cd/m² brightness for outdoor visibility
Smart glasses/sports glasses: Secondary screen for navigation and calls with comfortable wearing design
Health monitoring devices: Displays real-time data with IPS wide viewing angle for easy reading

Portable Intelligent Device Field

Smart home controllers: Displays status and operation feedback for switches and sensors
Portable instruments: Clearly shows measurement data and waveforms at 240*240 resolution
Small game consoles/toys: Enhances gaming experience with excellent color performance

Industrial and IoT Field

IoT sensor nodes: Local display for agricultural/industrial monitoring data
Small industrial controllers: Shows operation parameters with ST7789V driver stability
Smart access control: Displays user information and attendance status
