2.4 Inch IPS TFT LCD Display 240x320 with 350 Nit Brightness / MCU RGB Interface

  • Product Details
  • Company Profile

2.4 Inch IPS TFT LCD Display 240x320 with 350 Nit Brightness / MCU RGB Interface

350 Nit 2.4 Inch IPS TFT LCD Display 240x320 48.96mm MCU RGB Interface

Newly published IPS TFT LCD display designed for commercial and industrial applications. This high-quality display features a 2.4-inch diagonal screen with 240×320 resolution and 350 nits brightness, delivering clear visibility in various lighting conditions.

Technical Specifications
ParameterValue
Size (inch)2.4
Resolution240×320
Active Area (mm)36.72×48.96
Pixel Pitch (μm)51×153
Outline Dimension (mm)42.72×60.26×2.30
Pixel ArrangementRGB Vertical Stripe
Display ModeNormally Black
Viewing AngleALL
Display Colors262K
Brightness (cd/m²)350
Contrast Ratio600:1
InterfaceMCU 8/16 BIT RGB 16/18BIT
Back-lightLED Side-light type
Driver ICST7789V
Operation Temperature (°C)-20~70
Storage Temperature (°C)-30~80
Response Time (ms)35
Pin Number40

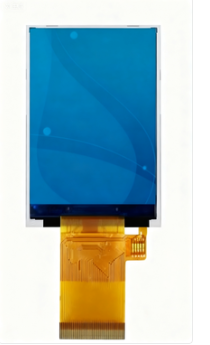

Front view of 2.4 inch IPS TFT LCD display Side view of 2.4 inch IPS TFT LCD display
Key Features
  • High-Quality Display: 2.4-inch diagonal size with 36.72mm × 48.96mm active area
  • Sharp Resolution: 240×320 QVGA resolution with high pixel density for clear text and graphics
  • Bright Visibility: 350nit brightness ensures clear display in various lighting conditions
  • Advanced IPS Technology: 170° wide viewing angle with consistent colors from any angle
  • Flexible Interface Options: Supports MCU (8/16-bit) and RGB (16/18-bit) interfaces
  • Reliable Driver: ST7789V driver IC ensures stable operation
  • Wide Temperature Range: Operates from -20°C to +70°C, stores from -30°C to +80°C
  • Environmentally Friendly: Complies with REACH and RoHS standards
