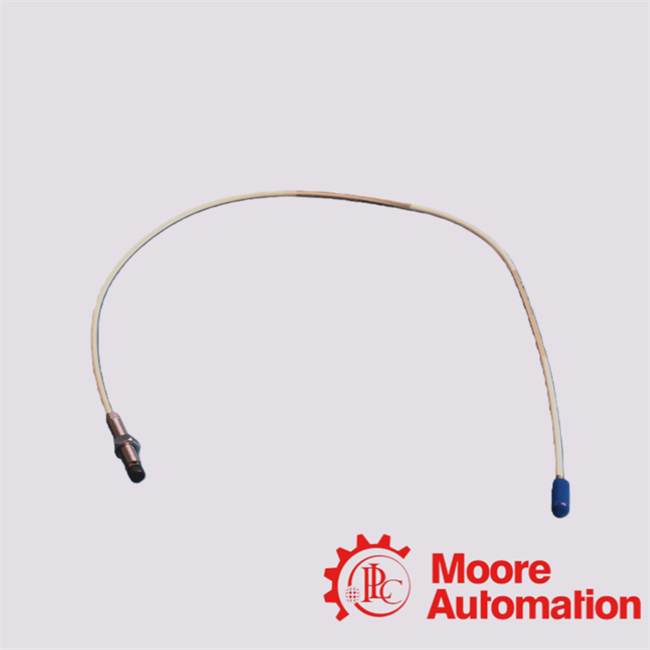

    21504-000-012-10-02 Bently Nevada Standard Mount Probe

    Ask Lasest Price
    Brand Name : Bently Nevada
    Model Number : 21504-000-012-10-02
    Certification : CO.CQ
    Price : inquiry
    Payment Terms : T/T
    Supply Ability : 10 pieces a day
    Delivery Time : today
    • Product Details
    • Company Profile

    21504-000-012-10-02 Bently Nevada Standard Mount Probe

    21504-000-012-10-02 Bently Nevada Standard Mount Probe

    Description

    The 21504-000-012-10-02 is a standard-mount eddy-current (gap-to-voltage) proximity probe used primarily in machinery condition monitoring & vibration measurement systems.

    It is part of Bently Nevada’s 7200 / 3300-series probe family. Key features and specifications include:It is configured as a “Standard Mount Probe”

    with an 8 mm diameter sensing tip (as typical in many 21504 “8 mm Standard Mount” variants). For

    example: the 21504‐00‐24‐10‐02 version is listed as “8 mm Standard

    Mount Probe” with 3/8-24 UNF thread.

    21504-000-012-10-02 Details


    FAQ


    1. What is the measuring (linear) range of this probe?

    A: For the 8 mm standard mount probes of this family the linear range is typically about 10-80 mils (≈0.25-2.0 mm) when used with

    the matching electronics.



    2. What is the diameter and mount thread?

    A: The diameter is 8 mm (≈0.315 inch). The mounting thread for standard mount is usually 3/8-24 UNF right hand.


    3. What connector and cable length does “10-02” specify?

    A: The “10” indicates a 1.0 m total cable length (± some tolerance), and “02” specifies a miniature male

    coaxial connector. This is consistent with other

    istings (e.g., 21504-00-24-10-02).



    4. How interchangeable is this probe with other lengths/variants?

    A: The probe family supports multiple case lengths, cable lengths, unthreaded lengths, and connector

    options, allowing flexibility. The specification sheets emphasize

    interchangeability of probes within the system.
