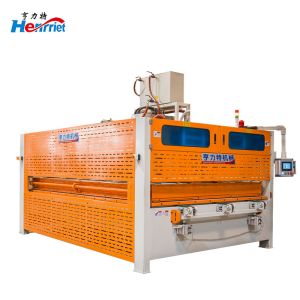

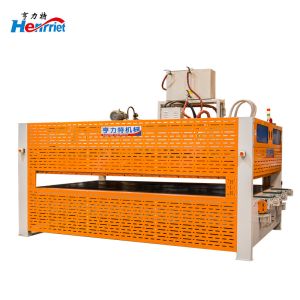

Hot Press Machine For Quartz Stone Transfer Printing Pressing
Marble Tile Texture Heat Press Transfer Wood Board
Product Description:
This state-of-the-art thermal transfer press is engineered for
imprinting decorative patterns onto the surface of rigid composite
materials—including quartz slabs, granite plates, metal sheets, and
acrylic panels. By integrating high temperature, high pressure, and
precision mold technology, it embeds exquisite wood grains, stone
veins, leather textures, and geometric designs directly into the
board surface, transforming unfinished panels into high-end
decorative sheets with remarkable visual appeal.Equipped with
high-precision transfer molds and stable pressure control, the
machine accurately replicates intricate patterns such as marble,
granite, travertine, and wood grains—delivering strong
three-dimensional presence, clear layering, and seamless finishes.
The visual effect far surpasses that of conventional inkjet
printing or coating processes.During the hot pressing cycle, the
surface layer of the board is further compacted, resulting in
higher density and significantly enhanced properties—including
abrasion resistance, scratch resistance, stain resistance, and
impermeability. This makes it especially suitable for high-traffic
applications such as kitchen countertops, bathroom vanities, and
commercial flooring.
Exceptional Productivity
By optimizing the hot-pressing cycle and automating the feeding
process, this system significantly enhances production capacity
compared to traditional equipment, making it perfectly suited for
high-volume order requirements. The pattern transfer is precise and
stable: utilizing three-zone independent temperature control
technology combined with a uniform pressure distribution system, it
ensures every inch of the pattern is clearly transferred, free of
color deviations or bubbles.
Comprehensive Safety Protection
The machine incorporates intelligent safety mechanisms, including
two-hand touch controls for operation, overpressure emergency
stops, and real-time fault diagnosis. With critical electrical
components sourced from industry-leading brands, it effectively
reduces operational risks and complies with CE and ISO safety
standards.
Wide Adaptability
Designed for compatibility with a variety of materials, it is
optimized for artificial stone slabs, quartz stone, and marble,
while also supporting 3D pattern transfer on rock panels and
composite aluminum plates. It caters to multiple fields such as
home countertops, architectural curtain walls, and custom
furniture. Whether working with solid-color fine-particle boards or
multi-colored embossed curved surfaces, its programmable logic
controller allows customized pressure-temperature curves, enabling
flexible production of diverse designs with a single machine.
Easy Maintenance
Featuring a quick-inspection modular design, core components—such
as servo motors, vacuum pumps, and sensors—adopt standardized
modular assembly. This slashes fault localization time and
significantly reduces downtime losses. An integrated self-diagnosis
system continuously monitors data such as seal wear and heating
tube efficiency, providing early warnings for potential issues to
ensure smooth and efficient operation.
Machine parameters
| Voltage | 380 V |
| System | Servo |
| Machinery test report | Provided |
| Weight (t) | 10 |
| Return force (kn) | 1 |
| Table Size | 5000*1300mm |
| Core components | Bearing, Motor, Pump, PLC, Pressure Vessel |
| Motor power (kw) | 5.5 |
| Power | 7.5KW-22KW |
| Control system | PLC+Hydraulic System |
Service Support
Warranty: 1 year
Packaging: Film with foam
24-hour customer service hotline, respond to repair needs within 48
hours.
Free video training for operators and provision of process guidance
manuals.
Lifetime technical support and software upgrade services.
