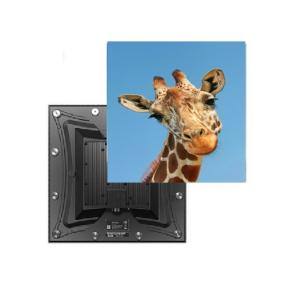

P2.85 Display Module Full Front Access Die-casting AL For Outdoor
Advertising
Product Description:
P2.85 Outdoor LED Display Module is designed to deliver exceptional
visual performance in a variety of outdoor settings. With a pixel
pitch of 2.85mm, this module ensures that images are displayed with
high clarity and detail, capturing the attention of viewers from a
distance.
This model is crafted with a die-casting aluminum cabinet, which is
not only lightweight but also provides a high level of durability.
The cabinet's design facilitates easy installation and integration
into various structures, such as building facades or freestanding
frames.
Features:
- Die-casting aluminum:Light and durable die-casting aluminum panel makes accurate
assembling of corresponding hole position
- Front access:Magnetic led modules strongly connect to the module frame. Safety
rope is optional to tighten the connection.
- Power box integration:The power supply, receiving card and hub board are simplied into a
small power box. The module can work individually.
- Curved video wall:The 45° edges modules are compatible with simple customized metal
cabinet by magnets, which allows the module to build curved led
walls.
- 2-in-1 transmiting cable:Customized 2 in 1 cable allows the led screen to transmit the
current and signal simultaneously.
Technical Parameters:
| Technical Parameters | Outdoor LED Display Module |
| Product Model: | SMART BLOCK |
| Pixel Pitch: | 2.85 mm |
| LED Type: | SMD1415 |
| Pixel Density: | 122500 dots/sqm |
| Cabinet Dimension: | 320x320mm |
| Module Resolution: | 112*112 |
| Module Weight: | 1.54 kg |
| Module+Frame Weight: | 2.22 kg |
| Module Material: | Die-casting aluminum |
| Driving Type: | 1/16 |
| Brightness: | 5000 nits |
| Max/Avg Power: | 800/280 W/m2 |
| Maintenance: | Front service |
| Environment: | Outdoor Use |
| IP Rating: | IP67 |
| Refresh Rate: | >3840 Hz |
| Installation Type: | Mounting/Hanging |
| Gray Scale: | 16 bits |
| Viewing Angle: | H:140°；V:160° |
| Operational Temp: | -30℃~+60℃ |
| Operational Humidity: | 10%~80% RH |
Apllication:
This product can be used for advertising, informational displays,
and even as a background for events and performances. With its high
brightness and resolution, it can easily attract the attention of
passersby and deliver your message effectively.
FAQ:
Q1: What is the control system? How is it?
A1: We use Nova Taurus Series asynchronous control system. Support
cluster play and management. Support APP/Phone/ WIFI/ Ipad/ Laptop/
PC/ Cloud control. It’s very easy and convenient to control.
Q2: Can I have a sample order for led screen?
A2: Yes, we welcome sample order to test and check quality. Mixed
samples areacceptable.
Q3:Is it OK to print my logo on product?
A3: Yes. Please inform us formally before our production and
confirm the design firstly based on our sample.
Q4: What is your best service?
A4: 1: One to one sales engineer to customer responsibility system;
2. Know your project and provide the best solution for it;
3. Track your order and let you know each step and detail of it;
4. Teach you how to install and use the screen;
5. Care the subsequent use of your screen and ensure your after -
sales service be well.
Q5. How about your delivery time?
A5: Generally, it will take 7-15 days after receiving your deposit.
The specific delivery time depends on the items and the quantity of
your order.
Q6:How about your Warranty Term?
A6: 2-year warranty. Structure design, installation problem, system
problem, how to use the screen…don’t worry, we have professional
after-sale team to solve your any questions after you placed an
order. And your exclusive sales engineer will also help you get
over any problems.
