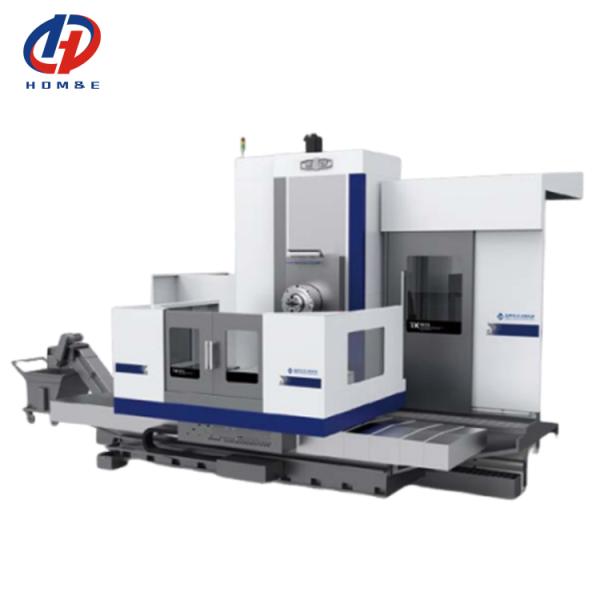

    SMTCL TK6511B Heavy-Duty Cutting & High-Rigidity CNC Horizontal Milling Boring Machine for Wind Power

    Ask Lasest Price
    Brand Name : SMTCL
    Model Number : TK6511B
    Certification : CE ISO certification
    Payment Terms : T/T,L/C,,Western Union
    Supply Ability : 50 sets per month
    Delivery Time : 45-60 days
    • Product Details
    • Company Profile

    SMTCL TK6511B Heavy-Duty Cutting & High-Rigidity CNC Horizontal Milling Boring Machine for Wind Power

    Product Description:

    SMTCL TK6511B Heavy-Duty Cutting & High-Rigidity CNC Horizontal Milling Boring Machine for Wind Power
    High-rigidity CNC horizontal milling and boring machine can meet the heavy cutting demand, and it is widely used in general machinery, engineering machinery, mining, electric power and other industries.
    Structural features:The machine tool is in a structure of T-shaped layout and single column side hanging box
    Basic parts:Cast with high-strength cast iron material and resin sand process, with excellent stability and shock resistance
    Spindle group:he spindle is driven by precision gear group meshing, with smooth operation and high accuracy

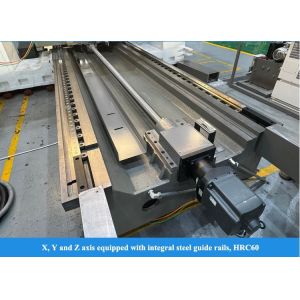

    Guide rail:X-axis, Y-axis and Z-axis are equipped with the integrated steel-inserted guide rail to meet the rigid demand of heavy cutting
    Drive:The X-axis and Z-axis adopt servo motor to drive the ball lead screw via the reduction gearbox,the Y-axis adopts the servo motor to directly drive the ball lead screw, and the B-axis is the classic double worm gear & worm structure

    Product Features:

    1. Strong Machining Capacity: The worktable load capacity is up to 30,000 kg, enabling machining of large workpieces. Combined with the large-size worktable, it meets the needs of heavy machinery, energy equipment and other industries.​
    1. High Precision Guarantee: Adopting imported roller linear guides, lead screws and spindle bearings, each axis has strong transmission rigidity, with a positioning accuracy of 0.026/1000 mm, ensuring the machining of precision parts.​
    1. Efficient Cutting Performance: The milling spindle power is up to 49.2 kW and the torque reaches 4000 Nm. Combined with a high rotation speed of 1500 rpm, it realizes powerful and efficient cutting and shortens the machining cycle.​
    1. Advanced Automation Technology: Equipped with advanced CNC systems such as Siemens 828D, it features fully automatic head changing technology, with high automation level, reducing manual intervention and improving machining efficiency.​
    1. Stable and Reliable Structure: The column and top beam form a gantry frame. The symmetrical frame structure, combined with high-quality cast iron basic parts with reasonable rib arrangement, has strong rigidity and good stability, ensuring the long-term stable operation of the equipment.

    Product Details:

    Industry application:


    Product Paramenters:
    ltems
    Unit
    TK(H) 6511B
    TK(H)P 6511B

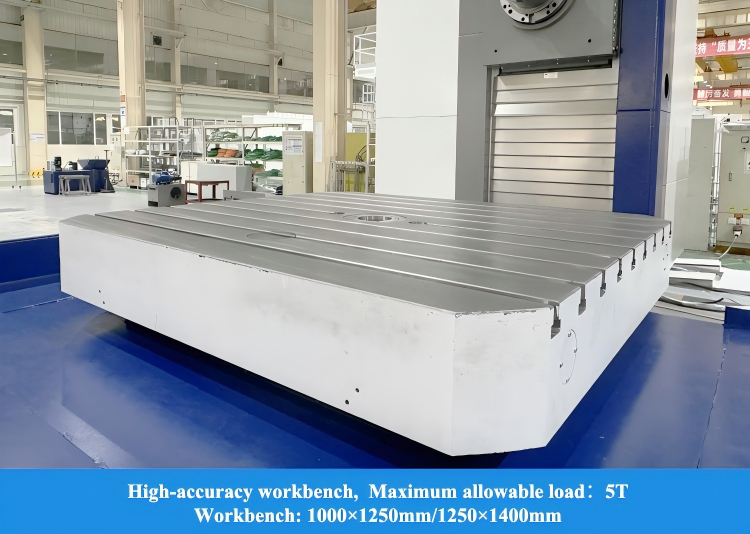

    Workbench dimension
    mm
    1000×1250/ 1250×1400
    Maximum load of workbench
    T
    5
    Spindle diameter
    mm
    φ110
    Facing head diameter
    mm
    -
    φ630
    Tool shank specification

    JT50/BT50
    Spindle speed
    r/min
    10-2500
    Power of main motor
    kW
    19.5/23.4
    Maximum torque of spindle
    Nm
    1300/1600
    Transverse travel X of workbench
    mm
    2000/2500/3000
    Vertical travel Y of headstock
    mm
    1500/2000
    Longitudinal travelZ of column
    mm
    1200/2000
    Travel W of spindle
    mm
    550
    Travel U of facing head slide block
    mm
    -
    140
    Feeding speed
    X,Y,Z
    mm/min
    1-6000
    W
    mm/min
    1-2000
    U
    mm/min
    -
    1-1000
    B
    r/min
    0-1.5
    Rapid speed
    X,Y,Z
    m/min
    10
    W
    m/min
    2.4
    U
    m/min
    -
    2.4
    B
    r/min
    2.5
    Positioning accuracy
    X,Y,Z
    mm
    X/Y:0.018/0.015(grating scale)
    Z:0.016/0.013(grating scale)
    W
    mm
    0.016
    U
    mm
    -
    0.032
    B
    ''
    8, 4×90°;6
    Repositioning accuracy
    X,Y,Z
    mm
    0.01
    W
    mm
    0.014
    U
    mm
    -
    0.018
    B
    ''
    6

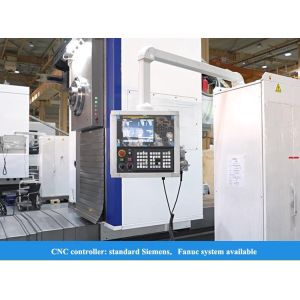

    CNC system


    SIEMENS 828D
    Standard configuration:
    SIEMENS 828D
    Spindle blowing function
    Guide rail protection
    Cabinet air conditioner
    Cooling and chip removal
    Imported ball lead screw
    Operator protection
    Centralized lubrication
    B-axis circular optical grating
    Water gun/air gun Headstock oil cooler
    Workbench water tray
    Anchor cushion iron
    Imported spindle bearings
    Y-direction armor protection
    Floodlight
    Optional configuration:
    40/60 tool magazine
    Pump station oil cooler
    FANUC0I/31I system
    Accessory milling head
    Adaptive control
    Workbench area protection
    Tool load abnormality detection
    X/Y/Z-axis grating ruler
    Energy saving package
    Spindle internal cooling
    SIEMENS one
