    XDEM Movable Asphalt Mixing Station 10TPH 20TPH 40TPH 60TPH Mobile Asphalt Plant Scraper Conveyor High Productivity

    Ask Lasest Price
    Brand Name : XDEM
    Model Number : MDHB60
    Certification : CE
    Price : 10000-50000
    Payment Terms : T/T, L/C
    Supply Ability : 100 sets per month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    XDEM Movable Asphalt Mixing Station 10TPH 20TPH 40TPH 60TPH Mobile Asphalt Plant Scraper Conveyor High Productivity

    Product Description:
    Mobile asphalt mixing plant can be categorized into two types, one is drum type(MDHB series) and the other is compulsory type (QLB series).

    For drum type, we use drying drum to dry aggregates and mix them with bitumen. No ore powder will be used. It is usually used for small and low-level road construction.

    For compulsory type, there is mixer to mix all the materials like stones, ore powder and bitumen. All materials will be weighed before being discharged into mixer to ensure the accuracy of the asphalt formula. Usually, it is used for high-standard road construction.

    We now have mobile asphalt mixing plant with the capacity from 25tph to 100tph. Welcome to contact us for details and quotations.

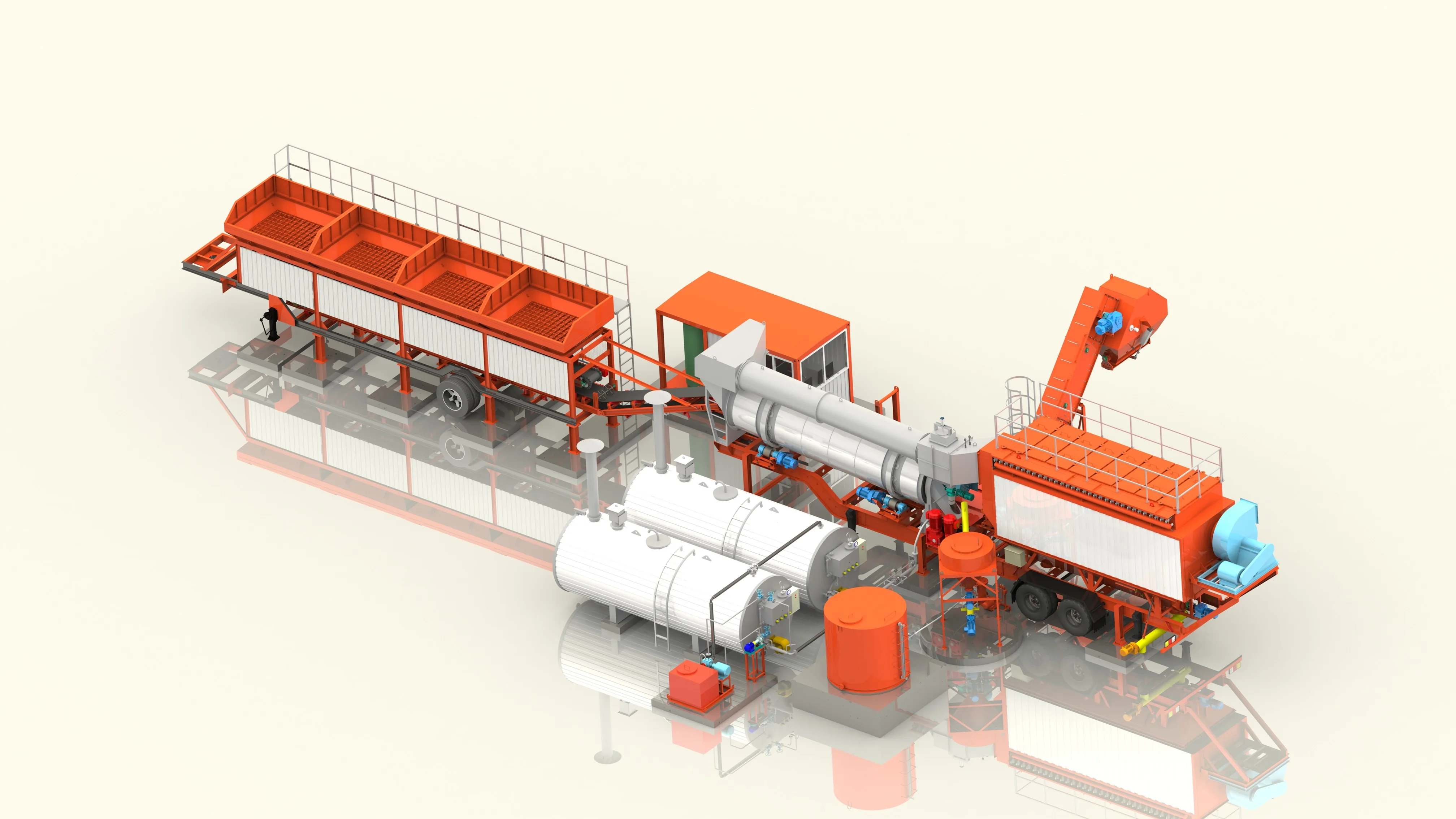

    MDHB series of mobile asphalt mixing plant
    Features compared with QLB series of mobile asphalt mixing plant:
    1. Cost saving;
    2. Labour saving;
    3. It is usually used for low-level road building, like country road.
    Model
    MDHB20
    MDHB40
    MDHB60
    MDHB80
    MDHB100
    Production Capacity (T/h)
    20
    40
    60
    80
    100
    Mixing Type
    Continuous
    Continuous
    Continuous
    Continuous
    Continuous
    Dust Remove Effect (mg/Nm3)
    ≤100
    ≤100
    ≤100
    ≤100
    ≤100
    Fuel Consumption (kg/t) (Oil)
    5.5-7
    5.5-7
    5.5-7
    5.5-7
    5.5-7
    Fuel Consumption (kg/t) (Coal)
    10-13
    10-13
    10-13
    10-13
    10-13
    Aggregate Weighing Accuracy(%)
    ±1.5
    ±1.5
    ±1.5
    ±1.5
    ±1.5
    Bitumen Weighing Accuracy(%)
    ±1
    ±1
    ±1
    ±1
    ±1
    Total Power (kw)
    50
    75
    128
    165
    200

    QLB series of mobile asphalt mixing plant

    Features compared with QLB series of mobile asphalt mixing plant:

    1. Mixer and ore powder are used so the asphalt quality is better;
    2. Bag house filter is used so the machine is more environment friendly;
    3. It can be used for high-level road building, such as natioal road and expressway.
    Model
    QLB20
    QLB40
    QLB60
    QLB80
    QLB100
    Production Capacity (T/h)
    20
    40
    60
    80
    100
    Mixing Type
    batch type
    Dust Remove Effect (mg/Nm3)
    ≤50
    Fuel Consumption (kg/t) (Oil)
    5.5-7
    5.5-7
    5.5-7
    5.5-7
    5.5-7
    Fuel Consumption (kg/t) (Coal)
    10-13
    10-13
    10-13
    10-13
    10-13
    Aggregate Weighing Accuracy(%)
    ±1.5
    ±1.5
    ±1.5
    ±1.5
    ±1.5
    Bitumen Weighing Accuracy(%)
    ±1
    ±1
    ±1
    ±1
    ±1
    Total Power (kw)
    50
    75
    128
    165
    200

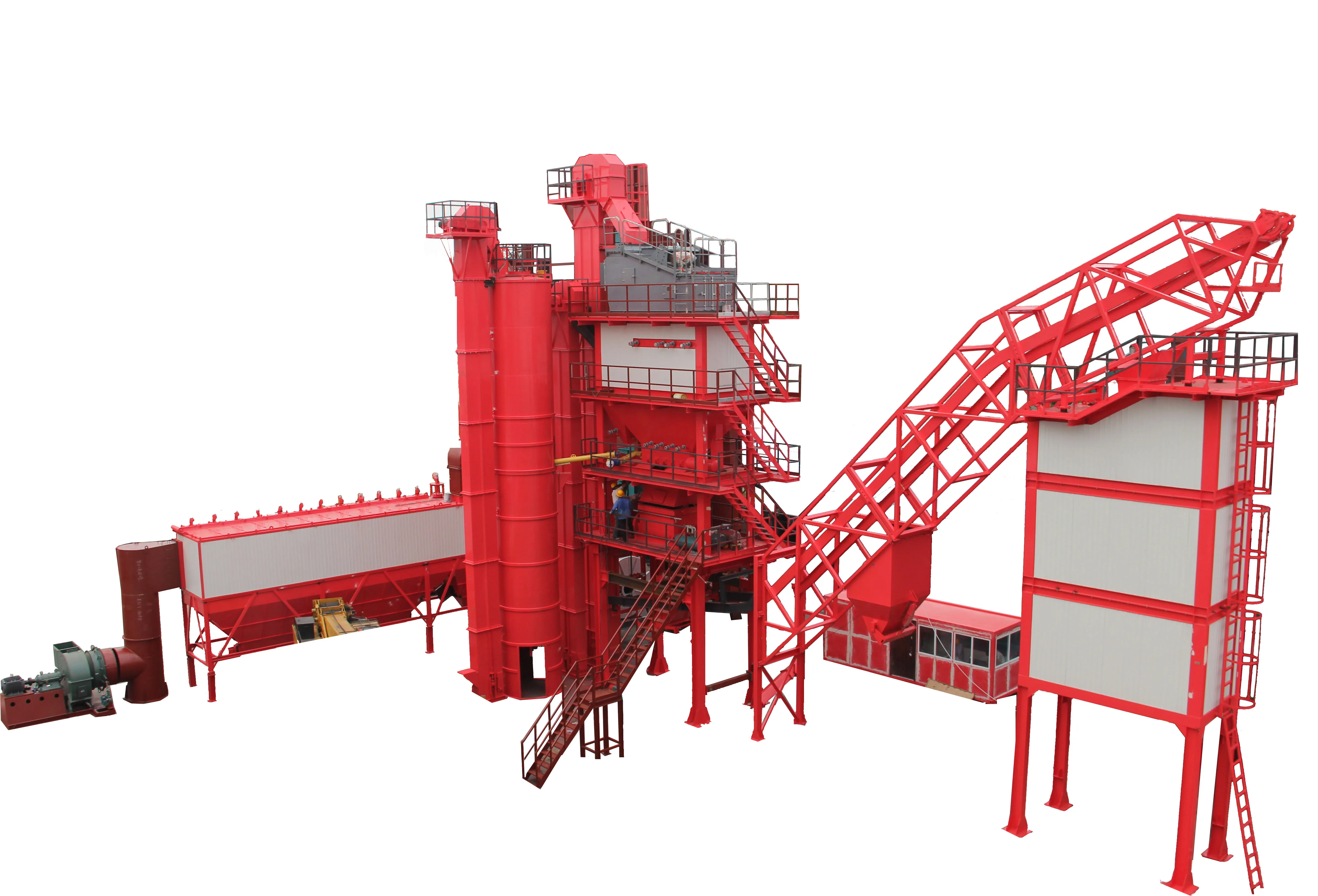

    LB series of compulsory type of asphalt mixing plant has mixer. There are scales for all materials to ensure accuracy of the asphalt formula. Ore powder will be added to the mixture and all materials will be mixed in mixer. Usually, bag house filter is used to protect the environment. It is widely used for high-standard road like expressway, national highway etc.

    Currently, we have stationary asphalt mixing plant with the capacity from 40tph to 320tph. Welcome to contact us for details and quotations
    Model
    LB750
    LB1000
    LB1200
    LB1500
    LB2000
    Production Capacity (T/h)
    60
    80
    100
    120
    160
    Mixer Capacity (kg)
    750
    1000
    1200
    1500
    2000
    Dust Remove Effect (mg/Nm3)
    ≤20
    ≤20
    ≤20
    ≤20
    ≤20
    Fuel Consumption (kg/t) (Oil)
    5.5-7
    5.5-7
    5.5-7
    5.5-7
    5.5-7
    Fuel Consumption (kg/t) (Coal)
    10
    10
    10
    10
    10
    Aggregate Weighing Accuracy (%)
    ±0.5
    ±0.5
    ±0.5
    ±0.5
    ±0.5
    Filler Weighing Accuracy (%)
    ±0.25
    ±0.25
    ±0.25
    ±0.25
    ±0.25
    Bitumen Weighing Accuracy (%)
    ±0.25
    ±0.25
    ±0.25
    ±0.25
    ±0.25
    Our Projects:
