High-Quality Cup-Shaped Metal Parts – Accurate Dimensions,
Long-Lasting, Industrial Applications
Product Description:
Our Cup-Shaped Deep Drawing Parts are precision-engineered components designed for high accuracy, durability, and reliable performance in various industrial and electronic applications. Manufactured
from stainless steel, aluminum, brass, copper, or carbon steel, these parts offer excellent mechanical strength, corrosion resistance, and
dimensional stability.

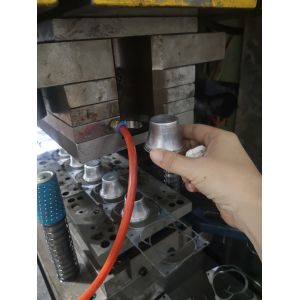

Each part is produced through advanced deep drawing technology, ensuring smooth surfaces, consistent wall thickness, and precise dimensions. Depending on requirements, additional secondary machining or finishing can be applied to meet complex designs and tight tolerances.
These deep drawn cup parts are widely used in:
Automotive Industry – engine components, mounting cups, brackets, and connectors
Electronics – housings, shielding components, connectors, and battery cups
Industrial Machinery – structural parts, fixtures, and precision cylindrical components
Household Appliances – motor components, mechanical assemblies, and internal structural
supports
We provide OEM/ODM customization, allowing clients to specify material, dimensions, wall thickness, surface treatment, logo
marking, and packaging. Whether for large-scale production or small batches, our cup-shaped deep drawing parts offer reliable performance, high precision, and cost-effective solutions.
Features:
High Precision Manufacturing
Produced with tight tolerances to ensure accurate dimensions and
consistent performance.
Durable Materials
Made from stainless steel, aluminum, brass, copper, or carbon steel
for superior mechanical strength and long service life.
Smooth Surface & Burr-Free Edges
Advanced deep drawing and finishing processes provide smooth,
uniform surfaces for easy assembly.
Corrosion & Wear Resistant
Optional surface treatments such as plating, anodizing, or coating
enhance durability in harsh environments.
Versatile Manufacturing Options
Supports deep drawing, stamping, bending, and secondary machining
for complex designs.
Wide Application Range
Ideal for automotive, electronics, industrial machinery, household
appliances, and hardware applications.
Customizable Design
OEM/ODM options available for size, wall thickness, material,
surface finish, logo engraving, and packaging.
Cost-Effective Production
Efficient manufacturing processes enable high-quality parts at
competitive prices.
Technical Parameters:
| Parameter | Specification / Options |
|---|
| Material | Stainless Steel / Aluminum / Brass / Copper / Carbon Steel / Custom | | Outer Diameter (OD) | 5 mm – 200 mm (customizable) | | Inner Diameter (ID) | 3 mm – 180 mm (customizable) | | Height / Depth | 5 mm – 150 mm (customizable) | | Wall Thickness | 0.1 mm – 5 mm | | Tolerance | ±0.01 mm – ±0.05 mm (depending on design) | | Surface Treatment | Polished / Electroplated / Anodized / Coated / Custom | | Mechanical Strength | High / Standard (depending on material) | | Corrosion Resistance | Optional / Yes | | Temperature Resistance | -40 °C to 200 °C | | Applications | Automotive / Electronics / Industrial Machinery / Household
Appliances / Hardware | | Customization | OEM / ODM support: size, material, surface, logo, packaging | | Packaging | Bulk / Plastic Tray / Carton / Pallet / Custom | | Lead Time | 7–20 days (depending on quantity) | | Country of Origin | China (Xiamen) / Custom |
|
Applications:
Automotive Industry – Engine components, mounting cups, brackets, and connectors.
Electronics & Electrical Devices – Housings, shielding components, battery cups, and connectors.
Industrial Machinery – Structural parts, cylindrical fixtures, and precision
assemblies.
Household Appliances – Motor components, mechanical assemblies, and internal supports.
Hardware & Engineering Projects – Custom cylindrical or cup-shaped components for specialized
machinery and equipment.
Customization:
Material Selection
Stainless steel, aluminum, brass, copper, carbon steel, or other
materials based on application needs.
Dimensions & Size
Customizable outer diameter, inner diameter, height/depth, and wall
thickness according to drawings or samples.
Shape & Features
Support for standard cups, deep-drawn designs, threaded bases,
slots, grooves, or other complex shapes.
Surface Treatment
Polishing, plating (zinc, nickel, tin), anodizing, powder coating,
passivation, or oil coating.
Logo & Marking
Laser engraving, stamping, or printing of logos, part numbers, or
batch codes.
Packaging Options
Bulk, tray, carton, pallet, or customized packaging for shipping or
retail requirements.
Special Requirements
High-temperature resistance, enhanced corrosion protection, or
other customized performance features.
Support and Services:
Technical Consultation
Guidance on material selection, design optimization, and
application solutions.
OEM/ODM Support
Full customization services including prototypes, mold development,
and mass production.
Quality Assurance
Strict inspection of dimensions, surface, wall thickness, and
overall performance according to ISO or customer standards.
Sample & Prototype Service
Rapid production of samples for testing and approval before bulk
orders.
After-Sales Support
Quick response to any quality issues, with replacement or
adjustments if necessary.
Fast Delivery & Logistics
Efficient production scheduling and global shipping via air, sea,
or express delivery.
Packing and Shipping:
Packing Methods
Bulk packing, plastic trays, PE bags, blister boxes, carton boxes,
or pallet packing. Custom packaging with labels or logos is
available.
Protection Measures
Anti-scratch, moisture-proof, and rust-prevention packaging to
ensure products remain in perfect condition during transport and
storage.
Shipping Options
Worldwide delivery by air, sea, or express (DHL, FedEx, UPS, TNT),
based on customer requirements.
Lead Time
Standard orders ship within 7–20 days, depending on quantity. Custom orders and large quantities may
require additional time.
Logistics Support
Tracking information and shipping documents are provided for smooth
customs clearance and delivery monitoring.
FAQ:
Q1: What materials are available for these deep drawing cups?
A: Stainless steel, aluminum, brass, copper, carbon steel, and
other materials based on application needs.
Q2: Can I customize the size, diameter, or wall thickness?
A: Yes, OEM/ODM customization is available for outer diameter,
inner diameter, height/depth, wall thickness, and other dimensions
according to drawings or samples.
Q3: What surface treatments do you offer?
A: Polishing, plating (zinc, nickel, tin), anodizing, powder
coating, passivation, oil coating, or custom finishes.
Q4: Can you provide samples before mass production?
A: Yes, we can produce prototypes or small quantity samples for
testing and approval.
Q5: What is the typical lead time?
A: Standard orders take 7–20 days depending on quantity; custom
orders may vary.
