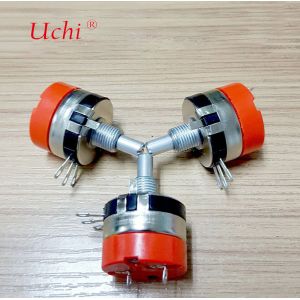

WTH118 Waterproof Improved Precision Potentiometer With Switch

    Buy cheap WTH118 Waterproof Improved Precision Potentiometer With Switch from wholesalers

    Buy cheap WTH118 Waterproof Improved Precision Potentiometer With Switch from wholesalers
    • Buy cheap WTH118 Waterproof Improved Precision Potentiometer With Switch from wholesalers
    • Buy cheap WTH118 Waterproof Improved Precision Potentiometer With Switch from wholesalers
    • Buy cheap WTH118 Waterproof Improved Precision Potentiometer With Switch from wholesalers

    WTH118 Waterproof Improved Precision Potentiometer With Switch

    Ask Lasest Price
    Brand Name : Uchi
    Model Number : WTH118
    Certification : SMC
    Price : Negotiable
    Payment Terms : T/T,paypal, Western Union,MoneyGram
    Supply Ability : 50000000pcs per Month
    • Product Details
    • Company Profile

    WTH118 Waterproof Improved Precision Potentiometer With Switch

    WTH118 Waterproof Improved Precision Potentiometer With Switch
    Electrical Characteristics
    1.Ω Overall resistance range:50Ω—2MΩ(Error±20%)
    2.Power rating: B Taper 0.5W,The others 0.25W.
    3.Taper:

    Taper
    Test point
    position

    V1-2
    V1-3 (%)

    V2-3
    V1-3 (%)
    A180°10-30%
    B150°40-60%
    C*180°
    10-30%
    D150°2-15%
    W90±5°5-15%
    150°40-60%
    210±5°85-95%
    Note)*With respect to terminal 3
    4.Residual resistance: Terminal 1-2/2-3 _20 ΩMAX.
    5.Max.operation voltage: linear taper BAC 500V,other tapers AC 250V.
    6. Slider noise(Refer to JIS): 47mVMAX.
    7.Insulation resistance: 100MQ MIN. at D.C 500 volts.
    8. Withstanding voltage(Terminal~case): 500V,AC(one minute).
    Mechanical Characteristics:
    1. Overall rotational angle: 300°±10° .
    Effective Electrical Travel:230°±3°
    Switch Angle :50°±10°
    Waterproof grade: IP67
    2.Operation torque: 100gf.cm~200gf.cm.(rotational speed 60°/1 sec).
    DURABILITY:
    Rotational life: More than 100,000 cycles
    NOTE:
    1.The items except above mentioned items shall meet or exceed JIS C6443.
    2.Operating temperature:-10℃~+60℃.
    3.Storage temperature:-30℃~+70℃.
    About Uchi Electronics Co., Ltd.

    Uchi Electronics specializes in manufacturing high-quality electronic components including high-power resistors, wire-wound potentiometers, trimmer potentiometers, and precision potentiometric devices. With advanced production facilities and professional R&D teams, our products meet international quality standards and are exported to over 30 countries worldwide.

    Uchi Electronics production facility
    Shipping Options

    We offer multiple shipping methods including express mail service, DHL Express, UPS, and FedEx to ensure safe and efficient delivery of your products.

    Shipping and packaging process
    Frequently Asked Questions
    Are you a factory or a trading company?

    We are a factory offering direct factory pricing without middlemen. We provide professional technical support and accept customized OEM & ODM orders.

    Could you provide samples?

    Samples are available upon request. Contact us to arrange sample delivery after placing your order.

    Can your product be customized?

    We accept OEM and ODM orders with varying customization requirements. Contact our customer service for specific details regarding minimum order quantities and pricing.

    What is your delivery time?

    Delivery times vary based on product quantity, production process, and model. We have multiple factories to handle simultaneous production and can accommodate urgent requests.

    Do you offer after-sales service?

    All products come with comprehensive after-sales support. Our team provides 24-hour assistance for any technical or quality issues.

    Quality control process

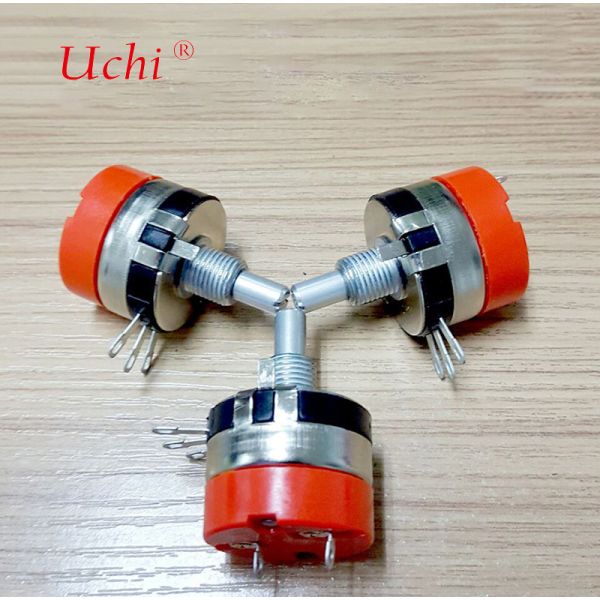

    Quality WTH118 Waterproof Improved Precision Potentiometer With Switch for sale
