IEC 60245-2 Integrated Two Pulleys and Three Pulley Flexing Test
Machine Cable Bending Tester
Product Infromation

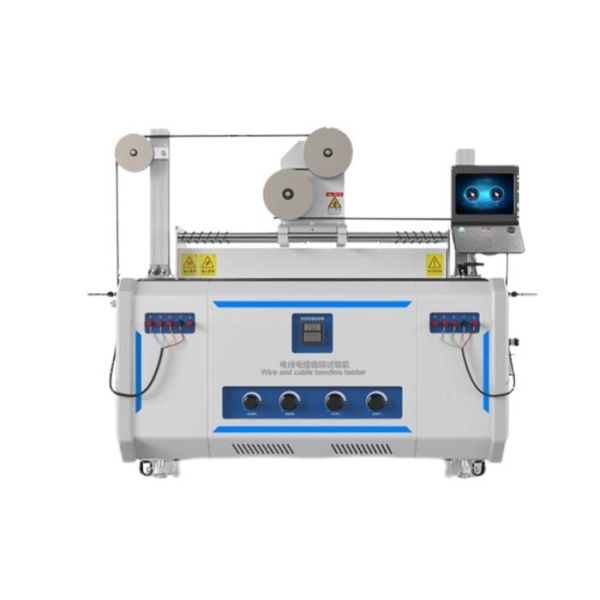

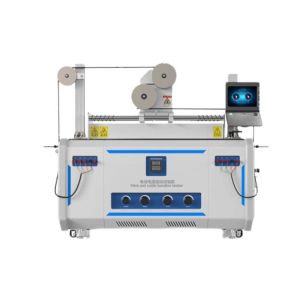

The SN2302B Integrated Two Pulleys and Three Pulley Flexing Test
Machine is a precision testing system designed to evaluate the
bending mechanical performance of flexible finished cables.
It supports both two-pulley and three-pulley flexing tests,
providing a versatile platform for verifying cable durability under
repeated mechanical stress.
This equipment complies with multiple international standards,
ensuring reliable testing results recognized by certification
bodies such as TÜV, VDE, and UL.
Applicable Standards
IEC 60245-1:2008, Clause 5.6.3.1
IEC 60245-2:1998, Clause 3.1 & Figure 1; Clause 3.5 & Figure 6
IEC 60227-1, Clause 6.6.3.2 (IEC 63294:2021, Clause 6.6)
IEC 60227-2, Clause 3.1 & Figure 1
Applications
This flexing tester is suitable for finished flexible cables,
including high-flex cables, power cords, and control cables.
It is particularly applicable for manufacturers and laboratories
performing TÜV, VDE, UL, and IEC compliance tests.
Not applicable to cables with more than two concentric layers or
those exceeding 18 conductors.
Test Principle
A 5-meter cable specimen is repeatedly flexed over a 1-meter stroke
through either two or three pulleys.
By switching between pulley configurations and adjusting motion
speed, users can perform both two-pulley and three-pulley bending
tests to assess the endurance and electrical stability of cable
samples.
Key Features
Dual/Triple Pulley Compatibility: Quick switching between two and
three pulley assemblies.
Advanced Control System: PLC control integrated with an
industrial-grade Windows interface for accurate test management.
User-Friendly Interface: 12" or larger color touchscreen display
with Wi-Fi connectivity for data transfer, report generation, and
direct printing.
Multi-Mode Testing:
No-load tests (for cables with over five cores,
non-current-carrying).
Single-phase cable tests.
Three-phase cable tests.
Adjustable Load Conditions:
Current: 0.1–35A
Voltage: Single-phase 0–250V AC / Three-phase 0–430V AC
Flexible Operation Parameters:
Bending speed (two-pulley): 0.33 m/s adjustable
Bending speed (three-pulley): 0.1 m/s adjustable
Test count: 0–999,999 cycles (presettable)
Precise Fault Detection: Automatic monitoring of conductor
breakage, inter-conductor short circuits, and short circuits
between sample and pulley with audible and visual alarms.
Technical Parameters:
| Parameter | Specification |
|---|
| Control System | PLC + Windows industrial computer |
| Display | ≥12” color touchscreen with Wi-Fi |
| Applicable Conductors | 2–18 cores |
| Wire Size | 0.2–4 mm² |
| Test Stroke | ≥1 meter |
| Pulley Sizes | Two-pulley: Ø60, Ø80, Ø120, Ø160, Ø200 mmThree-pulley: Ø40, Ø45,
Ø50 mm |
| Weights | Two-pulley: 0.5–9 kg (combinable, per IEC Table 1)Three-pulley: 21,
28, 42 N (per IEC Table 3) |
| Power Supply | AC380V ±10%, 50–60Hz |
| Machine Dimensions (W×D×H) | 1600 × 700 × 1600 mm |
| Weight | Approx. 300 kg |
