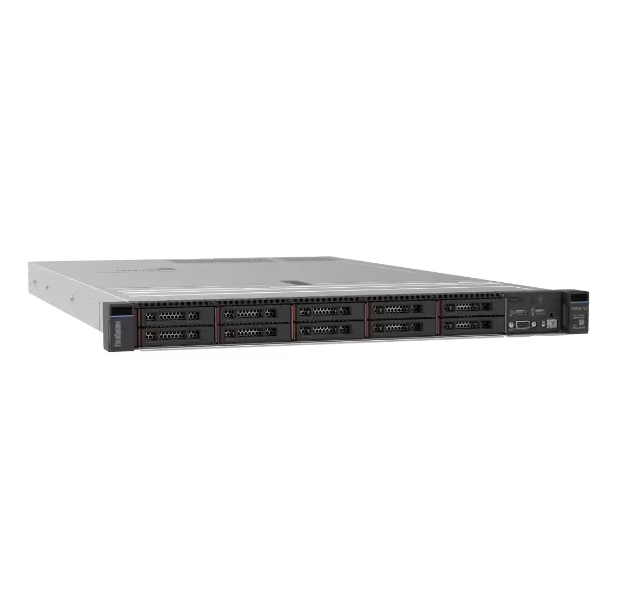

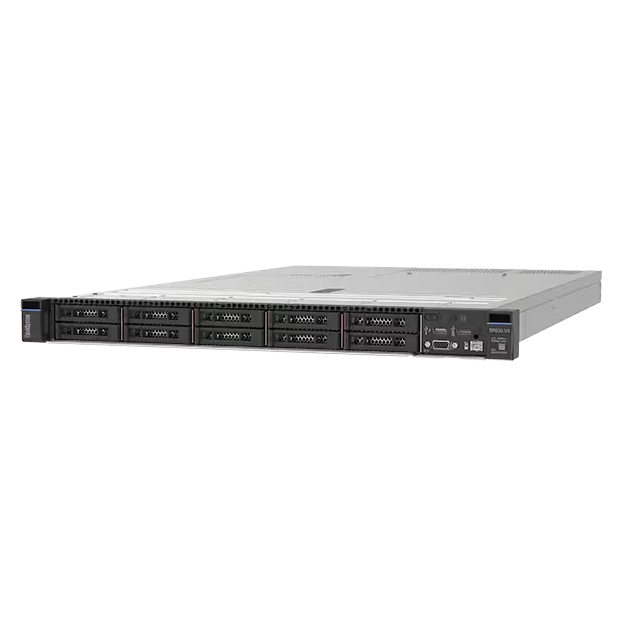

| Model Number : | Lenovo ThinkSystem SR630 V3 1U Rack Server |
| Payment Terms : | T/T |
| Supply Ability : | 50pcs per week |
| Delivery Time : | 2-3 work days |
Next-Gen Workloads Handled at the Flip of a Switch
Processing power is king when it comes to new applications and technology. Applications are evolving and requirements are changing creating next-gen workloads. Cloud Service providers and Enterprise applications require the ability to scale up and down easily to efficiently manage these workloads and their client’s needs. The SR630 V3 is designed with flexible storage, support for PCIe Gen5, intuitive data management, and security.
Easy Management and Enhanced Security in One Smart Server
The SR630 V3 includes Lenovo ThinkShield security software. ThinkShield prevents, detects and remediates against attacks, providing security in the supply chain, below the OS in the server, and from the OS to the cloud. The XClarity system manager simplifies infrastructure processes saving time during deployments, handling faults, and adding new servers to the network. It also adds security by monitoring log events and letting you choose from 3 security modes.
Form Factor/Height | 1U rack server |
Processor | Up to 2x 5th Gen Intel® Xeon® Scalable processors, up to 64 cores and 350W TDP |
Drive Bays | Up to 4x 3.5” or 12x 2.5” or 16x EDSFF E1.S drives Front: up to 4x 3.5” / 10x 2.5” /16x EDSFF E1.short hot swap drives Rear: 2x 2.5”; 7mm SATA/NVMe hot-swap boot drives, support RAID Internal 2x M.2 SATA/NVMe boot drives, support RAID Direct NVMe, VROC/VMD, and onboard SATA with SW RAID (0,1,5,10) |
Memory | Supports up to 32x TruDDR5 3DS/RDIMMs |
Expansion Slots | Up to 5x PCIe 4.0/5.0 slots, 1x OCP 3.0 slot, 1x cabled internal HBA/RAID adapter that doesn't occupy a standard PCIe slot |
GPUs | Up to 3x single-width 75W GPUs |
Network Interface | LOM adapter installed in the OCP 3.0 slot, optional for front access Networking PCIe adapters |
Ports | Front: 1x USB 3.1 G1, 1x USB 2.0 for BMC, 1x VGA (optional), 1x external diagnostics handset port (optional) Rear: 3x USB 3.0 G1, 1x VGA, 1x 1GbE RJ45 (management), 2nd 1GbE management port (optional in OCP slot location), and 1x Serial port (optional) |
HBA/RAID Support | SATA with SW RAID (0,1,5,10); Common building blocks including standard and Internal PCIe RAID/HBA adapters. |
Power | Dual Redundant AC & DC; Platinum & Titanium; 750W, 1100W, 1800W, and 1100W -48V DC Platinum |
Systems Management | Lenovo XClarity Controller |
Limited Warranty | 1-year and 3-year customer replaceable unit and onsite service, next business day 9x5; optional service upgrades |



|
