    Electromagnetic Vibration Tester Automotive & Electronics Testing

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN553-EV250H80VT80VCS-2
    Certification : Calibration Certificate (Cost Additional)
    Payment Terms : T/T
    Supply Ability : 10 Sets Per Month
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

    Electromagnetic Vibration Tester Automotive & Electronics Testing


    Electromagnetic Vibration Tester Automotive & Electronics Testing


    Complied Standards & Clauses



    Sinuo can provide you with the whole excitation and testing scheme, and prove the quality of the products for you according to national and international standards, such as GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM,IEC62133 UN38.3 UL2054 IEC 60086 ECE R100., etc.

    Product Overview

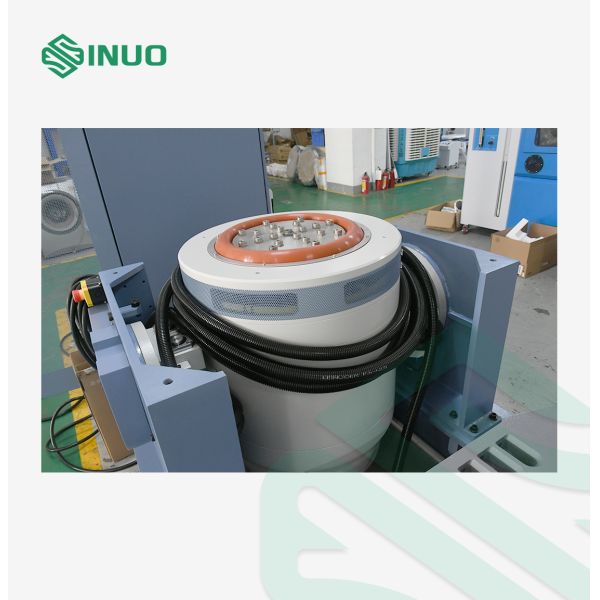

    The SN553-EV250H80VT80VCS-2 Electromagnetic Vibration Testing Machine is a high-precision device designed to simulate real-world vibration conditions for components and products. It ensures reliable performance testing under various vibration frequencies and amplitudes, making it ideal for automotive, aerospace, electronics, and industrial applications.

    Key Features:

    • Wide frequency and amplitude range for versatile testing

    • Advanced electromagnetic drive for precise vibration control

    • User-friendly interface with programmable test profiles

    • Durable construction for long-term, stable operation

    Ensure your products meet the highest reliability standards with this cutting-edge vibration testing solution.


    Technical Parameters


    A11S24 electromagnetic excitation generator parameters
    Maximum sinusoidal excitation force5000Kg.f peak(49KN)
    Maximum Random Exciting Force5000Kg.f r.ms(49KN)
    Maximum impact excitation force10000Kg.f peak(98KN)
    Frequency Range1~2700 Hz
    Maximum displacement51 mm p-p
    Maximum speed2.0m/s
    Maximum acceleration100G(980 m/s2)
    First-order resonant frequency2500 Hz±5%
    Payload1000 kg
    Vibration isolation frequency2.5 Hz
    Moving coil diameterФ440 mm
    Moving coil weight50kg
    Flux leakage<1mST(10gauss)
    Allowable eccentric moment>500N.m
    Equipment size1600mm×1180mm×1280mm (excluding vertical expansion platform)
    Equipment weight4800 kg
    LA50K digital switching power amplifier
    Output power50KVA
    Output voltage110Vrms
    Output current550Arms
    Conversion efficiency>90%
    SNR≥65dB
    Amplifier size910mm×620mm×2000mm
    Servo protection system
    FunctionTemperature, wind pressure, over-displacement, over-voltage, over-current, input under-voltage, external fault, control power supply, logic fault, input phase loss
    Digital vibration controller VCS-2
    Hardware configuration

    2 simultaneous input channels, 1 output channel

    (The controller can be configured with 2, 4, or 8 input channels; prices vary depending on the configuration.)

    Control function moduleSine, random, classical shock
    Control computerOriginal brand computer with LCD monitor
    SoftwareEnglish operation, time domain and frequency domain analysis, signal source, sine frequency sweep analysis, etc. It can automatically generate WORD test reports. It can display, store the signals and data, and set test parameters and analyze functions.
    Acceleration sensor LTE C04A07

    Frequency range: 1—7000Hz

    Sensitivity: 30mv/g

    Temperature range: -40 - 160℃
