Low Cost Custom Pre Fabricated Industrial Workshop Steel Metal Frame Prefab Hangar Building Modular Warehouse

Low Cost Custom Pre Fabricated Industrial Workshop Steel Metal Frame Prefab Hangar Building Modular Warehouse

STEEL WORKSHOP PRODUCT FEATURES

1. Light weight, high strength, 50 years durable use, no construction waste.
2. Quality certification ISO: 9001: 2008
3. Cost considering: Time saved, cost saved;
4. Easy move, materials can be recycled used, environmentally;
5. Used widely, used as factory, warehouse, office building, aircraft hangar etc;
6. Structural durabilities, easy maintenance.

Location:Rwanda
Type: workshop with office
Length:68meter
Width:20meter
Heighth:13.18meter
Application: marigold drying machine warehouse
Technical Requirement:
Rwanda project is with the total area up to 1360 sqm with the 6m span, the highest eave height being 12.3m and ridge height being 13.18m. The steel amount is 80.63 ton and the feature of this building is different heights.
The steel structure plant was installed synchronously with the large equipment. Quanzhou Ridge Steel Structure company took 5 months to help our client to design, manufacture and erect the whole buildings.

ABOUT RIDGE STEEL

RIDGE Steel Buildings Co., Ltd. is a leading steel structure manufacturer with:

✓ 25+ Years of Excellence - Established in 1998 in Quanzhou, China
✓ Global Expertise - 15 years of international export experience
✓ Proven Track Record - Successfully completed 1,820 projects worldwide
✓ Massive Production Scale - 7,600,000 square meters of steel structures delivered

Our Manufacturing Capabilities:
• 2 modern factories spanning 21,000 m²
• Annual production capacity of 60,000 tons

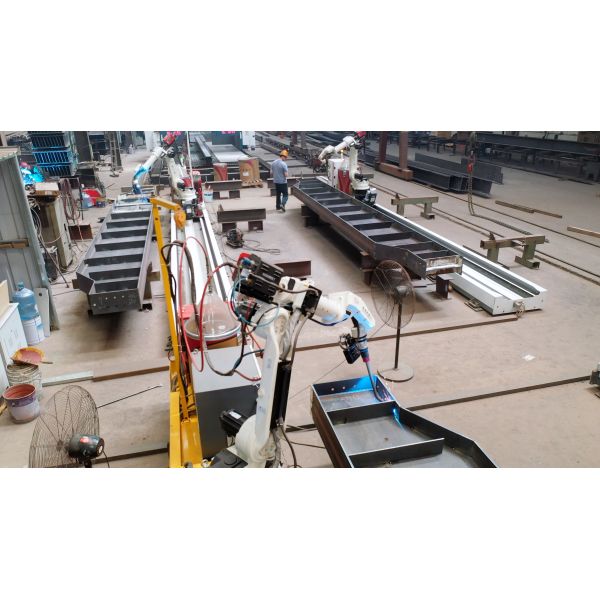

• Advanced fabrication technology and quality control systems

At RIDGE Steel, we are committed to:
Delivering premium quality steel structures
Providing exceptional customer service
Building long-term partnerships with clients worldwide

We look forward to collaborating with you on your next project!

• Our steel structure building installation follows a standardized and efficient 12-step process:

• Prepare the concrete base according to the structural load requirements and install the pre-embedded anchor bolts as per the foundation construction drawings.

• Erect the steel columns using a truck crane, with one worker guiding and 3-4 workers assisting. Secure each column onto the anchor bolts and add temporary bracing.

• After two adjacent steel columns are installed, begin installing the main roof beams to connect and stabilize the structure.

• Install roof and wall purlins after completing the column and beam installation. Bolt them securely onto the main structure to support cladding panels.

• Reinforce the frame by installing horizontal tie rods between purlins for added stability.

• Install the gutter system along the eaves to ensure proper drainage and prevent water accumulation.

• Attach wall sheets to wall purlins with self-tapping screws, then install roof sheets. For insulated buildings, fix sandwich panels to both walls and roof.

• Install covers at corners, eaves, windows, and doors; fit windows and doors in place; conduct a final inspection - your steel building is ready for use.

Please send inquiry in below blank or contact me directly,Mr. Luke,+86-15985955610

Our team of steel structure design experts work with you to define your project balancing scope and budget. Within that process we will provide scope drawings, budget confirmation, and schedule. Each building is customized to provide lasting, maintenance-free value.

We fabricate all structures to be erected on site by yourself or a professional. Regardless, our project management team will be ready to support you through completion until the last piece of trim is installed.
