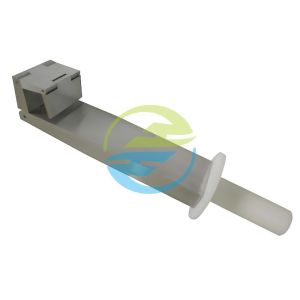

    Wedge-Shaped Test Finger Probe for Document Shredder Safety | IEC 61032 & EN 60950 Compliance Testing Tool – Precision Stainless Steel Probe 25mm × 80mm

    Ask Lasest Price
    Brand Name : HJ
    Model Number : HT-U14
    Certification : TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)
    Price : Negotiatable
    Payment Terms : T/T
    Supply Ability : 100 sets/ month
    Delivery Time : 7 work day
    • Product Details
    • Company Profile

    Wedge-Shaped Test Finger Probe for Document Shredder Safety | IEC 61032 & EN 60950 Compliance Testing Tool – Precision Stainless Steel Probe 25mm × 80mm

    Wedge-Shaped Test Finger Probe for Document Shredder Safety | IEC 61032 & EN 60950 Compliance Testing Tool – Precision Stainless Steel Probe 25mm × 80mm
    Product introduction:

    When it comes to checking if office gadgets are safe, like paper shredders and printers, you gotta look at everything. Our Wedge-Shaped Test Finger Probe (Model HT-U14) is made to be super exact and last long. It's built to act like a human finger touching these machines, so we can see if they're safe.

    By acting like someone using the device, this probe lets companies find problems early, keep people safe, and pass safety checks worldwide, such as IEC 62368-1 and EN 60950.

    Made with care from great stainless steel, the HT-U14 works the same every time, won't rust, and is sized just right. It's a must-have for anyone checking safety, whether in labs or factories.

    Features:
    • Precision Design: Manufactured with strict dimensional tolerances to ensure accurate simulation of real human interaction.
    • Durable Construction: Made from corrosion-resistant stainless steel, offering long service life and consistent performance.
    • Ergonomic Handle: Designed for comfortable and stable operation, reducing testing fatigue.
    • IEC & EN Standard Compliance: Fully aligned with IEC 62368-1 and EN 60950-1 testing requirements.
    • High Repeatability: Guarantees reliable and reproducible testing outcomes.
    International standards
    • The HT-U14 Test Finger Probe is manufactured in full accordance with the following international safety standards and testing clauses:
    • IEC 62368-1: Clause 8.6.3 – Accessibility of moving parts
    • EN 60950-1: Clause 2.1.1.1 – Accessibility to hazardous mechanical parts
    • IEC 61032: Test Probe 11 – Wedge-shaped test finger
    Technical Specifications
    ItemSpecifications
    Product NameWedge-Shaped Test Finger Probe
    ModelHT-U14
    Probe ShapeWedge-shaped
    MaterialStainless steel / Insulated handle
    Overall Length80 mm ±0.2 mm
    Probe Length50 mm ±0.1 mm
    Probe Width25 mm ±0.1 mm
    Wedge Angle30° ±1°
    Handle MaterialInsulated ABS / Aluminum alloy
    Standards ComplianceIEC 61032, IEC 62368-1, EN 60950-1
    ApplicationsDocument shredders, printers, mechanical safety testing
    Calibration Accuracy±0.01 mm
    Weight180 g ±5 g
    Surface FinishMirror polished anti-rust finish
    Operating Temperature0°C ~ 50°C
    Storage Temperature-20°C ~ 70°C
    CustomizabilityYes (custom dimensions available)
    Product Specification Diagram:
    Product detail images:
    Quality Wedge-Shaped Test Finger Probe for Document Shredder Safety | IEC 61032 & EN 60950 Compliance Testing Tool – Precision Stainless Steel Probe 25mm × 80mm for sale
