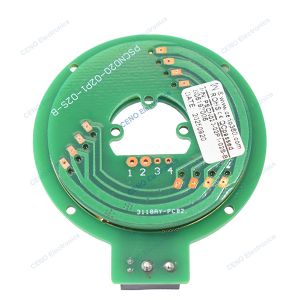

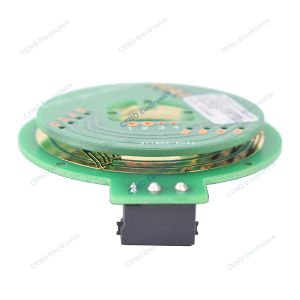

    PCB-style Pancake Slip Ring with electric power & CAN signal for robotic arm

    Ask Lasest Price
    Brand Name : CENO
    Model Number : PSCN020-02P1-02S-B
    Certification : CE,RoHS,UL,ISO9001
    Price : Negotiable
    Payment Terms : T/T,Paypal,Western Union
    Supply Ability : 10000pcs per month
    Delivery Time : 2 weeks
    • Product Details
    • Company Profile

    PCB-style Pancake Slip Ring with electric power & CAN signal for robotic arm

    PCB-style Pancake Slip Ring with electric power & CAN signal for robotic arm


    PSCN020-02P1-02S-B is CENO pancake slip ring with 4 circuits electric power and signal. Due to it’s unique structure, pancake slip ring offer notable features, like ultra-thin and compact structure, and save axial space, it’s their most prominent advantage. Their low overall height makes them ideal for applications where axial space is limited but radial space requirements are minimal, such as the turntables and within robotic arm and joints. Fore more information about CENO slip ring please contact us.


    Features

    1. Through hole to 500mm and optional
    2. Solve space constraints and achieve multifunctional high-density integrated
    3. Improve reliability in harsh environment and install easy

    Applications

    1. Automatic machine
    2. Robot joints
    3. Precision CNC rotary table
    4. Indexing plates
    5. Medical equipment

    Optional

    1. Circuit, Voltage, Current
    2. Signals and data
    3. Contact / Housing Materials
    4. Inner / outer bore size
    5. Working speed & temperature




    Specification

    PSCN020-02P1-02S-B Specification
    Current & Circuits2 circuits * 5A; 2 circuits * Canbus Signal
    Rating Voltage0 ~ 100 VAC/VDC
    Dielectric strength≥300VAC@50Hz
    Isolation resistance≥100MΩ@100VDC
    Contact resistance wave≤ 30mΩ (50rpm)
    Working temperature-20°C~+60°C
    Working humidity60 %RH
    IP protection gradeIP00
    Operating speed0~80rpm
    Inner diameterØ20mm
    Contact materialGold to gold
    Housing materialFR4
    Rotation wayFlange installation



    Outline drawing




    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
