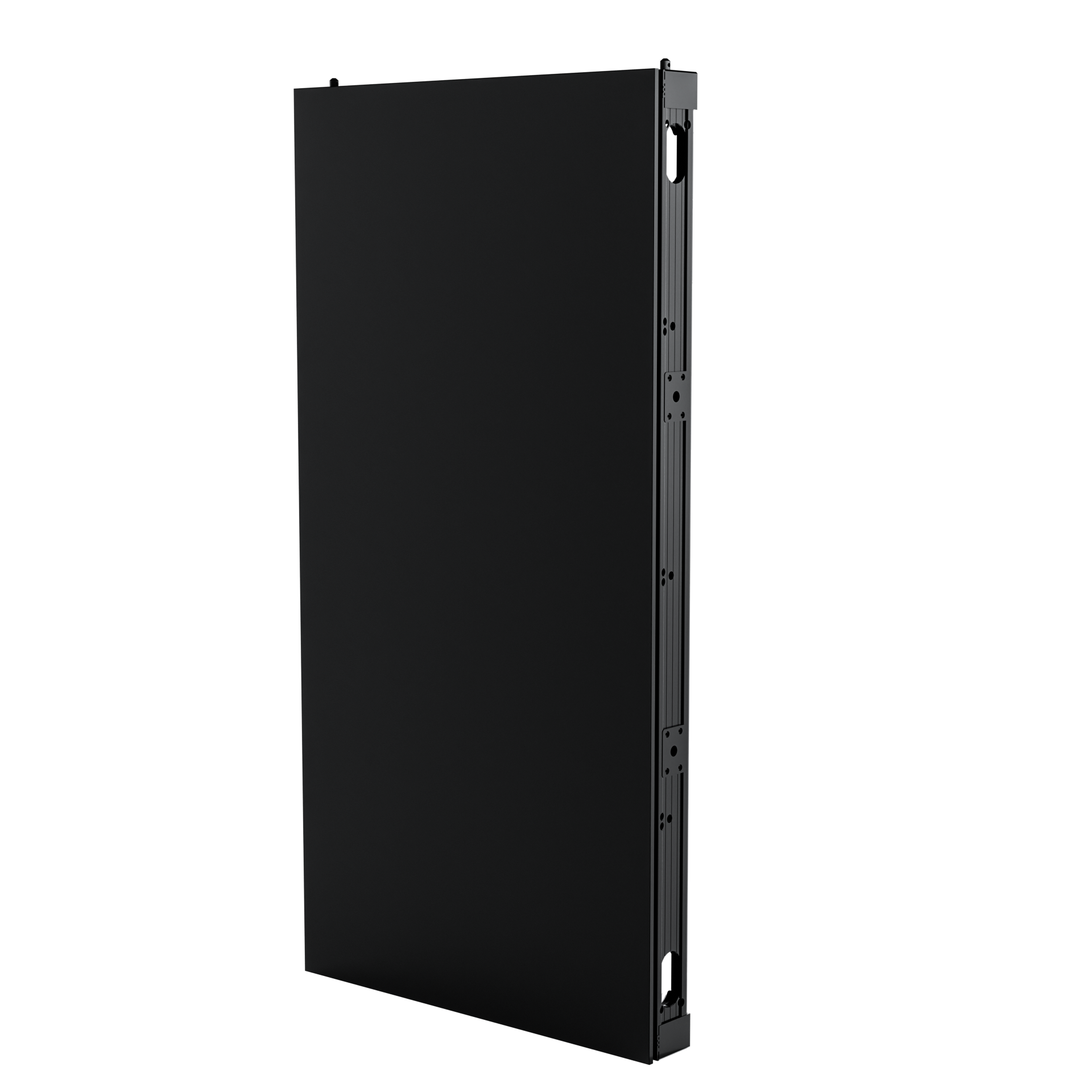

P3.9 Outdoor Fixed LED Display 500*1000mm Aluminum Profile Cabinet
For Advertising
Product Overview
The P3.9 Outdoor Fixed LED Display incorporates a high-precision
aluminum profile cabinet with an ultra-slim 87mm thickness and
lightweight 19.5kg design (500×1000mm). This system supports
flexible mixing of 500×1000mm and 500×750mm cabinets for customized
configurations while maintaining shared control box compatibility.
The push-button locking mechanism facilitates 5-second rapid
assembly, with optional arc locks available to accommodate curved
installation requirements.
Key Features
- Point By Point Calibration: Fine-tune the white balance of each lamp bead point by point to
eliminate chromatic aberration and light spots, achieving
pixel-level display consistency.
- Silent Operation: Fanless design maintains ≤40dB (A) ambient sound level for quiet
performance.
- Easy Installation & Maintenance: Optional curved locks for 10°~15° and 90° angles; modular
push-button locks for 5-second quick assembly/disassembly; optional
magnetic modules support front/rear service.
- Flexible Cabinet Design: 500x1000mm and 500x750mm cabinets can be mixed and assembled into
various shapes; shared simple mini control box saves installation
and calibration time.
- High Performance: 3840Hz refresh rate eliminates shutter shadows; 7500CD/m²
brightness ensures excellent visibility in outdoor conditions.
Technical Specifications
| Item | Specification
Parameter | Specification
Parameter | Specification
Parameter | Specification
Parameter |
| PixelPitch | 3.91mm | 4.81mm | 6.94mm | 10.41mm |
| Resolution rate | 128*64mm | 104*52mm | 72*36mm | 48*24mm |
| Module Size | 500*250*14mm | 500*250*14mm | 500*250*14mm | 500*250*14mm |
| Pixel color | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Pixel LED | SMD1921 Black led | SMD1921 Black led | SMD2727 Black led | SMD2727 Black led |
| Working voltage | DC4.6V | DC4.6V | DC4.6V | DC4.6V |
| Module Power | ≤74W | ≤60W | ≤60W | ≤60W |
| Driving IC | ICN2055 | ICN2055 | ICN2055 | ICN2055 |
| Drivingway | 1/8 | 1/13 | 1/6 | 1/2 |
| HUB | HUB(AXS-500X1000-PRO)-V1.0 | HUB(AXS-500X1000-PRO)-V1.0 | HUB(AXS-500X1000-PRO)-V1.0 | HUB(AXS-500X1000-PRO)-V1.0 |
| Material | Aluminum profile | Aluminum profile | Aluminum profile | Aluminum profile |
Cabinet Weight
(kg/Cabinet) | 19.5kg | 19.5kg | 19.5kg | 19.5kg |
| Resolution rate | 128*256Dots | 128*208Dots | 72*144Dots | 48*96Dots |
| Cabinet Size | 500*1000*87mm | 500*1000*87mm | 500*1000*87mm | 500*1000*87mm |
| Module quantity | 1*4 | 1*4 | 1*4 | 1*4 |
| Density | 65536 Dots/㎡ | 43264 Dots/㎡ | 20736 Dots/㎡ | 9216 Dots/㎡ |
| Brightness | 7500CD/m² | 7500CD/m² | 7500CD/m² | 7500CD/m² |
| Color temperature | 6000K-8000K | 6000K-8000K | 6000K-8000K | 6000K-8000K |
| View Angel | H/V:120°/120° | H/V:120°/120° | H/V:120°/120° | H/V:120°/120° |
| Non-Flatness | ＜0.2mm | ＜0.2mm | ＜0.2mm | ＜0.2mm |
| Module Interval | ＜0.2mm | ＜0.2mm | ＜0.2mm | ＜0.2mm |
| Maximal power/㎡ | ≤650W/㎡ | ≤520W/㎡ | ≤520W/㎡ | ≤520W/㎡ |
| Average Power/㎡ | ≤220W/㎡ | ≤160W/㎡ | ≤160W/㎡ | ≤160W/㎡ |
Frame frequency
| 60Hz | 60Hz | 60Hz | 60Hz |
| Refresh Frequency | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| Gray Grade | ≥13bit | ≥13bit | ≥13bit | ≥13bit |
| Working temperature | -20~50℃ | -20~50℃ | -20~50℃ | -20~50℃ |
| Protection grade | IP65 | IP65 | IP65 | IP65 |
| Maintenance | Front/Back | Front/Back | Front/Back | Front/Back |
| *Reference information, different configurations, different
parameters |
Applications
- Outdoor creative modeling
- Building entrance displays
- Park entrance signage
- Swimming pool displays
- Advertising billboards
- Playing field displays
- Outdoor activity areas
- Roadside posters
- Building exterior walls
Frequently Asked Questions
Q1: Can you accept a sample order?
A1: Yes, we encourage sample orders to test and evaluate the
quality, whether for a module or a complete screen.
Q2: Does there have any warranty?
A2: Definitely! All our products are backed by a two-year warranty.
Q3: Can I customize it?
A3: Of course. All the goods can be customized, we have a
professional product development team, welcome to customize.
Q4: Is it OK to print my logo on the products?
A4: Yes. Please inform us formally before our production and
confirm the design firstly based on our sample.
Q5: Do you have any MOQ limit for LED display order?
A5: Low MOQ, 1 square meter or a module checking is available. And
the price is negotiable for large quantities.
Q6: How can we guarantee quality?
A6: Always a pre-production sample before mass production; Always
final Inspection before shipment.
Q7: To order a display, what kind of information do I have to offer
you?
A7: You should provide width/height of the display, the main use,
the viewing distance, the scene photos, special requirements, then
I can provide you with a detailed list of quotations.
