    LSZH TPU Outdoor Fiber Optic Patch Cord with NSN-DLC Connector for 4G 5G Base Station

    Ask Lasest Price
    Brand Name : KCO
    Model Number : NSN-NSN-DLC-MM-5.0mm-x(m)
    Certification : ISO9001, RoHS
    Price : Negotiation
    Payment Terms : Western Union,T/T,L/C
    Delivery Time : 2~5 days after get payment
    • Product Details
    • Company Profile

    LSZH TPU Outdoor Fiber Optic Patch Cord with NSN-DLC Connector for 4G 5G Base Station

    4G 5G Base Station NSN LC Duplex Mutimode Outdoor IP65 Optical Fiber Patch Cable
    Description:
    • The Outdoor fiber optic patch cord is special designed to use black color LSZH or TPU cover cable to make the patch cord with water-proof connector.
    • It is designed to use for outdoor, with fuctions of water-proof, dust-proof, UV resistant, .... Suitable with harsh outdoor environment.
    • The NSN fiber optic connectors for the new generation wireless base stations pulled far (WCDMA/ TD- SCDMA/ WIMAX/ GSM) tailored products that can be meet the FTTA (fiber to the antenna) program requirements for outdoor environment conditions and adverse weather conditions.
    • They are well suited for Industrial and Aerospace and Defense applications.
    • The NSN fiber connectors, together with the support optical cable, are becoming the standard interface specified in 3G, 4G and WiMax Base Station remote radios and Fiber-to-the-Antenna applications.
    • The product however, is not limited to the above applications.
    • The NSN cable assemblies have passed tests like salt mist, vibration and shock and meet protection class IP65.
    • They are well suited for Industrial and Aerospace and Defense applications.

    NSN Water-proof Patch cord normally come with DLC (LC duplex) connector.

    The patch cable is available in Single mode (suggest to use G657A, G655 or G657B3 fiber) and Multimode (OM1, OM2, OM3, OM4, OM5 fiber).

    KOCENT OPTEC LIMITED supply OEM and ODM service for all types of fiber optic patch cord, special in outdoor field operations fiber optic patch cord such as NSN patch cord, PDLC patch cord, DLC patch cord, ODC patch cord, ODVA patch cord, RRU patch cord, TPU patch cord, CPRI patch cord, Optitap patch cord, Mini SC patch cord, and OM3, OM4 patch cord,... for FTTA, 3G 4G 5G Base Station.

    We supply all kinds of field operations fiber optic patch cord with different types of water-proof connector, use for Telecom 3G, 4G, 5G, LTE, BBU, RRU, RRH base station.

    With completed of production equipment and closed of QC process, we supply Telecom standard of goods to our customer.

    Features:
    • Standard NSN connector boot.
    • Available Single mode and Multimode
    • IP65 protection, salt-mist proof, humidity proof, dust proof, water-proof, ...
    • Silicon housing, compact design
    • Broad temperature range and wide range of indoor and outdoor Patch cables
    • Easy Operation, reliable and cost-effective Installation
    • The connector of side A is DLC, and side-B can be LC, FC, SC
    • Used for 3G 4G base station BBU, RRU, RRH, LTE
    Applications:
    • Widely used in FTTA & FTTH,
    • Used for 3G 4G 5G base station,
    • BBU, RRU, RRH, LTE, ...
    NSN fiber optic patch cable construction:

    Specification:
    ItemSMMM
    ConnectorA: NSN, B: NSN, LC, SC, FC, ST
    Fiber TypeG657A1/A2
    Fiber Count2 Cores
    ColorBule, GreenBeige,Aqua
    PolishUPC, APCPC
    Insertion Loss≤0.2dB
    Return Loss

    ≥50dB(UPC)

    ≥60dB(APC)

    ≥35dB
    Durability≥500 cycles ≤0.2dB
    Test Wavelength1310/1550nm850/1310nm
    Attenuation (max.dB)1310nm≤0.35dB/km
    1550nm≤0.25dB/km
    850nm≤3.0dB/km
    1310nm≤1.0dB/Km
    Operating Temperature-40 to +80℃

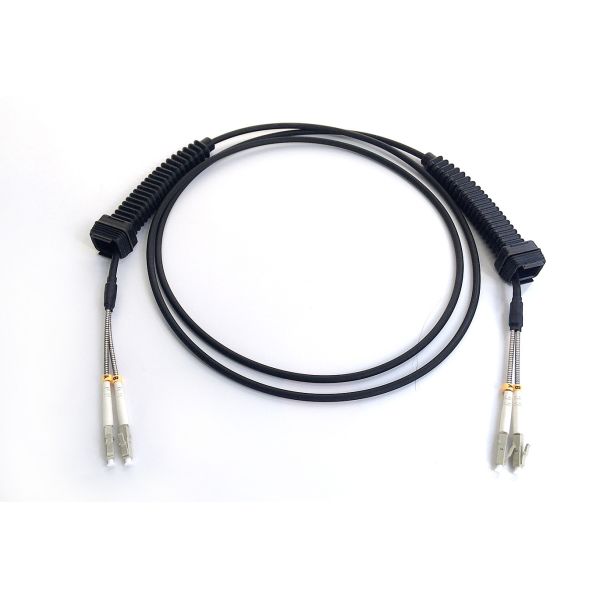

    Product photo:

    Relation products:

    OEM/ODM Service:

    If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

    Packing:

    According to Stardard Export Packing.
    Carton box, wooden box, wooden pallet.

    Shipping:
    • International express such as UPS, TNT, DHL, Fedex, etc
    • Internatioal air: CA, AA, EA, etc
    • By sea: Shenzhen port, Hongkong port, Ningbo port, Shanghai port.
