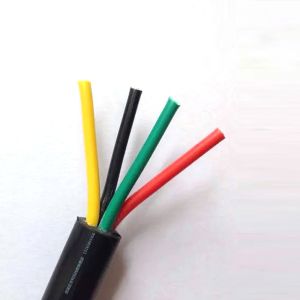

70 Degree Bare Copper PVC Insulation Wire DJXcable with CCC Approved 300V / 500V

    Buy cheap 70 Degree Bare Copper PVC Insulation Wire DJXcable with CCC Approved 300V / 500V from wholesalers

    Buy cheap 70 Degree Bare Copper PVC Insulation Wire DJXcable with CCC Approved 300V / 500V from wholesalers
    • Buy cheap 70 Degree Bare Copper PVC Insulation Wire DJXcable with CCC Approved 300V / 500V from wholesalers

    70 Degree Bare Copper PVC Insulation Wire DJXcable with CCC Approved 300V / 500V

    Ask Lasest Price
    Brand Name : DONGJIAXIN
    Model Number : 60227 IEC 53(RVV)
    Certification : CCC VDE CE CB
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram, D/P, T/T
    Supply Ability : 100KM/WEEK
    Delivery Time : 7-15 working days
    • Product Details
    • Company Profile

    70 Degree Bare Copper PVC Insulation Wire DJXcable with CCC Approved 300V / 500V

    60227 IEC 53 (RVV) 300V/500V 70C degree DJX cable with PVC Insulation and Jacket Wire CCC Approved

    ▼Performance:

    Rated voltage: 300/500V
    Rated temperature: 70 degree centigrade
    Reference Standard: GB5023.5
    Conductor: Stranded bare copper conductor 0.75-2.5mm²
    Enviornmental testing: RoHS & REACH
    Flame Retardancy Test: GB18380.12
    Uniform thickness to ensure easy stripping and cutting

    Product Parameters:

    Product Name
    RVV PVC Jacket Power Cable electric cable
    Conductor
    Bare copper
    Model
    0.5 /0.75/1.0 /1.5 /2.5/4.0/6.0 and more
    Insulation Material
    PVC
    Jacket Material
    PVC
    Rated temperature
    70°C
    Reference standard
    CE ,VDE ,CCC
    Rated voltage
    300/300V
    length
    200 metres or other customized metres
    Application
    Suitable for indoor electrical instruments power supply wire

    ▼ Characteristic:

    Heat resistance:
    The product uses high-quality PVC raw materials and the temperature resistance level reaches 70 ℃.

    Mechanical behavior:
    Polyvinyl chloride has good electrical insulation properties and mechanical properties, wear resistance, cold resistance, bending resistance, etc.

    Other features:
    Acid and alkali resistance, oil resistance, moisture resistance, mildew resistance, etc.


    Key words: #CABLE #wire #DJXcable #Dongjiaxin #Dongjiaxincable #Dongjiaxinwireandcable #ShenzhenDongjiaxin #cablemanufacturer #cablefactory #fyp

    ▼ Shipping:

    For big orders, we will ship the goods by air or by sea.

    ss section of conductor(mm²)Conductor structure(mm)Insulation thickness(mm)Approx. cable diameter(mm)Max resistance of conductor at 20℃ (Ω/km)
    0.516/0.190.62.1±0.139.0
    0.7524/0.190.62.3±0.126.0
    132/0.190.62.5±0.119.5

    Packing&Delivery:

    We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline

    is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
    The cable is supplied in wooden reels, corrugated boxes, and coils. Cable ends are sealed with BOPP self-adhesive

    tape and non-hygroscopic sealing caps to protect the cable end from moisture. The required marking shall be printed

    with a weather-proof material on the outsides of the drum according to customers' requirements.
