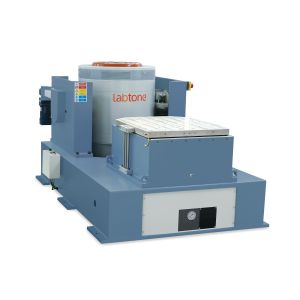

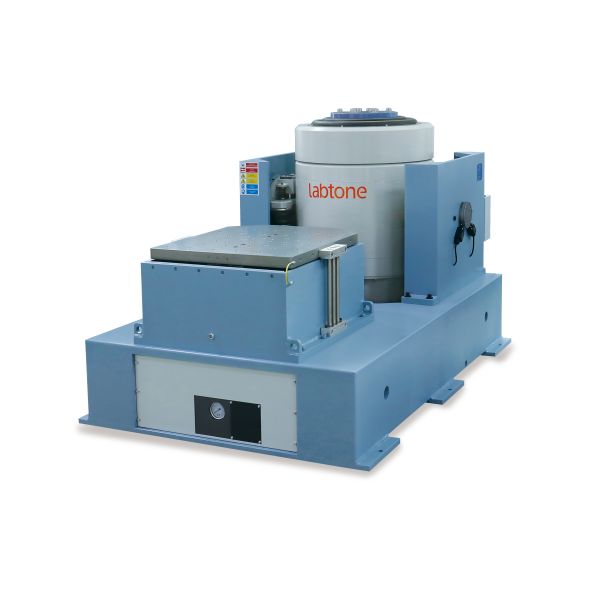

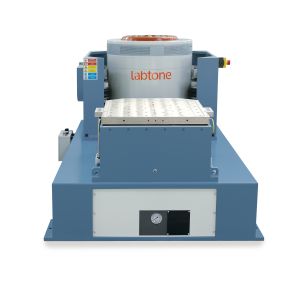

    ISTA Random Vibration Test Machine With Software Sine Random Shock

    Ask Lasest Price
    Brand Name : LABTONE
    Model Number : EV432
    Certification : CE, ISO,ISTA
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 15 Sets Per Month
    Delivery Time : 30-35 working days
    • Product Details
    • Company Profile

    ISTA Random Vibration Test Machine With Software Sine Random Shock

    Vibration Test System Description


    A complete set of vibration testing system is composed of the shaker, power amplifier and vibration measuring control system, in accordance with the relevant national and international standards (such as MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS, etc.) to provide technical support for establishing product quality inspection


    ItemConfigurationQty.
    AVibration shaker
    A11S24 shaker ((including Pneumatic Centering Controller)1 set
    B402S blower (including silencer and Duct )1 set
    Horizontal slip table HG50M1 set
    Head Expander VT50CM1 set
    BPower Amplifier
    LA10K power amplifier(including Field power supply)1 set
    C.

    Vibration Controller-Vcs-2

    (Including Hardware and Control Functions Program software CDS

    Accelerometer (Including Length 7m low noise BNC-M5 cable)1 set
    Computer(Including keyboard, mouse and monitor)0 set
    D

    Documentation

    Operation Manual, Test Report, Packing List

    		1 set
    EAccessories
    Maintenance Tools1 set
    Standard Spare Parts1 set

    Features

    1. Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability.
    2. Load center airbag with high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation. low power consumption and minimum.
    3. High efficiency D class power switching, 3-sigma peak current, harmonic distrotion.
    4. Quick self-diagnosis with safety interlock, high safety reliability.
    5. Airbag shock isolation device for vibration platform without the need of additional. foundation, perfect reprodution of vibrational wave and reduction in vibration transmittance.
    6. Horizontal and vertical expansion platforms for different applications.
    7. Simple controller operation.

    Technical Parameters:

    Shaker Specifications A30F44
    Peak Sine (Pk)3200Kg.f (32KN)
    Random (RMS)3200Kg.f (32KN) @ISO5344
    Shock (Pk)6400Kg.f (64KN) @6ms
    Usable Frequency1～3000Hz
    Maximum Displacement (p-p)100 mm
    Max. velocity2m/s
    Max. acceleration85G (833 m/s²)
    Vertical Load Support500 kg

    Body Suspension Natural

    Frequency (Thrust Axis)

    		Less than 2.5 Hz
    Armature DiameterФ440 mm
    Armature Weight32 kg

    Fundamental Resonance

    Frequency (Bare table)

    		2,500 Hz (nom.) +/- 5%
    Armature Foot-point M1016pcs PCD 200/400mm
    Stray Flux Density＜10gauss
    Allowable partial force500.N.M
    Overall dimension1270L×1000D×1230H mm
    Total WeightAbout 2000Kg
    Power Amplifier Specifications LA30K
    Rated Output Capacity30 KVA (120Vrms/300Arms)
    Signal to Noise Ratio>65 dB
    Amplifier Efficiency> 90%
    Interlock Protection600L×900D×1750H mm
    Rated Output Capacity490Kg
    Interlock Protection●Shaker Over Travel ●Shaker Over Temp ●Shaker Air Pressure ●Shaker Oil Pressure ●Shaker E Stop ●Amplifier E Stop ●Transformer Over Temp ●UART Power ●PM Over Temp ●PM Over Current ●PM Drive Power ●Input Under Voltage ●Input Over Voltage ●Output Over Voltage ●Output Over Current ●Cooling Fan ●Power Over Temp ●Logic Fault

    Head Expanders


    Size(mm): 300 x 300-1500x1500

    Material: Aluminium /Magnesium

    The expansion platform is made of magnesium alloy to provide expansion for the armature. With Reasonable and scientific design, the platform can achieve a testing frequency of 2 kHz. Specific microstructure provides reasonable vibration damping, and minimizes the amplification factor of high frequency resonance.


    Fixture / Cube


    Material: Aluminium /Magnesium
    According to the customer's actual demand, we can offer different shapes of fixture, such as three-dimensional square,L, and T shape.

    Pre-Sales Service

    * Technical consultation: test method, laboratory planning and suggestion.

    * Equipment selection: selection scheme, FAQ.

    * View our Factory.


    After-Sales Service

    * Training how to install the machine, training how to use the machine.

    * Engineers available to service machinery overseas.


    Picture details:


    20KN Force Electrodynamic Vibration Shaker With Head Expander Meets MIL - STD -810G 0

    20KN Force Electrodynamic Vibration Shaker With Head Expander Meets MIL - STD -810G 1


    2m/S Vibration Test Machine For Electrical Meet IEC 60068-2-6 1
