| Brand Name : | GUOMAT |
| Model Number : | 3B4.5X3P |
| Certification : | ISO/TS16949, ISO9001 |
| Price : | US$149.9-169.9/PC |
| Payment Terms : | L/C, D/A, D/P, Western Union |
| Supply Ability : | 1000PCS/Week |
| Delivery Time : | 5-8 Working Days |
4½" x 3 Triple Convoluted Type Air Bellows FT 44-15 DI Contitech Industrial Air Spring
Product Introduction
GUOMAT Number: 3B4.5X3P
Warranty: 1 Year
Product Name: Industrial Air Spring
Convolutions: 2
Connection Method: Screw Connection
Material: Rubber and Aluminum
Sample Order: Yes
Delivery Time: 2-8 Working Days
Type: Gas-Filled
Product OEM Number
Dunlop OEM Number: 4.5X2 / 4½" x 3
Dunlop OEM Number: SP2895 / SP 2895
Dunlop Bellow Number: A313380033 / A 3 1338 00 33
Dunlop Bellow Number: A314710B22 / A 3 141 0B 22
Dunlop Assembly Number: PNP 3059 01 08 / PNP30590108
Firetsone OEM Number: W01R584035 / W01 R58 4035 / W01-R58-4035
Contitech OEM Number: FT44-15DI / FT 44-15DI / FT 44-15 DI
Norgren OEM Number: PM/31043 / PM 31043 / PM31043
Product Dimensions
| Maximum Diameter | 125mm |
| Space Required | 140mm |
| Minimum Height | 100mm |
| Maximum Height | 200mm |
| Total Stroke | 100mm |
| Static Height | 145mm |
| Effective Area at Static Height | 65cm2 |
| Bellows Weight | 1.15kg |
Key Characteristics & Applications
Function: Provides a cushion of air that can support a load, absorb
shock, isolate vibration, or provide precise positioning.
Typical Uses:
Industrial Machinery: Vibration isolation for presses, stamping machines, and other equipment.
Vehicle Suspension: Air ride suspension for truck cabs, seats, or trailers.
Material Handling: Leveling systems for platforms or workstations.
Agricultural Equipment: Suspension on tractors or implements.
Replacement/Ordering Information
If you are replacing this part, it is crucial to obtain the
complete part number. You should also confirm:
Physical Dimensions: Consult the datasheet for the exact outside diameter, height (retracted and extended), and bolt hole configuration on the direct injection mount.
Pressure Range: Confirm the minimum and maximum operating pressure (PSI or Bar) required for your application.
Operating Environment: Consider factors such as temperature and exposure to oil or chemicals.

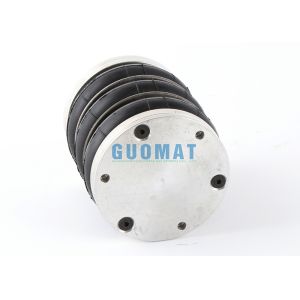

Product Image
|
