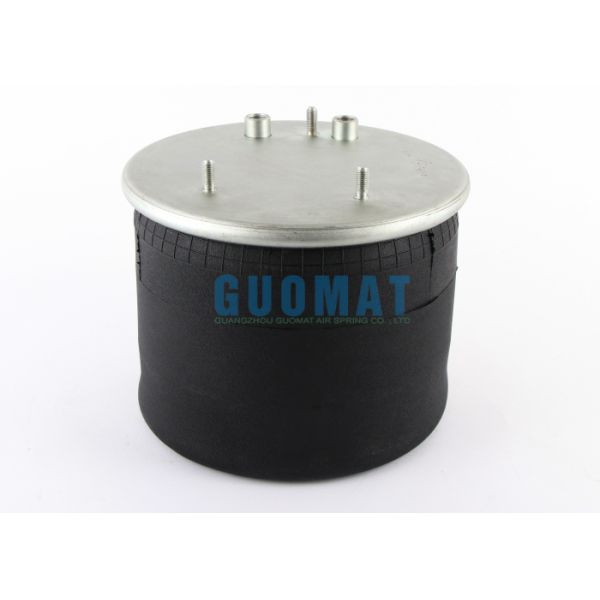

836M2K1 Contitech Truck Air Spring 1R12-711 Goodyear Air Suspension Rubber Air Bag

836M2K1 Contitech Truck Air Spring 1R12-711 Goodyear Air Suspension Rubber Air Bag

Product Description

OE Manufacturer Number

Key Data

Assembly weight 9,1 kg
Loading capacity at pressure = 5 bar 25,4 kN
Loading capacity at pressure max. = 6,5 bar 33,0 kN
Loading capacity at pressure min. = 0,3 bar 1,5 kN
Deflection (Height min.) 155 mm
Deflection (Height max.) 420 mm
Measurement d max. 315 mm
Space required (dR) 340 mm
Design height (h) 268 mm
Natural frequency 1,25 Hz
Piston volume 5,4 dm³

Basic Working Principle of Truck Air Springs
Air springs operate based on the compressibility of gas.

Load Control: When a vehicle is loaded, the distance between the axle and frame decreases, compressing the volume inside the air spring, causing the air pressure to increase. This higher air pressure generates greater support force to balance the increased load.

Shock Absorption: When the wheel encounters a bump in the road, the impact force compresses or stretches the air spring. The air within the chamber rapidly compresses or expands, absorbing and damping the impact energy, providing a smooth ride.

Height Hold: The system's height control valve automatically adjusts. When the load increases and the vehicle lowers, the valve opens, inflating the airbag to raise the vehicle to the preset height; otherwise, the air is released.

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
