ASME SA336 F5 Forged Steel Tubesheet F1 F12 F22 F21 F5 F9 F11

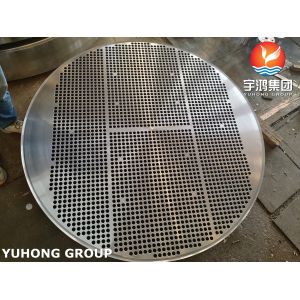

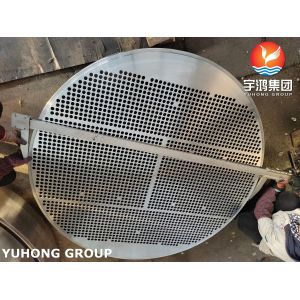

ASME SA336 F5 Forged Steel Tubesheet

ASME SA336 F5 Forged Steel Tubesheet represents a high-performance chromium-molybdenum alloy steel forging designed for critical pressure equipment operating in high-temperature, high-pressure, and corrosive environments.

When heat exchangers or pressure vessels require long-term reliable operation under harsh conditions, selecting forged tube sheets made of SA336 F5 is a very standard and reliable choice.

Advantages

1. Excellent high-temperature strength and creep resistance

2. Superior resistance to hydrogen corrosion

3. Inherent structural integrity and reliability of forgings

4. Excellent combination of mechanical properties

5. Superior machinability and service performance

SA336 Grade F5 Mechanical properties

Yield Rp0.2 (MPa)	Tensile Rm (MPa)	Impact KV/Ku (J)	Elongation A (%)	Reduction in cross section on fracture Z (%)	As-Heat-Treated Condition	Brinell hardness (HBW)
831 (≥)	636 (≥)	41	44	24	Solution and Aging, Annealing, Ausaging, Q+T,etc	342

SA336 Physical properties

Temperature (°C)	Modulus of elasticity (GPa)	Mean coefficient of thermal expansion 10-6/(°C) between 20(°C) and	Thermal conductivity (W/m·°C)	Specific thermal capacity (J/kg·°C)	Specific electrical resistivity (Ω mm²/m)	Density (kg/dm³)	Poisson's coefficient, ν
44	-	-			0.33	-
633	595	-	23.3	142		-
716	-	22	42.2			413	223

Application:

1. Petroleum Refining and Petrochemical Industry: Hydrotreating Reactors, High-Pressure Heat Exchangers

2. Chemical and Coal Chemical Industries: Ammonia Synthesis and Methanol Plants, Coal Liquefaction and Gasification Plants

3. Power Industry: High-Pressure Boiler Feedwater Heaters, Nuclear Power Equipment: Certain high-temperature and high-pressure heat exchangers used in nuclear power plant auxiliary systems.

4. Other Industrial Sector: SA336 F5 may be selected as the tube sheet, end cap, or flange material for any high-pressure process requiring long-term stable operation of equipment within a temperature range of 400°C to 600°C.
