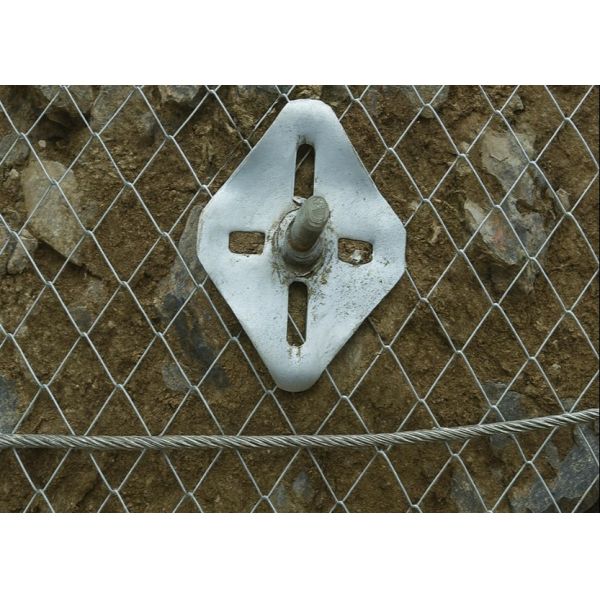

High Tensile Strength Steel Wire Mesh TECCO Mesh
High tensile strength steel wire mesh is a specially engineered
mesh product with high tensile strength and corrosion resistance.
It can withstand large impacts caused by falling rocks or
landslides, while providing a long service life. It is adaptable to
different heights and irregular slope structures thanks to its
outstanding flexibility. The openness of the mesh will not affect
the growth of vegetation. High tensile strength steel wire mesh has
been widely used for slope conservation, landslide protection,
rockfall protection, valance and debris flow protection, and other
protections from natural disasters.
It is made of high-strength and corrosion-resistant steel wire with
a tensile strength of 1770Mpa, 1370Mpa, or 900Mpa, which is woven
using precision machinery. Its hole type is often Diamond or square
in structure. Common specifications include Tecco G65 / 3, Tecco
G80 / 4, Tecco G45 / 2, etc. The mesh specifications feature circle
diameters of 65mm, 80mm, 45mm, 40mm, 60mm, 55mm, etc. Our equipment
has been continuously improved and can now handle the production
High tensile strength steel wire mesh with different hole types and
different mesh sizes. All products have undergone strict testing
and can provide free samples for you to test as desired.
Common materials and specifications of High Tensile Strength Steel
Wire Mesh
-Wire Materials:
1.) Zinc 95% Aluminum 5%-10% Alloy Steel Wire (Zinc Coating
≥150gr/m2), Wire Resistance ≥1770Mpa, Mesh Ending Knotted (
≥1.5laps )
2.) Stainless Steel 304 Wire, Wire Resistance ≥1770Mpa, Mesh Ending
Knotted ( ≥1.5laps )
3.) Heavily Zinc Coating Steel Wire (Zinc Coating ≥200gr/m2), Wire
Resistance ≥1370Mpa, Mesh Ending Knotted (≥1.5 laps )
4.) Heavily Zinc Coating Steel Wire (Zinc Coating ≥200gr/m2), Wire
Resistance ≥900Mpa, Mesh Ending Knotted ( ≥1.5 laps )
Other wire materials are also available.
-Specifications:
Wire Diameter: 3.00mm, 4.0mm, 2.0mm, 2.2mm,4.4mm etc
Mesh Sizes: 83*143mm, 102*177mm, 62*95mm, 65*65mm, 60*60mm,
55*55mm, 50*50mm etc
Mesh Types: Rhomboid Hole or Square Hole.
Mesh Height: 10mm, 30mm, etc
Mesh Ending: Knotted Edge, Knuckle Edge, Twist Edge, Ferrule Edge,
etc.
Roll Width: 3.5m, 2.9m, 2.5m, 1.0m etc
Roll Length: 10m, 20m, 30m etc
