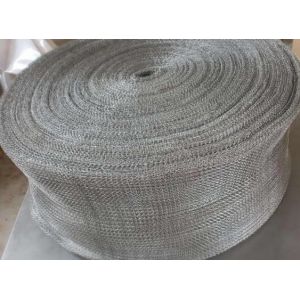

Single, Double, Flat, Compressed & Multi-Layer Titanium Knitted
Weaving Wire Mesh
Titanium Knitting Wire Mesh for gas-liquid and foam filtration is a
corrosion-resistant mesh formed by interlooping fine titanium wires
into a flexible, compressible structure. It is commonly used in
demisters, mist eliminators, and foam breakers. Typical
specifications include wire diameters from 0.08 mm to 0.3 mm, mesh
widths from 40 mm to 600 mm, and lengths up to 30 meters per roll.
The mesh can be single- or multi-layered, with densities ranging
from 128 kg/m³ to 600 kg/m³, depending on the separation efficiency
required.
Weaving Style
- Single Knitting Mesh: Made from a single wire. Light and used for
basic filtration or shielding.
- Double Knitting Mesh: Two wires knitted together. Thicker and
stronger, ideal for high-pressure filters.
- Flat Knitted Mesh: Woven into flat strips. Used in demisters,
gas-liquid separation, and EMI shielding.
- Compressed Knitted Mesh: Mesh is compacted into blocks, rings, or
discs for filters and structured packing.
- Layered Knitting Mesh: Multiple layers stacked for better
filtration. Used in air/oil filters and silencers.
Common Specifications
- Material: Pure Titanium Grade 1 or Grade 2
- Wire Diameter: 0.08 mm – 0.3 mm
- Mesh Width: 40 mm – 600 mm
- Roll Length: 5 m – 30 m per roll
- Mesh Thickness: 0.3 mm – 1.2 mm (single layer)
- Layer Structure: Single, double, or multi-layered (up to 9 layers)
- Density: 128 kg/m³ – 600 kg/m³
- Opening Size: Variable, generally 1 mm – 4 mm (approximate due to
looped structure)
- Shape Options: Flat mesh, gaskets, pads, rolls, or cylindrical
cartridges
- Operating Temperature: Up to 800°C
- Filtration Efficiency: 98% – 99.8% for gas-liquid separation
- Surface Treatment: As-drawn or annealed
- Compression Rate: Up to 70% without deformation
- Standard Packing: Rolls or cut-to-size sheets in PE film or cartons
- These values can be customized for industrial demisters, foam
breakers, catalytic carriers, and shielding components in
aggressive chemical or high-temperature environments.
Titanium Knitted Mesh for Medical Devices
Densely knitted titanium mesh rolls are primarily designed for
medical device components. This mesh features finer loops with a
wire diameter of around 0.08 to 0.15 mm, widths of approximately 50
to 200 mm, and high-density weaving. Its primary use is in medical
implants and filtration components due to its biocompatibility,
durability, and outstanding corrosion resistance.
Titanium Knitted Mesh for Industrial Gas-Liquid Separation
Titanium knitted mesh with clearly visible loops and uniform
openings of approximately 1 to 2 mm is ideal for industrial
gas-liquid separation. Typically, wire diameters range from 0.1 to
0.2 mm. This structure is well-suited for industrial scenarios
requiring efficient gas-liquid separation, mist elimination, or
foam breaking due to its inherent compressibility and effective
filtering efficiency.
Titanium Knitted Mesh for Aerospace Filtration
Titanium knitted mesh with an open-loop structure is specifically
designed for aerospace filtration systems. The wire diameter
generally ranges from 0.08 mm to 0.25 mm, featuring wider apertures
of approximately 2 to 4 mm. This type of mesh is valued in
aerospace applications for its lightweight construction, high
strength-to-weight ratio, and exceptional resistance to extreme
temperatures.
