| Product name | Deformed Rebar Steel |
Standard | ASTM DIN GB ISO JIS BA ANSI |
Diameter | 6mm-40mm or as required |
Certificate | ISO9001:2008; CE |
Surface | 1. Galvanized
2. PVC,Black and color painting
3. Transparent oil,anti-rust oil
4. According to clients requirement |
Sales mode | Factory direct sales |
Delivery terms | FOB, CIF, CFR |
Delivery condition | Sea transportation |
Package | Standard export waterproof package, suit for all kinds of
transport, or as required |
HRB 400 steel rebar is a Chinese standard hot rolled ribbed bar (GB/T 1499.2) with a
minimum yield strength of 400 MPa, widely used in China and
international projects adopting Chinese standards. This grade
belongs to the third generation high strength rebars, incorporating
microalloying elements (vanadium, niobium) or thermo mechanical
treatment to achieve a balance of strength, ductility, and

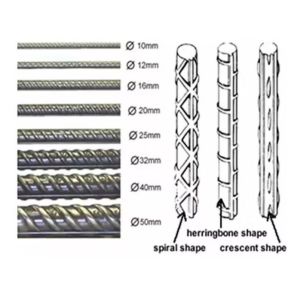

toughness. HRB 400 rebars feature a ribbed surface with three
longitudinal ribs and periodic transverse ribs, designed to provide
a bond strength 20% higher than conventional plain bars, the a well
as meet the requirement of minimum elongation at maximum force (Agt
≥7.5%) for seismic resistance. The manufacturing process involves
controlled rolling and cooling to form a fine grained ferrite
pearlite microstructure, enhancing mechanical properties without
excessive carbon content (typically 0.22–0.25%). These rebars are
commonly used in medium to high rise buildings, bridges, and
infrastructure projects in China, the a well as exported to
Southeast Asia, Africa, and the Middle East. Key advantages include
reduced material usage compared to lower strength grades (e.g., HRB
335), the a well as improved fire resistance due to their higher
thermal stability. Compliance with GB/T 1499.2 requires rigorous
testing, including chemical analysis (ensuring sulfur and
phosphorus content ≤0.045%), tensile tests (ultimate tensile
strength ≥540 MPa), the a well as bend tests (bending 180° around a
3D mandrel for 25mm diameter bars). HRB 400 rebars are often coated
with epoxy or zinc based paints for coastal projects, the a well as
used in precast concrete elements where precise dimensional control
(diameter tolerance ±0.5mm) is critical for joint connections.
What does Steel Rebars hrb400 mean
HRB400 Chinese name is hot rolled ribbed bar, diameter is 6 ~
100mm. National mandatory standard GB1499.2 -- 2007 "reinforced
concrete with hot rolled ribbed bar" from March 1, 2008 began to
implement. The standard yield strength of the steel bar HRB400 is
400MPa, and the design value is 360MPa.
1, HRB is hardness value, means hot-Rolled ribbed -steel Bar Hot
rolled Ribbed bar, refers to the Rockwell hardness measurement (HR)
class B scale, represents the hardness of the steel being measured
how many HRB, the number after is the yield strength of the bar.
2, Third grade Rebars (HRB400 above) is also threaded Steel Rebars,
similar to the diameter of Second grade Steel Rebars, higher
strength, but the price is also high, has been gradually promoted.
3. Secondary steel bar (HRB335) is threaded steel bar, the diameter
of 12-25 is the most common, used in beams, columns, shear walls
and so on. No matter how large the diameter is, it is rarely used
in civil and industrial construction. It is often used in mass
concrete, such as hydraulic engineering.
4, The first grade steel bar (HPB300) is generally smooth steel,
belonging to the hot rolled round steel bar, commonly known as wire
rod, 6-12 rounds of the most common. In architecture, it is often
used to make stirrups, distribution bars of plates, stirrups, wall
reinforcement and so on.
How to choose reinforcement
1. Check the surface quality, finish and color of the steel bar.
The surface of the steel bar should be smooth and neat, uniform
color, bright and uniform dark blue gray, there should be no
cracks, scars and folding visible defects, the end of the steel bar
should be basically circular. The end face of inferior steel bar is
often elliptical, the surface color is not uniform, rough and
uneven, and even there are scars, cracks, folding and other
defects. The iron oxide skin produced by rolling is knocked off or
wiped.
2. Check the mark, label and quality certificate of the steel bar.
The steel bar should be rolled on the surface of the brand mark,
also should be rolled in turn with the manufacturer name (or
trademark) and diameter (mm) number. According to the standard
provisions of the packaging of steel bars should be hung with
signs, signs should indicate the enterprise name, product name,
implementation standards, product brand, specifications, lot
number, and indicate the production license number and QS logo.
According to the standard provisions, the product should also be
accompanied by a certificate of quality, its main content includes
enterprise name, trademark, product name, implementation standards,
product brand, specifications, batch number, weight, product
performance inspection data, production license number, QS logo,
address and other content, and stamped with the special seal of
quality certification.
Product Parameters
| Product Name | HRB400/HRB400E Deformed Steel Rebar |
| Standard | EN/DIN/JIS/ASTM/BS/ASME/AISI, etc. |
| Common Round Bar Specifications | 3.0-50.8 mm, Over 50.8-300mm |
| Flat Steel Common Specifications | 6.35x12.7mm, 6.35x25.4mm, 12.7x25.4mm |
| Hexagon Bar Common Specifications | AF5.8mm-17mm |
| Square Bar Common Specifications | AF2mm-14mm, AF6.35mm, 9.5mm, 12.7mm, 15.98mm, 19.0mm, 25.4mm |
| Length | 1-6meters, Size Accept Custom |
| Diameter(mm) | Hot Rolling Round Bar | 25-600 | Cold Rolling Square Bar | 6-50.8 |
| Hot Rolling Square Bar | 21-54 | Cold Rolling Hexagon Bar | 9.5-65 |
| Cold Rolling Round bar | 6-101.6 | Forged Rebar | 200-1000 |
| Surface Process | Bright, Polished, Black |
| Other Services | Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing,
Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small
Machining, etc. |
Chemical Composition
| Carbon | Silicon | Manganese | Sulphur | Phosphorus |
| 0.25% | 0.80% | 1.6% | 0.045% | 0.045% |
Mechanical Properties
| Chinese Rebar Code | Yield Strength (Mpa) | Tensile Strength (Mpa) | Carbon Content |
| HRB400, HRBF400, HRB400E, HRBF400E | 400 | 540 | ≤0.25 |
| HRB500, HRBF500, HRB500E, HRBF500E | 500 | 630 | ≤0.25 |
| HRB600 | 600 | 730 | ≤ 0.28 |
Scope of Application
Widely used in houses, bridges, roads, especially railways and
other civil engineering.
